23516 - Toro 18" Walk-Behind Aerator (SN: 314000001 - 314999999) (2014) FRAME ASSEMBLY Parts Diagram

18" Walk-Behind Aerator

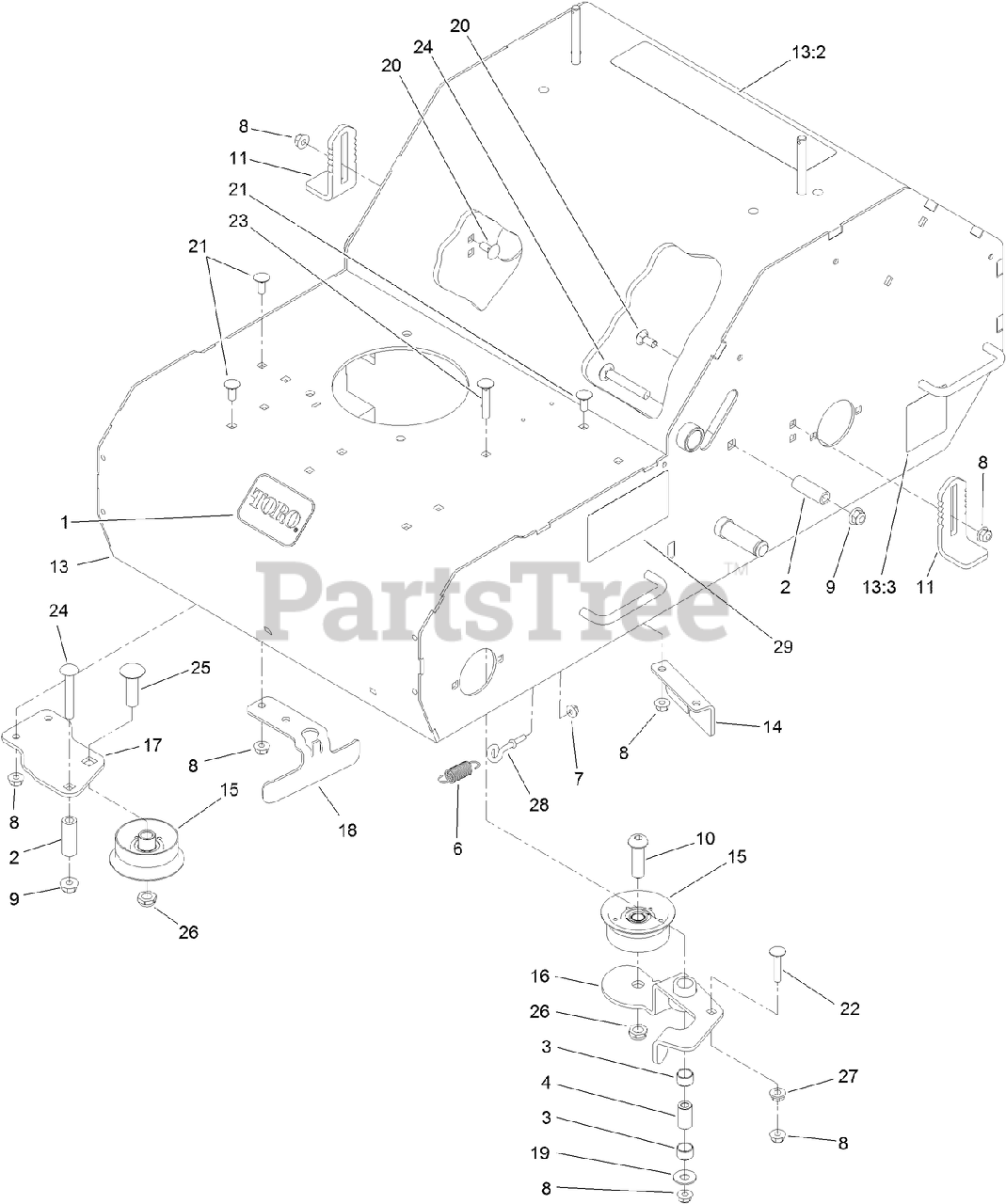

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 70-2200

DECAL

$6.49

$

Usually ships in 3-6 days

0

2

Toro 95-6448

SPACER

$5.99

$

Usually ships in 3-6 days

0

3

Toro 103-6111

BEARING

$7.99

$

In Stock, Qty 6

0

4

Toro 103-7108

BUSHING-ARM, IDLER

$26.99

$

Usually ships in 3-6 days

0

6

Toro 104-0869

SPRING

$13.99

$

In Stock, only 2 left!

0

7

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 108-1993

SCREW-HSBH

$21.99

$

Usually ships in 3-6 days

0

11

Toro 116-9886

STOP-DEPTH

$14.99

$

Usually ships in 3-6 days

0

13

Toro 125-3855

FRAME ASM

$1056.99

$

Usually ships in 3-6 days

0

13:2

Toro 121-2009

DECAL-WARNING, AERATOR

$10.99

$

Usually ships in 3-6 days

0

13:3

Toro 121-6150

DECAL-WARNING

$2.99

$

Usually ships in 3-6 days

0

14

Toro 125-3941-03

BRACKET-MOUNT, CABLE

$

$

Currently unavailable

15

Toro 127-4068

PULLEY-IDLER, FLAT

$62.99

$

Usually ships in 3-6 days

0

16

Toro 130-2128-03

ARM-IDLER

$90.99

$

Usually ships in 3-6 days

0

17

Toro 130-2131-03

BRACKET-MOUNT, PULLEY

$

$

Currently unavailable

18

Toro 130-2132-03

GUIDE-BELT

$17.99

$

Usually ships in 3-6 days

0

19

Toro 1126

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

20

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

21

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

22

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 13

0

23

Toro 3230-5

SCREW-CARR

$0.99

$

In Stock, Qty 20+

0

24

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

25

Toro 3233-30

SCREW-CARR

$10.99

$

Usually ships in 3-6 days

0

26

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

27

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Toro 611243

BOLT-EYE

$20.99

$

Usually ships in 3-6 days

0

29

Toro 130-2155

DECAL-LIFT LOCK

$

$

Currently unavailable
