23516 - Toro 18" Walk-Behind Aerator (SN: 313000001 - 313999999) (2013) TRANSMISSION AND WHEEL ASSEMBLY Parts Diagram

18" Walk-Behind Aerator

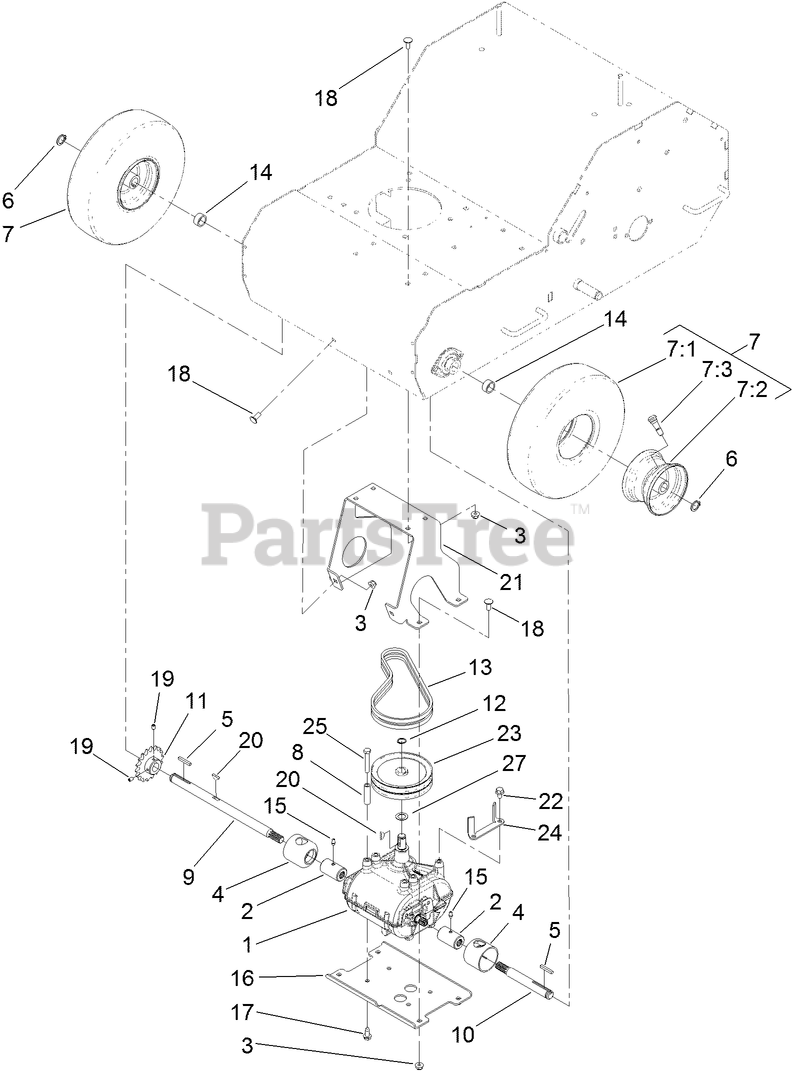

TRANSMISSION AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 120-3695

TRANSMISSION
(Superseded to 131-5740)

$616.99

$

Usually ships in 3-6 days

0

2

Toro 1-323680

COUPLER

$41.99

$

In Stock, only 2 left!

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Toro 51-4220

GUARD-COUPLER

$19.99

$

In Stock, only 1 left!

0

5

Toro 92-2649

KEY-SQUARE

$4.49

$

Usually ships in 3-6 days

0

6

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

7

Toro 120-3550

WHEEL ASM

$118.99

$

In Stock, only 1 left!

0

7:1

Toro 121-6081

TIRE

$79.99

$

Usually ships in 3-6 days

0

7:2

Toro 121-6082

WHEEL-RIM

$54.99

$

Usually ships in 3-6 days

0

7:3

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

8

Toro 95-6327

SPACER

$

$

Not available

9

Toro 121-4878

SHAFT-TRANSMISSION

$130.99

$

Usually ships in 3-6 days

0

10

Toro 121-4879

SHAFT-TRANSMISSION

$127.99

$

Usually ships in 3-6 days

0

11

Toro 121-4901

SPROCKET, #40 18T

$

$

Not available

12

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

13

Toro 121-4907

BELT-V, TRACTION

$30.99

$

Usually ships in 3-6 days

0

14

Toro 121-2045

SPACER-WHEEL
(Superseded to 83-0730)

$13.99

$

Usually ships in 3-6 days

0

15

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

16

Toro 125-3823-03

MOUNT-TRANSMISSION, LOWER

$

$

Currently unavailable

17

Toro 9264964

SCREW-HWH, THREAD CUT

$1.49

$

Usually ships in 3-6 days

0

18

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Toro 3245-41

SCREW-HSH

$2.99

$

In Stock, only 3 left!

0

20

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

21

Toro 125-3938-03

CHANNEL-MOUNT, TRANSMISSION

$

$

Currently unavailable

22

Toro 3234-30

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

23

Toro 127-4003

SHEAVE

$156.99

$

Usually ships in 3-6 days

0

24

Toro 125-3928-03

GUIDE-BELT

$

$

Not available

25

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

27

Toro 108-0015

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0
