23516 - Toro 18" Walk-Behind Aerator (SN: 313000001 - 313999999) (2013) TINE WHEEL ASSEMBLY Parts Diagram

18" Walk-Behind Aerator

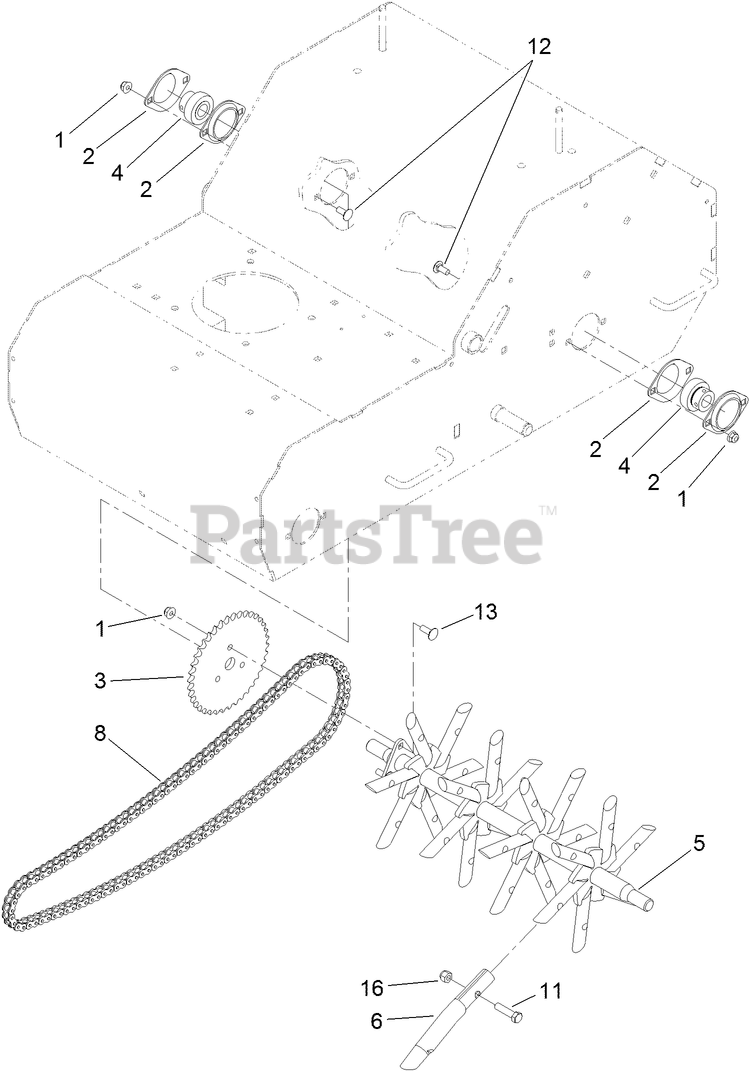

TINE WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

2

Toro 105-9714

FLANGE-BEARING

$10.99

$

In Stock, only 3 left!

0

3

Toro 121-6224

SPROCKET

$

$

Not available

4

Toro 120-9350

BEARING-LOCK, COLLAR

$48.99

$

In Stock, only 4 left!

0

5

Toro 125-3852-01

WHEEL-TINE

$539.99

$

Usually ships in 3-6 days

0

6

Toro 121-4894

TINE-CORING
(Superseded to 126-2143)

$11.99

$

In Stock, Qty 20+

0

8

$

$

Not available

11

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Toro 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0
