23516 - Toro 18" Walk-Behind Aerator (SN: 313000001 - 313999999) (2013) IDLER SPROCKET AND WEIGHT ASSEMBLY Parts Diagram

18" Walk-Behind Aerator

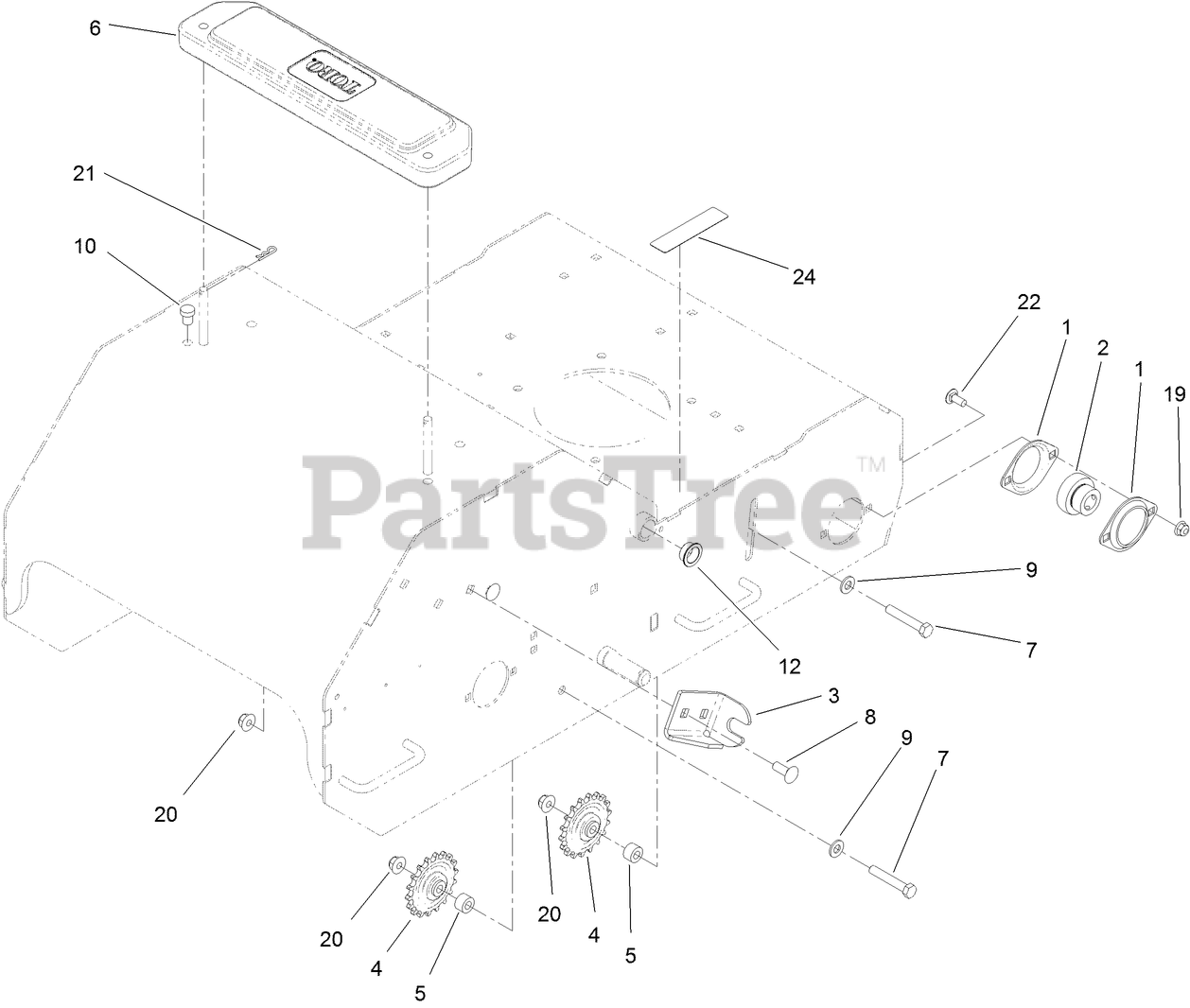

IDLER SPROCKET AND WEIGHT ASSEMBLY Parts Diagram

  • Title

1

Toro 105-9714

FLANGE-BEARING

$10.99

$

In Stock, only 3 left!

0

2

Toro 120-9350

BEARING-LOCK, COLLAR

$48.99

$

In Stock, only 4 left!

0

3

Toro 121-4880

BRACKET-MOUNT, CABLE

$29.99

$

Usually ships in 3-6 days

0

4

Toro 121-4915

SPROCKET-IDLER

$54.99

$

In Stock, Qty 20+

0

5

Toro 121-4916

SPACER-SPROCKET

$19.99

$

Usually ships in 3-6 days

0

6

Toro 112-7059-01

WEIGHT-CAST

$233.99

$

Usually ships in 3-6 days

0

7

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 105-4740

BUMPER-RUBBER

$12.99

$

Usually ships in 3-6 days

0

12

Toro 108519

BUSHING-BRONZE

$15.99

$

In Stock, only 4 left!

0

19

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

22

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

24

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
