23515 - Toro 21" Walk-Behind Aerator (SN: 400000000 - 410049999) Engine Frame Assembly Parts Diagram

21" Walk-Behind Aerator

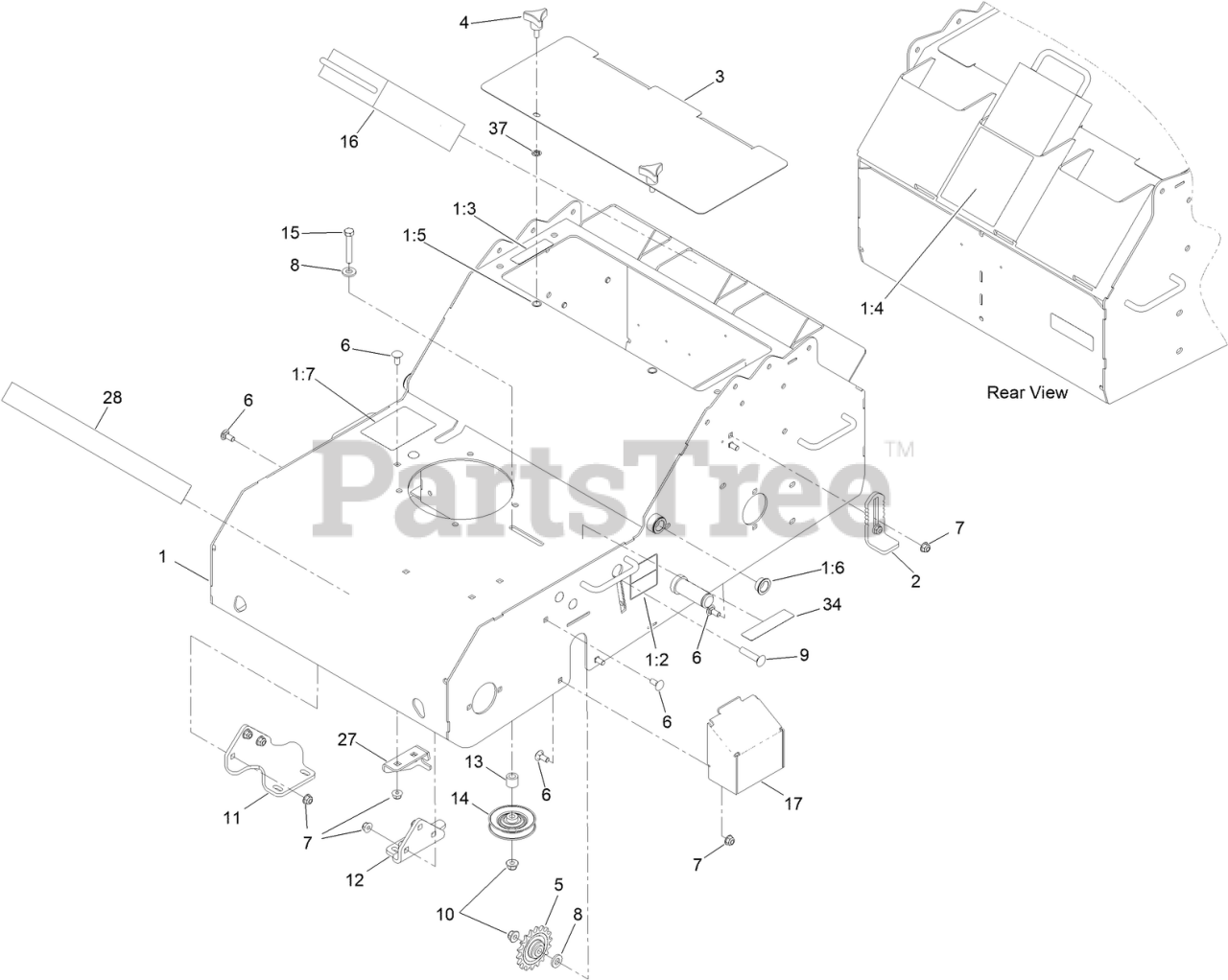

Engine Frame Assembly Parts Diagram

  • Title
1

Toro 126-5102

FRAME ASM

$996.99

$

Usually ships in 3-6 days

0

1:2

Toro 121-6150

DECAL-WARNING

$2.99

$

Usually ships in 3-6 days

0

1:3

Toro 119-0217

DECAL-DANGER

$5.49

$

Usually ships in 3-6 days

0

1:4

Toro 126-0651

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

1:5

Toro 32148-7

NUT-CLINCH

$3.99

$

Usually ships in 3-6 days

0

1:6

Toro 108519

BUSHING-BRONZE

$15.99

$

In Stock, Qty 9

0

1:7

Toro 126-1209

DECAL-SERVICE AID

$13.99

$

Usually ships in 3-6 days

0

2

Toro 116-9886

STOP-DEPTH

$14.99

$

Usually ships in 3-6 days

0

3

Toro 126-0974-01

COVER-ACCESS

$42.99

$

Usually ships in 3-6 days

0

4

$6.99

$

Usually ships in 3-6 days

0

5

Toro 121-4915

SPROCKET-IDLER

$56.99

$

In Stock, Qty 20+

0

6

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 87-7480

WASHER

$1.49

$

In Stock, only 1 left!

0

9

Toro 3231-29

SCREW-CARR

$7.99

$

In Stock, only 2 left!

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 121-4948-03

BRACKET-MOUNT AXLE, RH

$30.99

$

Usually ships in 3-6 days

0

12

Toro 121-4949-03

BRACKET-MOUNT AXLE, LH

$30.99

$

Usually ships in 3-6 days

0

13

Toro 121-6087

BUSHING-IDLER

$11.99

$

Usually ships in 3-6 days

0

14

Toro 62-4530

PULLEY

$39.99

$

In Stock, only 2 left!

0

15

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 121-6080

WEIGHT-AERATOR

$280.99

$

Usually ships in 3-6 days

0

17

Toro 121-1981-01

COVER-TRANSAXLE

$56.99

$

Usually ships in 3-6 days

0

27

Toro 121-6056

BRACKET-MOUNTING, CABLE

$21.99

$

Usually ships in 3-6 days

0

28

$20.99

$

Usually ships in 3-6 days

0

34

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

37

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0
