23515 - Toro 21" Walk-Behind Aerator (SN: 314000001 - 314999999) (2014) TINE ASSEMBLY Parts Diagram

21" Walk-Behind Aerator

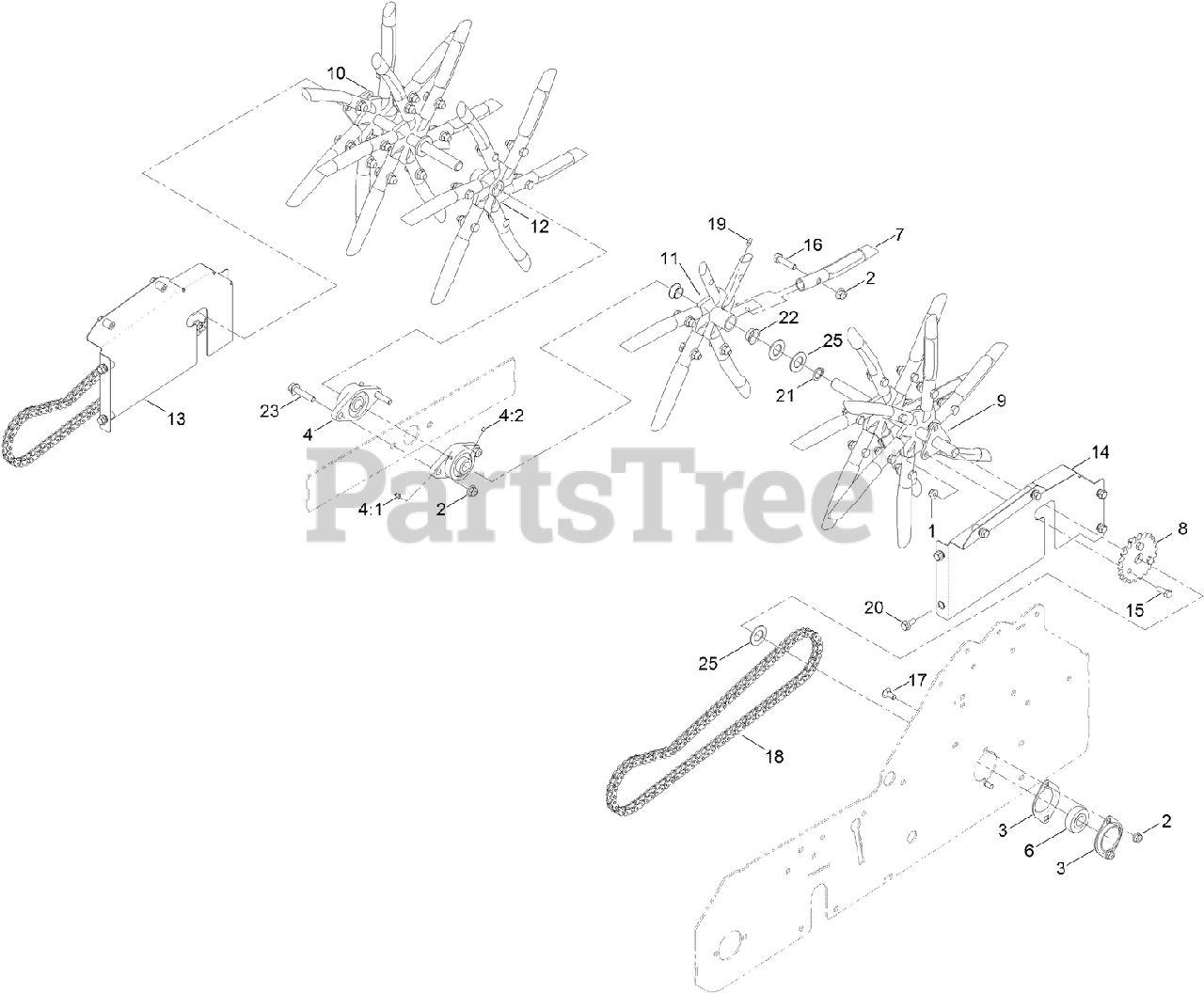

TINE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

2

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 105-9714

FLANGE-BEARING

$10.99

$

In Stock, only 3 left!

0

4

Toro 106-7126

BEARING-FLANGE

$85.99

$

Usually ships in 3-6 days

0

4:1

Toro 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

4:2

Toro 3245-35

SCREW-SET, HSH

$0.99

$

In Stock, Qty 10

0

6

Toro 120-9350

BEARING-LOCK, COLLAR

$48.99

$

In Stock, only 4 left!

0

7

Toro 121-4894

TINE-CORING
(Superseded to 126-2143)

$11.99

$

In Stock, Qty 20+

0

8

Toro 116-9896

SPROCKET-#40 22T

$63.99

$

Usually ships in 3-6 days

0

9

Toro 121-4930

WHEEL-TINE, LH

$365.99

$

Usually ships in 3-6 days

0

10

Toro 121-6072

WHEEL-TINE, RH

$365.99

$

Usually ships in 3-6 days

0

11

Toro 121-6099

TINE-SPYDER
(Superseded to 121-6099-01)

$196.99

$

Usually ships in 3-6 days

0

12

Toro 121-6096

TINE-SPYDER

$196.99

$

Usually ships in 3-6 days

0

13

Toro 126-1204

RH CHAIN GUARD ASM

$63.99

$

Usually ships in 3-6 days

0

14

Toro 126-1206

LH CHAIN GUARD ASM

$63.99

$

Usually ships in 3-6 days

0

15

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

18

Toro 121-6107

CHAIN-DRIVE

$47.99

$

Usually ships in 3-6 days

0

19

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

20

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

21

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

22

Toro 108519

BUSHING-BRONZE

$15.99

$

In Stock, only 4 left!

0

23

Toro 3234-19

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

25

Toro 69-8930

WASHER

$2.99

$

In Stock, only 4 left!

0
