23515 - Toro 21" Walk-Behind Aerator (SN: 312000001 - 312999999) (2012) TINE ASSEMBLY Parts Diagram

21" Walk-Behind Aerator

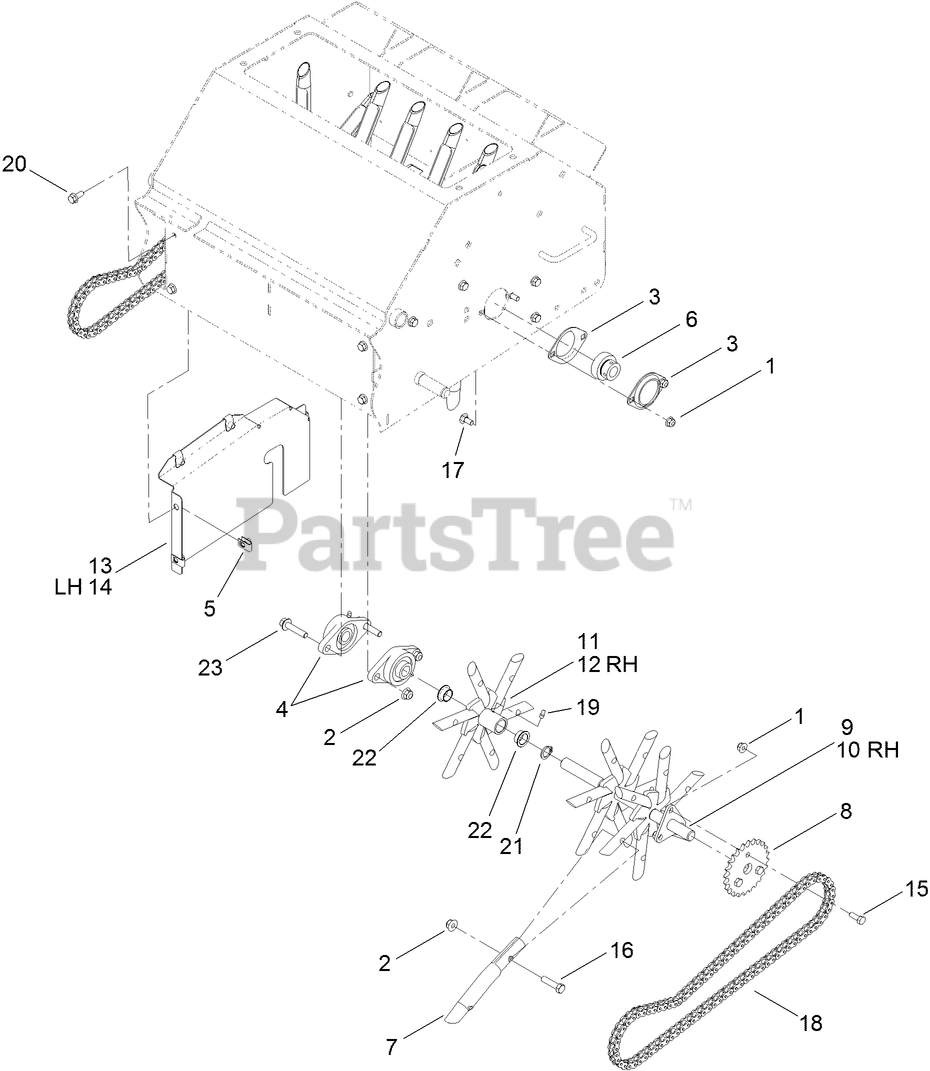

TINE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 105-9714

FLANGE-BEARING

$10.99

$

In Stock, only 3 left!

0

4

Toro 106-7126

BEARING-FLANGE

$85.99

$

Usually ships in 3-6 days

0

5

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

6

Toro 120-9350

BEARING-LOCK, COLLAR

$48.99

$

In Stock, only 4 left!

0

7

Toro 121-4894

TINE-CORING
(Superseded to 126-2143)

$11.99

$

In Stock, Qty 20+

0

8

Toro 121-4900

SPROCKET

$

$

Not available

9

Toro 121-4930-01

TINE-WHEEL, LH
(Superseded to 121-4930)

$376.99

$

Usually ships in 3-6 days

0

10

Toro 121-6072-01

TINE-WHEEL, RH
(Superseded to 121-6072)

$376.99

$

Usually ships in 3-6 days

0

11

Toro 121-6099-01

SPYDER TINE ASM

$202.99

$

Usually ships in 3-6 days

0

12

Toro 121-6096-01

SPYDER TINE ASM
(Superseded to 121-6096)

$202.99

$

Usually ships in 3-6 days

0

13

Toro 121-6077-01

GUARD-CHAIN, RH

$

$

Not available

14

Toro 121-6078-01

GUARD-CHAIN, LH

$

$

Not available

15

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

18

Toro 121-6107

CHAIN-DRIVE

$51.99

$

Usually ships in 3-6 days

0

19

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

20

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

21

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

22

Toro 108519

BUSHING-BRONZE

$15.99

$

In Stock, Qty 9

0

23

Toro 3234-19

SCREW-HHF

$3.49

$

In Stock, Qty 12

0
