23513 - Toro 18" Dethatcher (SN: 400000000 - 999999999) TRANSPORT-WHEEL ASSEMBLY Parts Diagram

18" Dethatcher

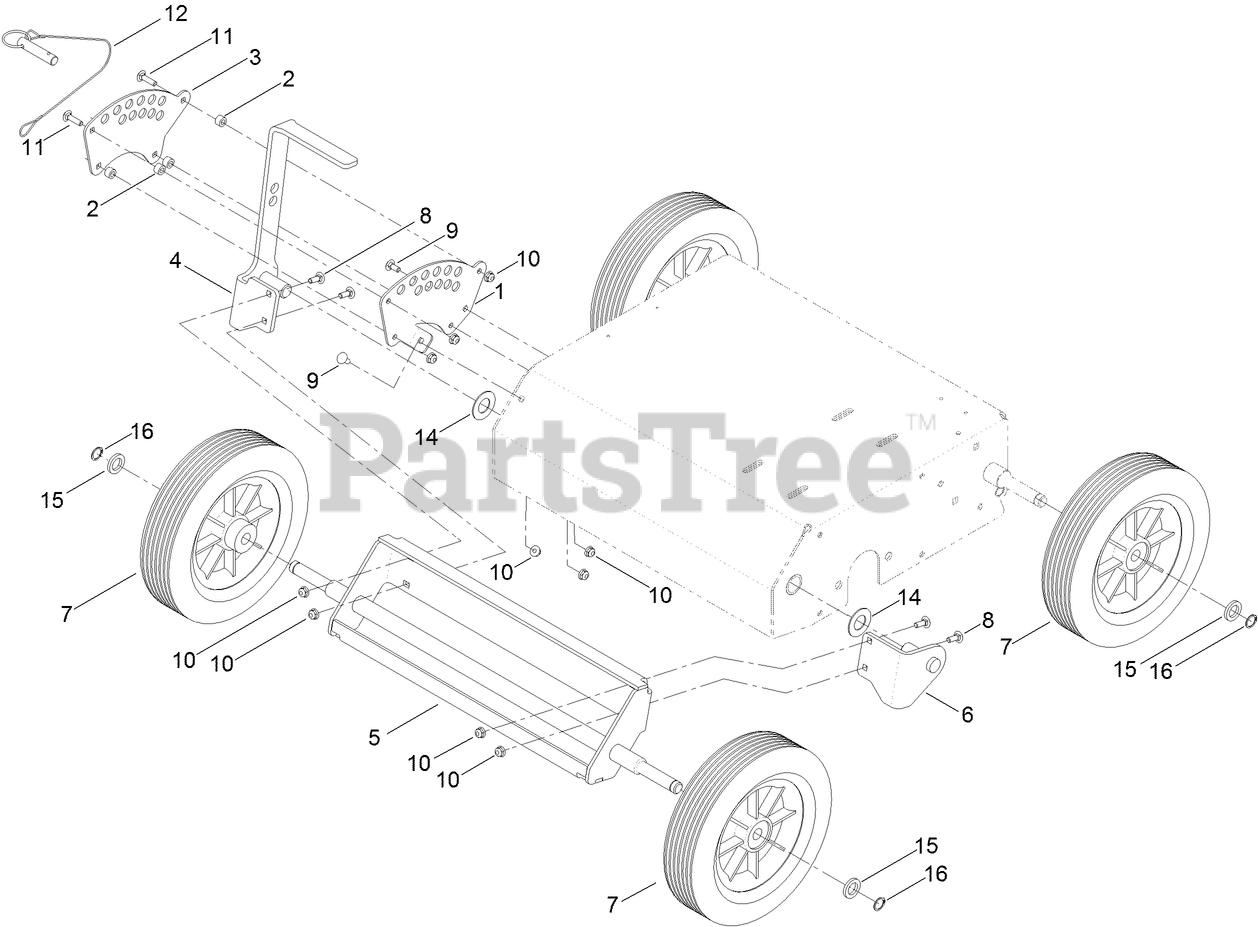

TRANSPORT-WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 121-1854

BRACKET

$47.99

$

Usually ships in 3-6 days

0

2

Toro 98-4799

SPACER

$7.99

$

Usually ships in 3-6 days

0

3

Toro 121-1856

PLATE

$51.99

$

Usually ships in 3-6 days

0

4

Toro 125-3599-03

BRACKET-ADJUST, HEIGHT

$57.99

$

Usually ships in 3-6 days

0

5

Toro 125-3626-03

BRACKET-WHEEL, HOC

$208.99

$

Usually ships in 3-6 days

0

6

Toro 125-3600-03

BRACKET-WHEEL

$42.99

$

Usually ships in 3-6 days

0

7

Toro 120-3560

WHEEL-10 INCH

$85.99

$

Usually ships in 3-6 days

0

8

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

9

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 13

0

12

Toro 104-3678

PIN-HITCH

$61.99

$

Usually ships in 3-6 days

0

14

Toro 3256-39

WASHER-FLAT

$1.49

$

In Stock, only 3 left!

0

15

Toro 63-9710

SPACER-BEARING

$13.99

$

In Stock, only 1 left!

0

16

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 20+

0
