23513 - Toro 18" Dethatcher (SN: 313000001 - 313999999) (2013) BEARING AND SHAFT ASSEMBLY Parts Diagram

18" Dethatcher

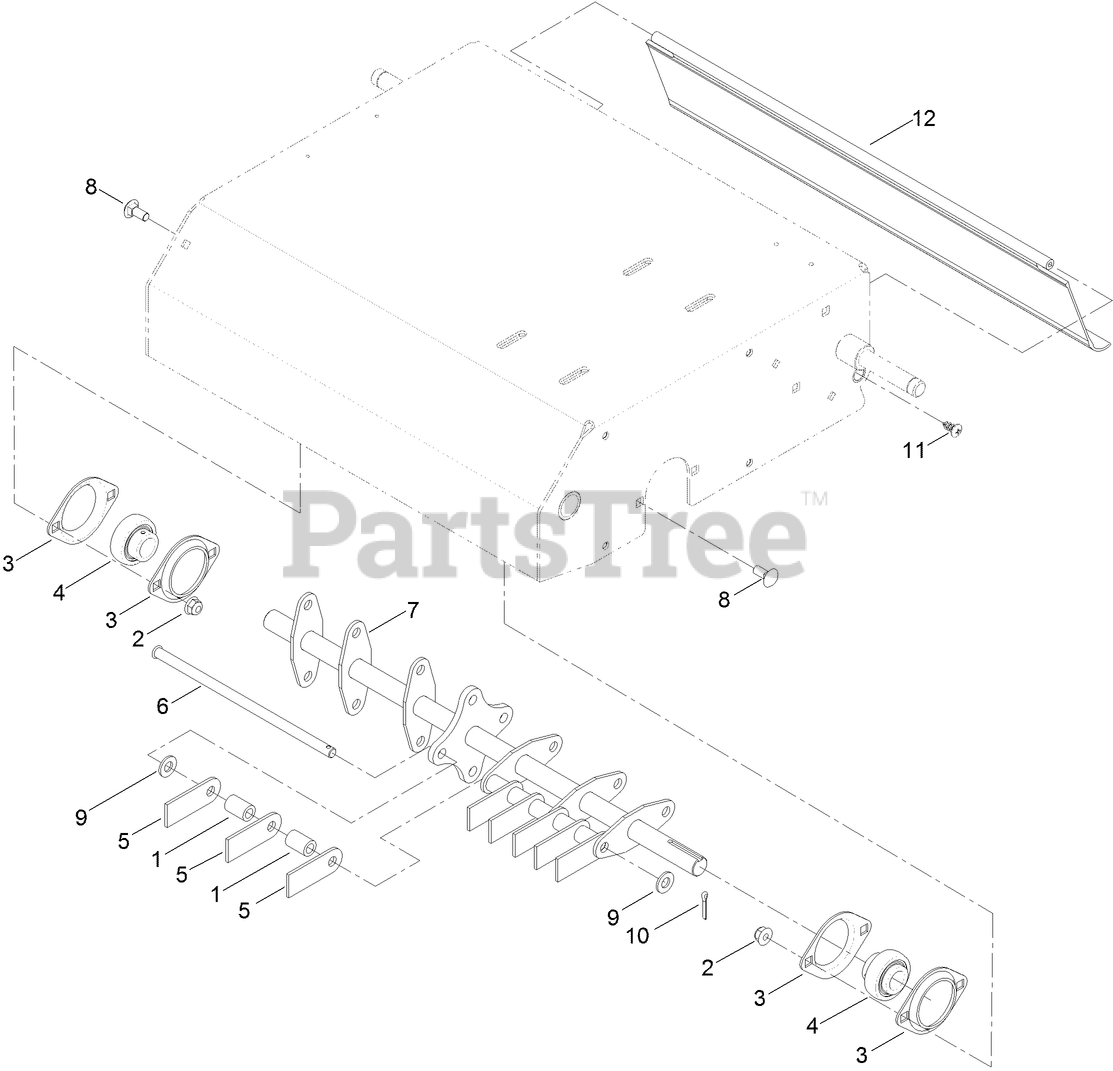

BEARING AND SHAFT ASSEMBLY Parts Diagram

  • Title
1

Toro 125-3870

SPACER

$4.49

$

Usually ships in 3-6 days

0

2

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 105-9714

FLANGE-BEARING

$10.99

$

In Stock, only 3 left!

0

4

Toro 106-8448

BEARING-RACE, EXTENDED

$77.99

$

Usually ships in 3-6 days

0

5

Toro 121-1869

BLADE-FLAIL

$6.49

$

Usually ships in 3-6 days

0

6

Toro 121-6208

SHAFT-SATELLITE

$28.99

$

Usually ships in 3-6 days

0

7

Toro 121-6220-03

SHAFT-RAKE

$173.99

$

Usually ships in 3-6 days

0

8

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

11

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

12

Toro 120-6241

SHIELD-TRAILING

$15.99

$

In Stock, Qty 20+

0
