23511 - Toro 18" Turf Seeder (SN: 400000000 - 999999999) ENGINE AND FRAME ASSEMBLY Parts Diagram

18" Turf Seeder

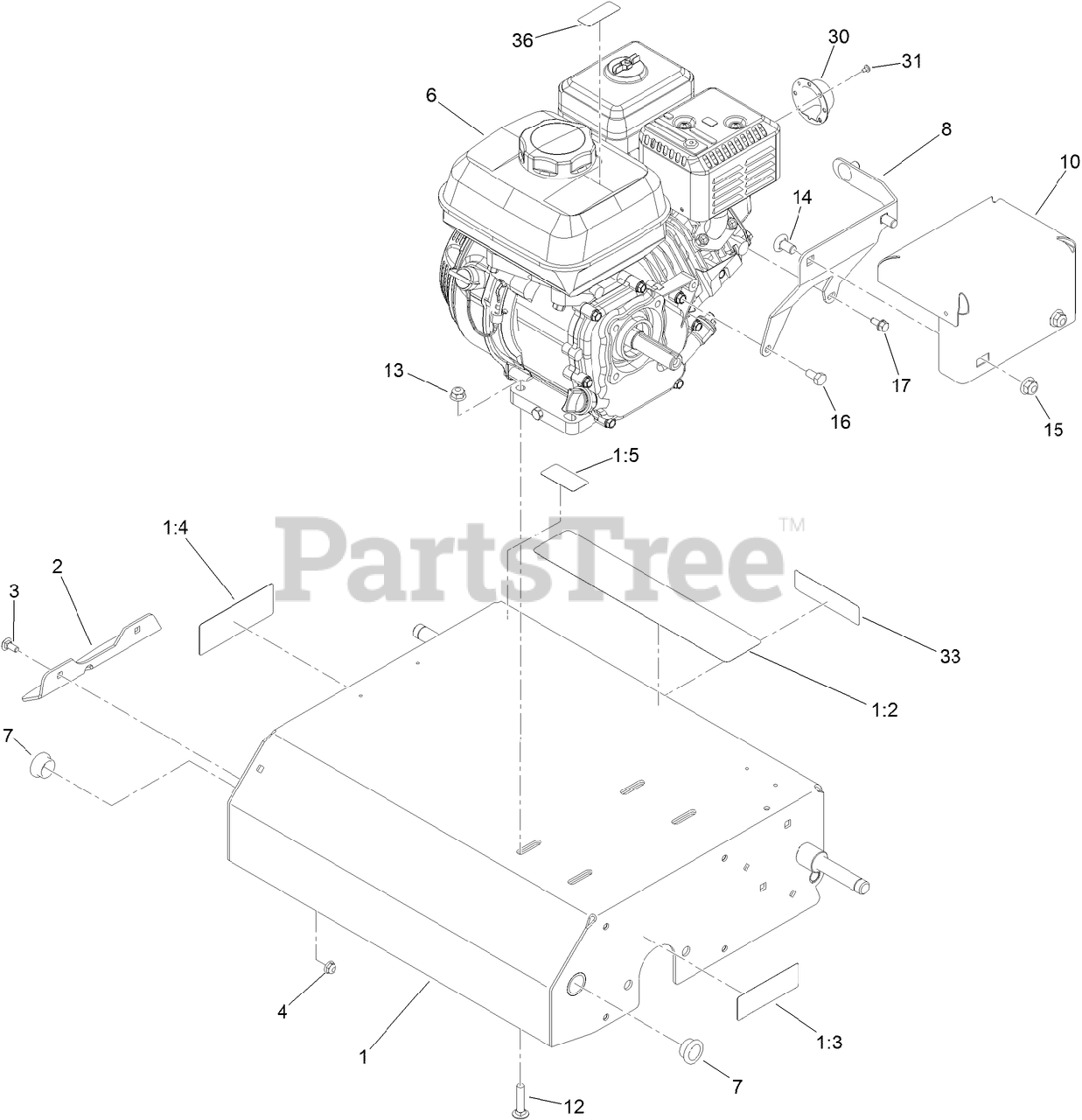

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 125-3825

FRAME ASM

$446.99

$

Usually ships in 3-6 days

0

1:2

Toro 125-3809

DECAL-WARNING

$9.49

$

Usually ships in 3-6 days

0

1:3

Toro 117-4979

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

1:4

Toro 93-7321

DECAL-DANGER

$29.99

$

Usually ships in 3-6 days

0

1:5

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

2

Toro 121-1853-01

GUARD-HAND

$17.99

$

Usually ships in 3-6 days

0

3

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

ENGINE-HONDA, GX160

Note: Not serviced separately

$

$

Not available

6

ENGINE-HONDA, GX160

Note: Obtain parts from www.honda-engines.com

$

$

Not available

7

Toro 121-1876

BUSHING

$4.49

$

Usually ships in 3-6 days

0

8

Toro 132-7167-03

MOUNT-SHIELD, HEAT

$50.99

$

Usually ships in 3-6 days

0

10

Toro 132-7166-03

SHIELD-HEAT

$95.99

$

Usually ships in 3-6 days

0

12

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 13

0

13

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

17

Toro 125-8383

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

30

Toro 125-3866

DEFLECTOR

$45.99

$

Usually ships in 3-6 days

0

31

Toro 120-1884

SCREW-PPHTF

$1.49

$

Usually ships in 3-6 days

0

33

Toro 133-8056

DECAL-ARRESTER, SPARK

$3.49

$

Usually ships in 3-6 days

0

36

Toro 130-8322

DECAL-WARNING, ETHANOL

$2.49

$

Usually ships in 3-6 days

0
