23510 - Toro 20" Turf Seeder (SN: 315000001 - 315999999) (2015) HANDLE ASSEMBLY Parts Diagram

20" Turf Seeder

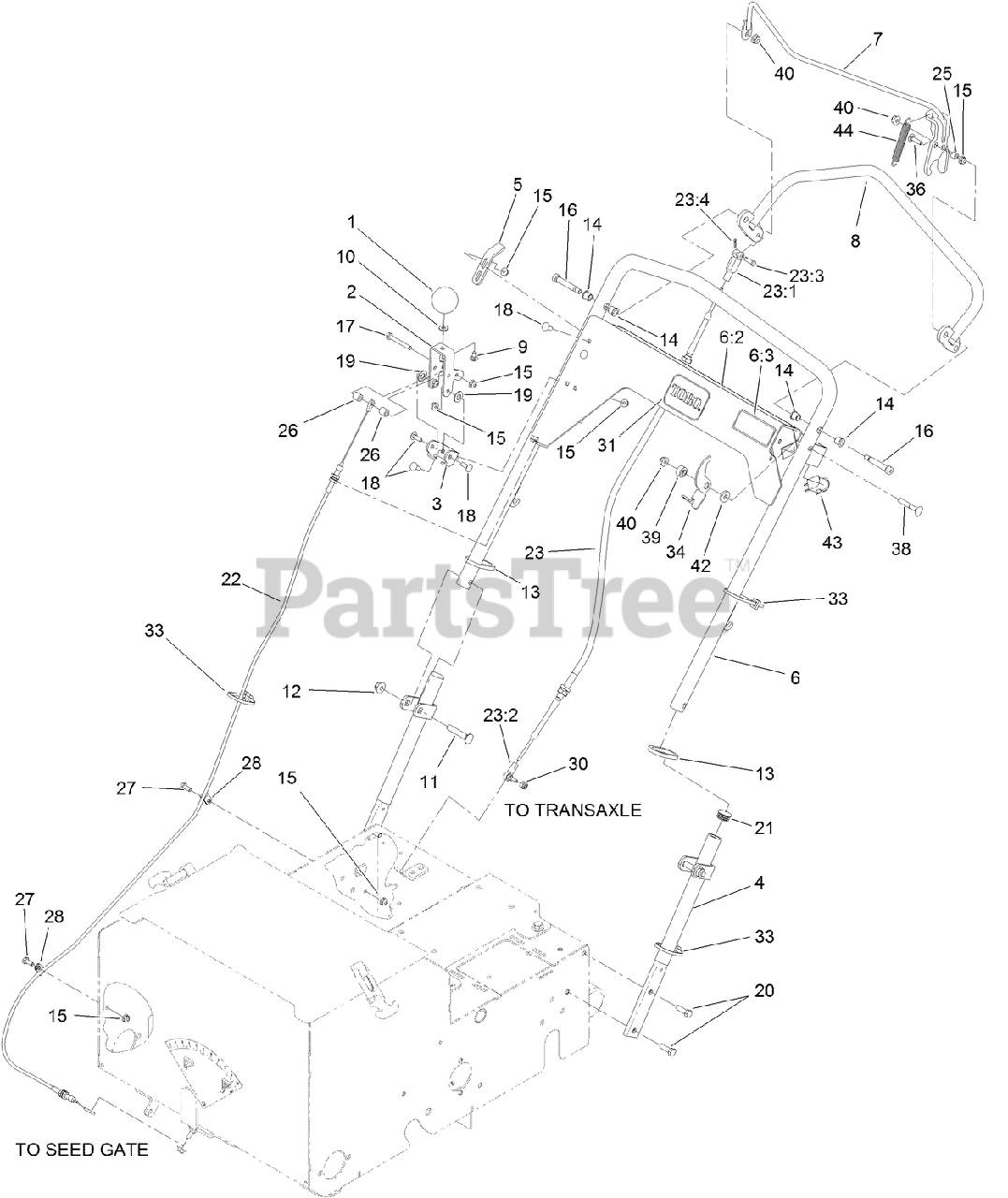

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 121-1877

KNOB-RATE, FLOW

$9.99

$

Usually ships in 3-6 days

0

2

Toro 121-1878

LEVER-ADJUST, FLOW

$28.99

$

Usually ships in 3-6 days

0

3

Toro 121-1879

BRACKET-ADJUST, FLOW

$18.99

$

Usually ships in 3-6 days

0

4

Toro 121-1893-03

HANDLE-LOWER

$67.99

$

Usually ships in 3-6 days

0

5

Toro 121-1928

BRACKET-ADJUST, DRIVE

$15.99

$

Usually ships in 3-6 days

0

6

Toro 116-9735

HANDLE

$207.99

$

Usually ships in 3-6 days

0

6:2

Toro 116-8648

DECAL-CONTROL PANEL, SEEDER

$12.99

$

Usually ships in 3-6 days

0

6:3

Toro 116-8536

DECAL-SAFETY LATCH

$3.49

$

Usually ships in 3-6 days

0

7

Toro 126-0509-03

BAIL-CLUTCH

$60.99

$

Usually ships in 3-6 days

0

8

Toro 121-1948-03

HANDLE-DRIVE

$101.99

$

Usually ships in 3-6 days

0

9

Toro 3229-10

SCREW-CARR

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, only 4 left!

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 121-6202

RING-HANDLE LOCK

$7.99

$

Usually ships in 3-6 days

0

14

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 20+

0

15

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 126-0277

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

17

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

19

Toro 48-9220

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

20

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 121-4870

PLUG

$2.99

$

Usually ships in 3-6 days

0

22

Toro 126-0042

CABLE-FLOW, SEED

$44.99

$

Usually ships in 3-6 days

0

23

Toro 116-8252

CABLE-PUSH PULL

$142.99

$

Usually ships in 3-6 days

0

23:1

Toro 121-2000

CLEVIS

$27.99

$

Usually ships in 3-6 days

0

23:2

Toro 117-9720

BALL JOINT

$17.99

$

In Stock, only 2 left!

0

23:3

Toro 283-67

PIN-CLEVIS

$2.99

$

In Stock, only 1 left!

0

23:4

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

25

Toro 66-8010

SPACER

$4.99

$

In Stock, Qty 13

0

26

Toro 22-7810

SPACER

$19.99

$

Usually ships in 3-6 days

0

27

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 2412-149

CLAMP-R

$3.99

$

Usually ships in 3-6 days

0

30

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

31

Toro 70-2200

DECAL

$6.49

$

Usually ships in 3-6 days

0

33

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

34

Toro 126-0205

LATCH-BAIL

$12.99

$

Usually ships in 3-6 days

0

36

Toro 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 13

0

38

Toro 112-8876

SCREW-HANDLE
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

39

Toro 116-2690

BUSHING-STEPPED

$13.99

$

In Stock, Qty 5

0

40

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

42

Toro 88-7200

WASHER-FLAT

$3.49

$

In Stock, only 1 left!

0

43

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

44

Toro 95-3805

SPRING

$14.99

$

In Stock, Qty 7

0
