23510 - Toro 20" Turf Seeder (SN: 315000001 - 315999999) (2015) BELT DRIVE ASSEMBLY Parts Diagram

20" Turf Seeder

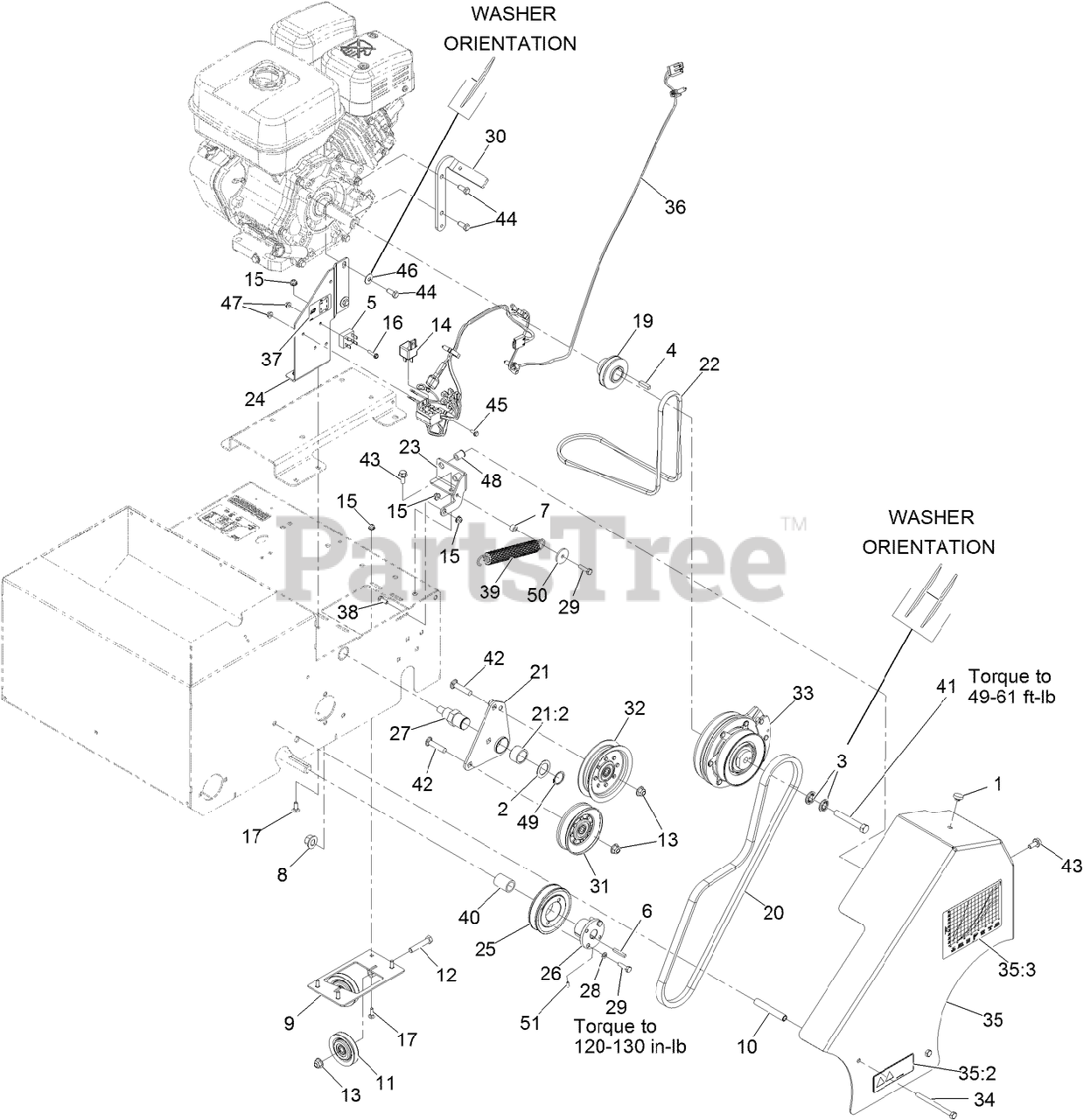

BELT DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

2

Toro 1-543436

WASHER-SPACER

$1.49

$

In Stock, Qty 9

0

3

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 10

0

4

Toro 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

5

Toro 37-7600

RECTIFIER-BRIDGE

$25.99

$

In Stock, only 1 left!

0

6

Toro 92-0049

KEY-SQUARE

$3.49

$

In Stock, Qty 17

0

7

Toro 98-4799

Spacer

$7.49

$

In Stock, only 1 left!

0

8

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

9

Toro 126-0418-03

PULLEY-TENSION

$46.99

$

In Stock, only 1 left!

0

10

Toro 104-0502

SPACER-KICKSTAND, LONG

$16.99

$

Usually ships in 3-6 days

0

11

Toro 121-1965

PULLEY-IDLER

$43.99

$

In Stock, only 2 left!

0

12

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 105-4145

RELAY

$47.99

$

Usually ships in 3-6 days

0

15

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, only 3 left!

0

17

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

19

Toro 116-9471

PULLEY-MULE DRIVE

$75.99

$

Usually ships in 3-6 days

0

20

Toro 116-9518

BELT-SEEDER, CLUTCH

$61.99

$

Usually ships in 3-6 days

0

21

Toro 116-9519

IDLER ARM ASM

$75.99

$

Usually ships in 3-6 days

0

21:2

Toro 116-9538

BUSHING

$15.99

$

Usually ships in 3-6 days

0

22

Toro 116-9532

BELT-MULE DRIVE

$29.99

$

Usually ships in 3-6 days

0

23

Toro 116-9533-01

BRACKET-SPRING

$15.99

$

Usually ships in 3-6 days

0

24

Toro 116-9534-01

SUPPORT-ENGINE

$30.99

$

Usually ships in 3-6 days

0

25

Toro 121-2019

SHEAVE-TAPER LOCK

$98.99

$

Usually ships in 3-6 days

0

26

Toro 121-2022

BUSHING-TAPER LOCK

$35.99

$

Usually ships in 3-6 days

0

27

Toro 116-9539

PIVOT-IDLER

$25.99

$

Usually ships in 3-6 days

0

28

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 116-9551

STOP-CLUTCH

$21.99

$

Usually ships in 3-6 days

0

31

Toro 116-9623

PULLEY-IDLER V

$36.99

$

Usually ships in 3-6 days

0

32

Toro 116-9728

PULLEY-IDLER FLAT (4.06-INCH)

$42.99

$

Usually ships in 3-6 days

0

33

Toro 116-9852

CLUTCH-ELECTRIC

$638.99

$

Usually ships in 3-6 days

0

34

Toro 322-19

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

35

Toro 116-9925

BELT GUARD ASM
(Superseded to 135-7597)

$169.99

$

Usually ships in 3-6 days

0

35:2

Toro 93-7321

DECAL-DANGER

$26.99

$

Usually ships in 3-6 days

0

35:3

Toro 116-8537

DECAL-SEED GRAPH

$16.99

$

Usually ships in 3-6 days

0

36

Toro 116-9926

HARNESS-SLICER/SEEDER

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$114.99

$

Usually ships in 3-6 days

0

37

Toro 116-9985

DECAL-BRIDGE RECTIFIER

$

$

Currently unavailable

38

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 126-0091

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

40

Toro 126-0108

SPACER

$9.49

$

Usually ships in 3-6 days

0

41

Toro 3212-12

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$3.49

$

In Stock, only 4 left!

0

42

Toro 3231-29

SCREW-CARR

$7.49

$

In Stock, Qty 10

0

43

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

44

Toro 3235-6

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

45

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

46

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

47

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 16

0

48

Toro 32148-7

NUT-INSERT

$3.99

$

Usually ships in 3-6 days

0

49

Toro 32151-29

Ring-Retaining

$5.49

$

In Stock, Qty 16

0

50

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

51

Toro 126-0284

SCREW-SET, HS

$31.99

$

Usually ships in 3-6 days

0
