23510 - Toro 20" Turf Seeder (SN: 312000001 - 312999999) (2012) HANDLE ASSEMBLY Parts Diagram

20" Turf Seeder

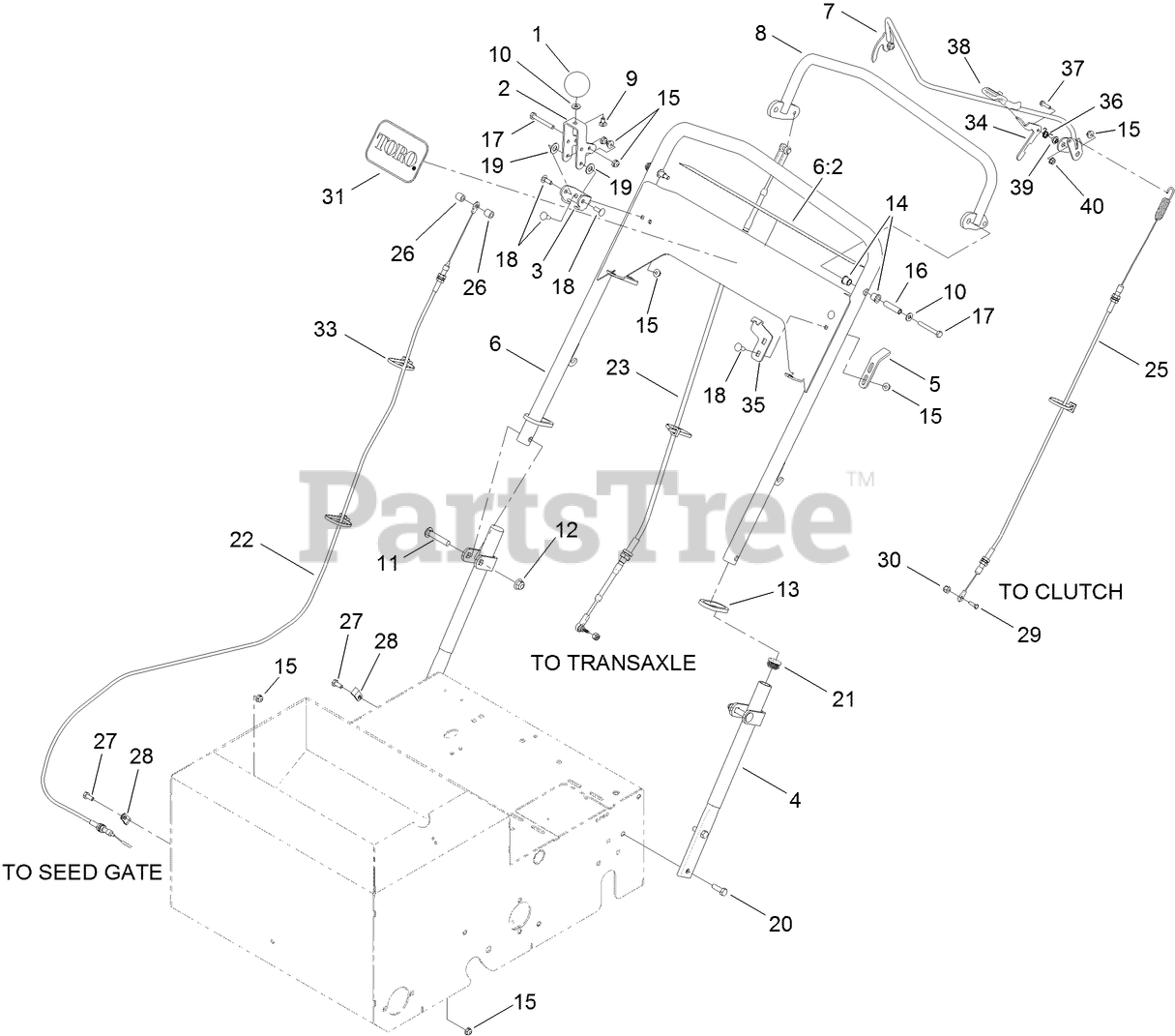

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 121-1877

KNOB-RATE, FLOW

$9.99

$

Usually ships in 3-6 days

0

2

Toro 121-1878

LEVER-ADJUST, FLOW

$28.99

$

Usually ships in 3-6 days

0

3

Toro 121-1879

BRACKET-ADJUST, FLOW

$18.99

$

Usually ships in 3-6 days

0

4

Toro 121-1893-03

HANDLE-LOWER

$67.99

$

Usually ships in 3-6 days

0

5

Toro 121-1928

BRACKET-ADJUST, DRIVE

$15.99

$

Usually ships in 3-6 days

0

6

Toro 121-6198

HANDLE ASM

$

$

Not available

6:2

Toro 121-2010

DECAL-CONTROL PANEL
(Superseded to 116-8648)

$12.99

$

Usually ships in 3-6 days

0

$

$

Not available

8

Toro 121-1948-03

HANDLE-DRIVE

$101.99

$

Usually ships in 3-6 days

0

9

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 121-6202

RING-HANDLE LOCK

$7.99

$

Usually ships in 3-6 days

0

14

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 20+

0

15

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 121-1968

BUSHING-PIVOT

$

$

Not available

17

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

19

Toro 48-9220

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

20

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

$2.99

$

Usually ships in 3-6 days

0

22

Toro 121-2003

CABLE-SEED FLOW
(Superseded to 126-0042)

$44.99

$

Usually ships in 3-6 days

0

23

Toro 121-2004

CABLE-PUSH PULL
(Superseded to 116-8252)

$142.99

$

Usually ships in 3-6 days

0

25

Toro 121-2005

CABLE-CLUTCH

$58.99

$

Usually ships in 3-6 days

0

26

Toro 22-7810

SPACER

$19.99

$

Usually ships in 3-6 days

0

27

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 2412-149

CLAMP-R

$3.99

$

Usually ships in 3-6 days

0

29

$0.99

$

In Stock, Qty 20+

0

30

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

31

$11.99

$

In Stock, only 2 left!

0

33

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

34

$

$

Not available

35

Toro 121-2030

BRACKET-2 STEP, CATCH

$

$

Not available

36

Toro 121-2037

SPRING-TORSION

$

$

Not available

37

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

38

$6.49

$

In Stock, Qty 12

0

39

Toro 107-7463

SPACER

$3.49

$

In Stock, Qty 15

0

40

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0
