23510 - Toro 20" Turf Seeder (SN: 312000001 - 312999999) (2012) DRIVE ASSEMBLY Parts Diagram

20" Turf Seeder

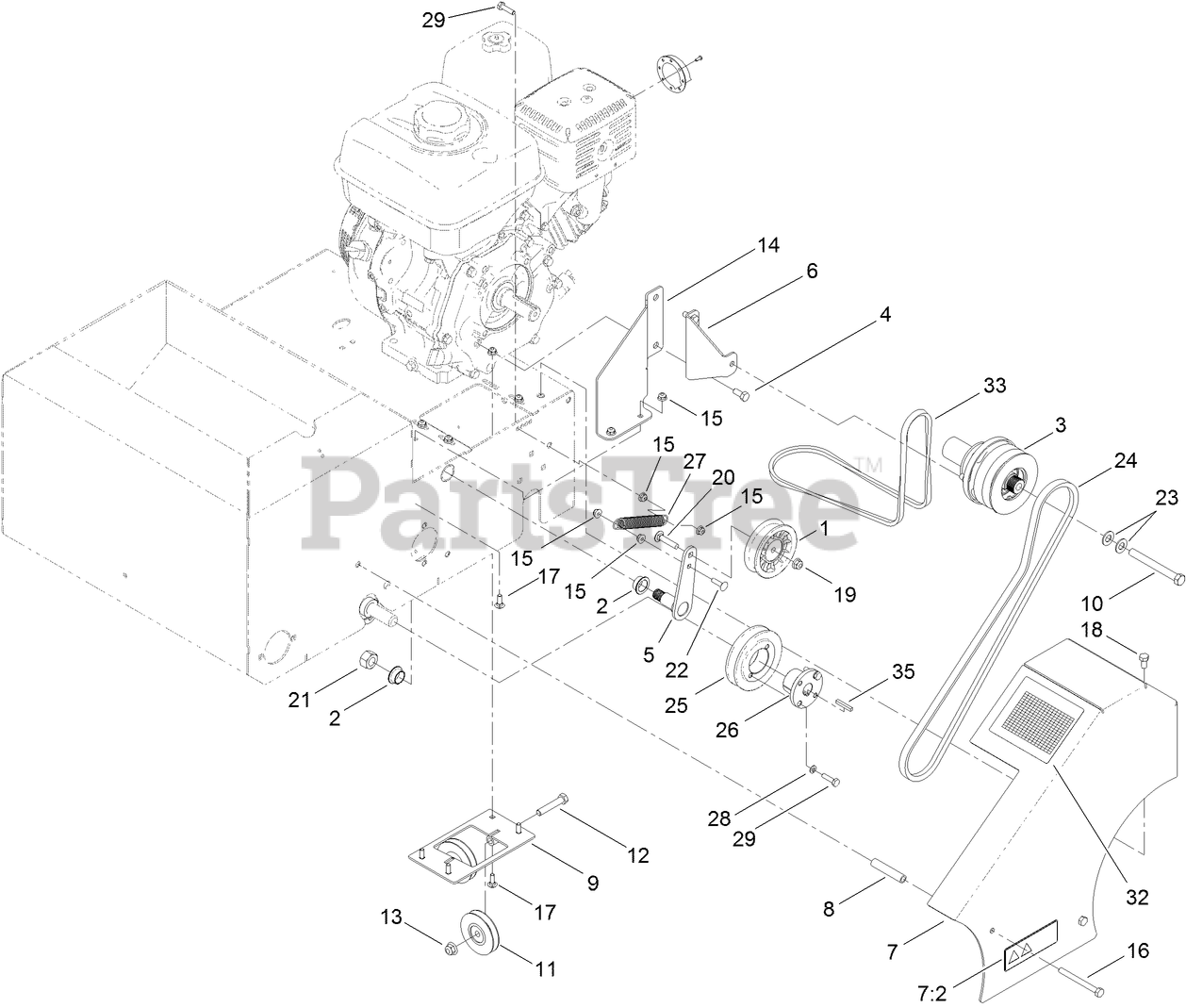

DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 110-6775

PULLEY-IDLER

$35.99

$

In Stock, Qty 5

0

2

Toro 108519

BUSHING-BRONZE

$15.99

$

In Stock, Qty 9

0

3

Toro 121-1892

CLUTCH

$

$

Not available

4

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

5

Toro 121-1898

ARM-IDLER

$

$

Not available

6

Toro 121-1911-01

BRACKET-CLUTCH
(Superseded to 116-8669-01)

$

$

Not available

7

Toro 121-6197

BELT GUARD ASM

$

$

Currently unavailable

7:2

Toro 93-7321

DECAL-DANGER

$29.99

$

Usually ships in 3-6 days

0

8

Toro 106-8121

SPACER

$

$

Not available

9

Toro 121-1967-03

PULLEY-TENSION

$49.99

$

Usually ships in 3-6 days

0

10

Toro 3212-16

SCREW-HH

$19.99

$

In Stock, Qty 12

0

11

Toro 121-1965

PULLEY-IDLER

$45.99

$

In Stock, only 2 left!

0

12

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 121-1964-01

GUARD-BELT
(Superseded to 116-9925)

$

$

Not available

15

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

17

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

18

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

19

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

20

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

21

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

22

Toro 3229-30

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

23

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 121-1997

BELT-DRIVE, CLUTCH
(Superseded to 116-9518)

$54.99

$

Usually ships in 3-6 days

0

25

Toro 121-2019

SHEAVE-TAPER LOCK

$101.99

$

Usually ships in 3-6 days

0

26

Toro 121-2022

BUSHING-TAPER LOCK

$36.99

$

Usually ships in 3-6 days

0

27

Toro 121-2016

SPRING-EXTENSION

$10.99

$

Usually ships in 3-6 days

0

28

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 119-4654

DECAL-GRAPH, SEED
(Superseded to 116-8537)

$18.99

$

Usually ships in 3-6 days

0

33

Toro 121-1998

BELT-DRIVE
(Superseded to 116-9532)

$28.99

$

Usually ships in 3-6 days

0

35

Toro 92-0049

KEY-SQUARE

$3.49

$

In Stock, Qty 17

0
