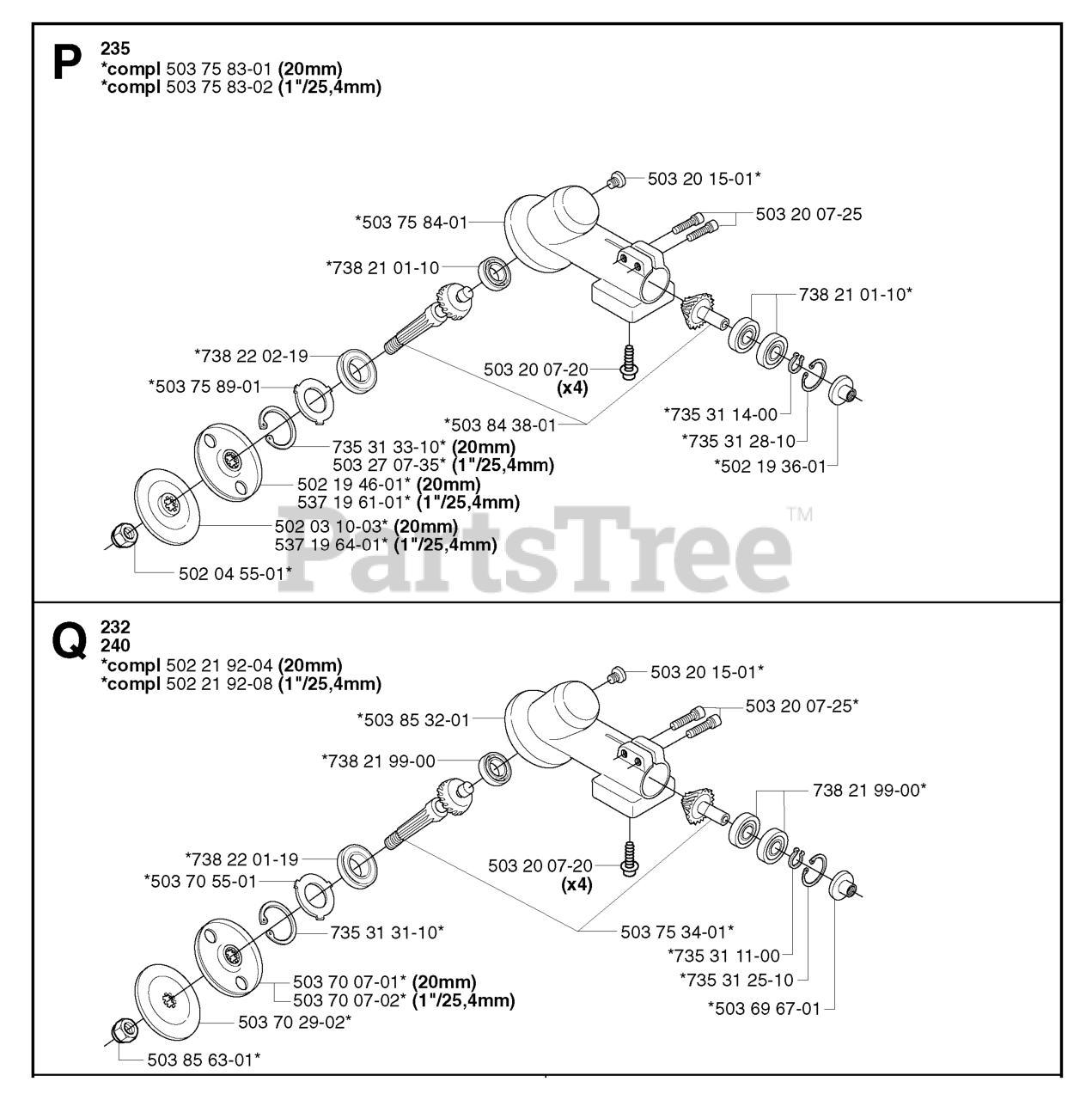

235 RII - Husqvarna String Trimmer (SN: 20023500001 - 20060100000) BEVEL GEAR Parts Diagram

String Trimmer

BEVEL GEAR Parts Diagram

  • Title
503 75 83-02

Husqvarna 503758302

BEVEL GEAR

Note: 1/25,4MM

$284.99

$

Usually ships in 3-10 days

0

537 19 61-01

Husqvarna 537196101

CARRIER

Note: 1/25,4MM

$

$

Not available

735 31 28-10

Husqvarna 735312810

RETAINING RING SGH 28

$7.49

$

In Stock, only 3 left!

0

503 70 55-01

$5.99

$

In Stock, only 1 left!

0

502 04 55-01

Husqvarna 502045501

LOCKNUT 12X1.75
(Superseded to 732252201)

$1.99

$

In Stock, only 2 left!

0

735 31 14-00

Husqvarna 735311400

SEEGER CLIP

$6.49

$

Usually ships in 3-10 days

0

503 69 67-01

$

$

Not available

503 70 07-01

$60.99

$

In Stock, only 4 left!

0

503 75 84-01

$66.92

$

Usually ships in 3-10 days

0

503 75 89-01

$2.23

$

In Stock, only 1 left!

0

503 85 32-01

Husqvarna 503853201

GEAR HOUSING

$74.99

$

Usually ships in 3-10 days

0

502 03 10-03

Husqvarna 502031003

FLANGE

Note: 20MM

$34.99

$

Usually ships in 3-10 days

0

502 19 46-01

Husqvarna 502194601

DRIVER
(Superseded to 502208701)

Note: 20MM

$72.99

$

Usually ships in 3-10 days

0

537 19 64-01

Husqvarna 537196401

FLANGE

Note: 1/25,4MM

$

$

Not available

502 19 36-01

Husqvarna 502193601

SEALING RING

$

$

Not available

503 84 38-01

Husqvarna 503843801

Gear-Wheel Spare Pt Kit

$

$

Not available

503 70 07-02

$56.99

$

Usually ships in 3-10 days

0

503 70 29-02

$17.99

$

In Stock, only 1 left!

0

503 85 63-01

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, only 1 left!

0

738 21 99-00

Husqvarna 738219900

BALL BEARING 24X9X1/609ZR

$13.99

$

In Stock, only 2 left!

0

503 20 15-01

$9.99

$

In Stock, only 1 left!

0

502 21 92-08

$302.99

$

Usually ships in 3-10 days

0

735 31 33-10

Husqvarna 735313310

RETAINING RING SGH 35

Note: 20MM

$3.49

$

Usually ships in 3-10 days

0

503 75 34-01

Husqvarna 503753401

GEAR SET
(Superseded to 502219208)

$302.99

$

Usually ships in 3-10 days

0

503 75 83-01

Husqvarna 503758301

GEAR COMPLETE
(Superseded to 503758302)

Note: 20MM

$284.99

$

Usually ships in 3-10 days

0

735 31 25-10

Husqvarna 735312510

RETAINING RING

$3.49

$

In Stock, only 3 left!

0

738 22 02-19

Husqvarna 738220219

BALL BEARING 6202-2RS1

$35.99

$

Usually ships in 3-10 days

0

735 31 11-00

Husqvarna 735311100

RETAINING RING

$3.49

$

In Stock, only 2 left!

0

735 31 31-10

Husqvarna 735313110

RETAINING RING

$4.99

$

In Stock, only 3 left!

0

502 21 92-04

Husqvarna 502219204

BEVEL GEAR
(Superseded to 502219208)

$302.99

$

Usually ships in 3-10 days

0

503 20 07-25

$4.99

$

In Stock, Qty 11

0

738 21 01-10

Husqvarna 738210110

BALL BEARING

$24.99

$

Usually ships in 3-10 days

0

503 20 07-20

Husqvarna 503200720

SCREW
(Superseded to 503200220)

$6.49

$

In Stock, Qty 18

0

738 22 01-19

Husqvarna 738220119

BALL BEARING 6201-2RS1
(Superseded to 503252301)

$17.99

$

Usually ships in 3-10 days

0

503 27 07-35

Husqvarna 503270735

RETAINING RING

Note: 1/25,4MM

$

$

Not available
