235 R - Husqvarna String Trimmer (2009-06) Carb Parts / WT548A Parts Diagram

String Trimmer

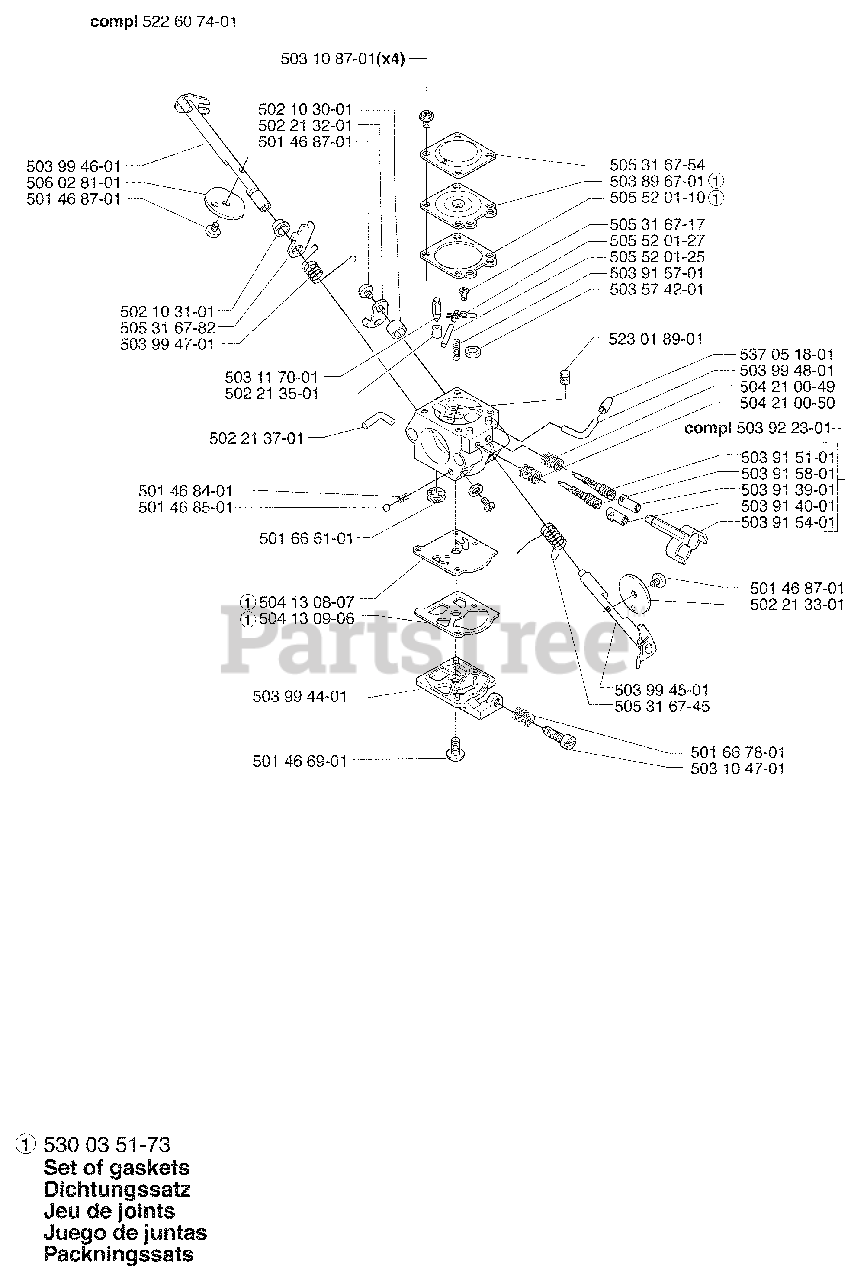

Carb Parts / WT548A Parts Diagram

  • Title
501468401

$7.99

$

In Stock, only 1 left!

0

501468501

$7.99

$

Usually ships in 3-10 days

0

502103001

$13.99

$

Usually ships in 3-10 days

0

502213201

Husqvarna 502213201

LEVER, THROTTLE

$

$

Not available

501468701

$7.99

$

In Stock, only 1 left!

0

503994601

Husqvarna 503994601

CHOKE SHAFT

$

$

Not available

506028101

$

$

Not available

501468701

$7.99

$

In Stock, only 1 left!

0

502103101

$11.99

$

Usually ships in 3-10 days

0

505316782

Husqvarna 505316782

STARTER LEVER

$2.49

$

Usually ships in 3-10 days

0

503994701

$

$

Not available

503117001

Husqvarna 503117001

Inlet Valve

$22.99

$

In Stock, Qty 8

0

502213501

$

$

Not available

502213701

$7.49

$

Usually ships in 3-10 days

0

501666101

Husqvarna 501666101

Fuel Inlet Screen

$14.99

$

In Stock, Qty 5

0

504130807

Husqvarna 504130807

Pump Diaphragm

$31.99

$

In Stock, Qty 6

0

504130906

$11.99

$

In Stock, only 3 left!

0

503994401

$

$

Not available

501466901

$9.49

$

In Stock, Qty 5

0

503108701

Husqvarna 503108701

Screw
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

505316754

Husqvarna 505316754

Diaphragm Cover

$4.99

$

Usually ships in 3-10 days

0

503896701

$51.99

$

In Stock, Qty 10

0

505520110

Husqvarna 505520110

Metering Side Gasket

$

$

Not available

505316717

$7.99

$

In Stock, Qty 6

0

505520127

$5.99

$

Usually ships in 3-10 days

0

505520125

Husqvarna 505520125

Fulcrum Pin

$7.99

$

In Stock, only 3 left!

0

503915701

$

$

Not available

503574201

Husqvarna 503574201

Welch Plug

$7.99

$

In Stock, only 4 left!

0

503994801

$

$

Not available

504210049

Husqvarna 504210049

Spring, H-Needle

$13.99

$

In Stock, only 4 left!

0

504210050

Husqvarna 504210050

Needle Spring
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

501468701

$7.99

$

In Stock, only 1 left!

0

502213301

Husqvarna 502213301

THROTTLE FLAP

$

$

Not available

503994501

$

$

Not available

505316745

$3.49

$

Usually ships in 3-10 days

0

501667801

Husqvarna 501667801

Spring
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

503104701

$11.99

$

In Stock, only 1 left!

0

523018901

Husqvarna 523018901

NOZZLE ASSY

$

$

Not available

503915101

Husqvarna 503915101

Adjusting Screw

$9.49

$

In Stock, only 1 left!

0

503915801

$4.99

$

Usually ships in 3-10 days

0

503913901

Husqvarna 503913901

Limiter Cap

$

$

Not available

503914001

Husqvarna 503914001

Limiter Cap

$5.99

$

In Stock, only 1 left!

0

503915401

$9.49

$

Usually ships in 3-10 days

0

503922301

Husqvarna 503922301

LIMITER CAP & SCREW SET

$51.99

$

Usually ships in 3-10 days

0

537051801

$2.49

$

Usually ships in 3-10 days

0

522607401

Husqvarna 522607401

Carburetor, WT-964-1
(Superseded to 577133001)

$120.99

$

Usually ships in 3-10 days

0

530035173

Husqvarna 530035173

Gasket and Diaphragm Kit
(Superseded to 530069844)

$20.99

$

In Stock, Qty 5

0
