235 R - Husqvarna String Trimmer (2002-09) Gear Head Parts Diagram

String Trimmer

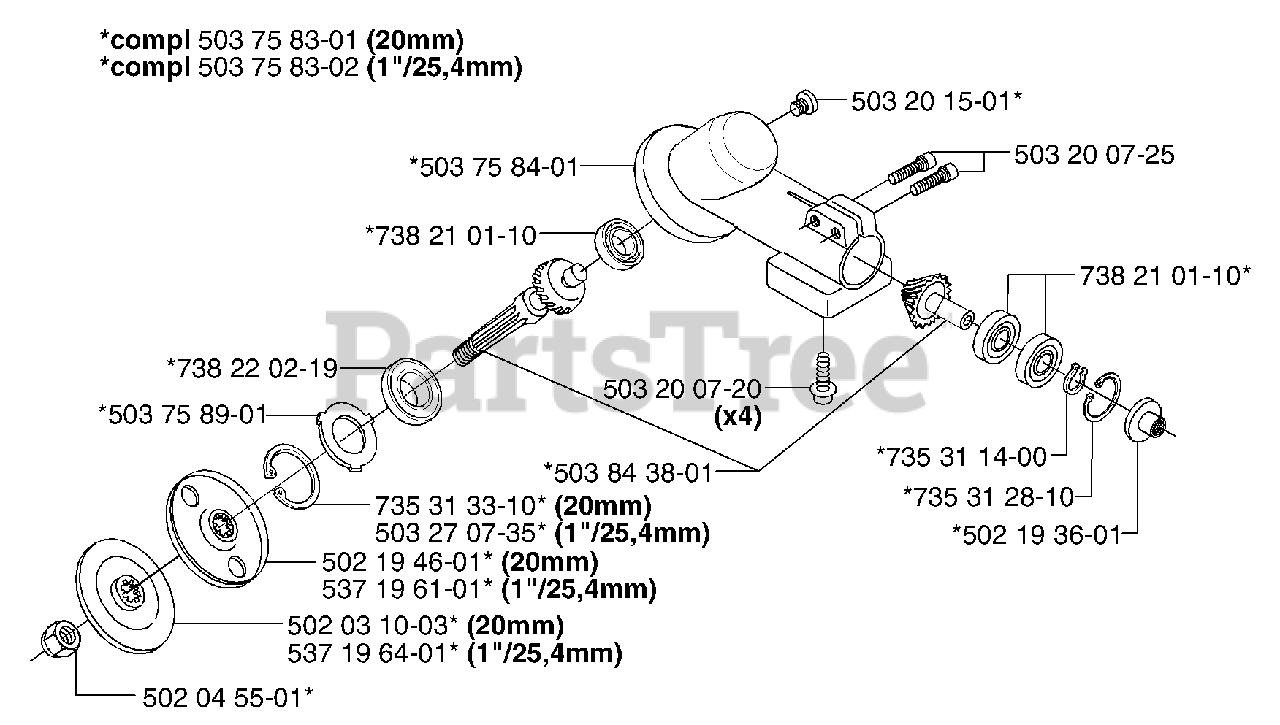

Gear Head Parts Diagram

  • Title

502031003

Husqvarna 502031003

Flange

Note: (20mm)

$34.99

$

Usually ships in 3-10 days

0

502045501

Husqvarna 502045501

Locknut 12x1.75
(Superseded to 732252201)

$1.99

$

In Stock, only 2 left!

0

502193601

Husqvarna 502193601

Sealing Ring

$

$

Not available

502194601

Husqvarna 502194601

Driver
(Superseded to 502208701)

Note: (20mm)

$72.99

$

Usually ships in 3-10 days

0

503200720

Husqvarna 503200720

SCREW
(Superseded to 503200220)

$6.49

$

In Stock, Qty 18

0

503200725

Husqvarna 503200725

SCREW

$4.99

$

In Stock, Qty 11

0

503201501

Husqvarna 503201501

Plug

$9.99

$

In Stock, only 1 left!

0

503270735

Husqvarna 503270735

RETAINING RING

Note: (1"/25,4mm)

$

$

Not available

503758301

Husqvarna 503758301

Gear
(Superseded to 503758302)

Note: Compl; (20mm)

$284.99

$

Usually ships in 3-10 days

0

503758302

Husqvarna 503758302

BEVEL GEAR

Note: Compl; (1"/25,4mm)

$284.99

$

Usually ships in 3-10 days

0

503758401

Husqvarna 503758401

Gear Case

$66.92

$

Usually ships in 3-10 days

0

503758901

Husqvarna 503758901

Washer

$2.23

$

In Stock, only 1 left!

0

503843801

Husqvarna 503843801

Gear-Wheel Spare Pt Kit

$

$

Not available

537196101

Husqvarna 537196101

CARRIER

Note: (1"/25,4mm)

$

$

Not available

537196401

Husqvarna 537196401

FLANGE

Note: (1"/25,4mm)

$

$

Not available

735311400

Husqvarna 735311400

Circlip

$6.49

$

Usually ships in 3-10 days

0

735312810

Husqvarna 735312810

Retaining Ring Sgh 28

$7.49

$

In Stock, only 2 left!

0

735313310

Husqvarna 735313310

Retaining Ring Sgh 35

Note: (20mm)

$3.49

$

Usually ships in 3-10 days

0

738210110

Husqvarna 738210110

Ball Bearing

$24.99

$

Usually ships in 3-10 days

0

738220219

Husqvarna 738220219

Ball Bearing 6202-2rs1

$35.99

$

Usually ships in 3-10 days

0
