235 - Husqvarna Chainsaw (2008-01) Chainbrake Parts Diagram

Chainsaw

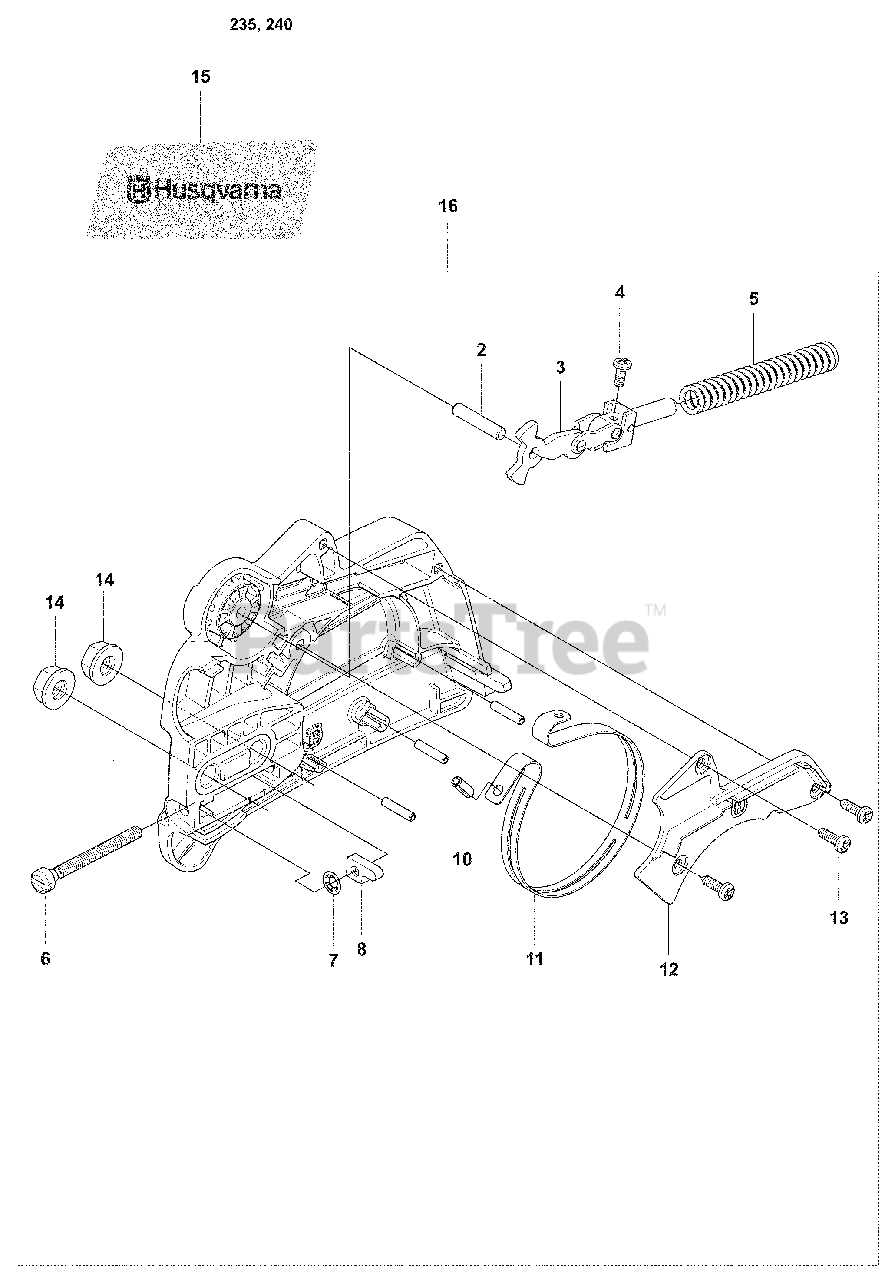

Chainbrake Parts Diagram

  • Title

2

Husqvarna 530057950

PIN, DOWEL

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 530057940

ASSY, FRONT LINK

$18.99

$

Usually ships in 3-10 days

0

4

Husqvarna 530015911

M3.83 X 1.81 X 9 PLASTITE
(Superseded to 574780301)

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 530016415

SPRING COMPRESSION

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 530061110

SCREW BAR ADJUSTING
(Superseded to 530016110)

$4.99

$

In Stock, Qty 19

0

7

Husqvarna 530038593

RETAINER PUSH NUT

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 530015826

PIN BAR ADJUST

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 530015913

PIN, BAND RETAINER

$4.99

$

In Stock, only 4 left!

0

11

Husqvarna 530057923

BRAKE BAND

$6.99

$

In Stock, only 4 left!

0

12

Husqvarna 545071001

COVER, BRAKE BAND

$

$

Not available

13

Husqvarna 530016064

SCP#6-19 X .437 .PL. PAN.
(Superseded to 545227101)

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 530015917

NUT, BAR MTG

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 545118701

Decal

$3.99

$

In Stock, only 4 left!

0

16

Husqvarna 545071103

CHAIN BRAKE ASS'Y FRT ADJ
(Superseded to 525628901)

Note: Incl 2,3,4,5,6,7,8,10,11,12,13

$28.99

$

In Stock, Qty 11

0
