235 e - Husqvarna Chainsaw (2008-01) Starter Assembly Parts Diagram

Chainsaw

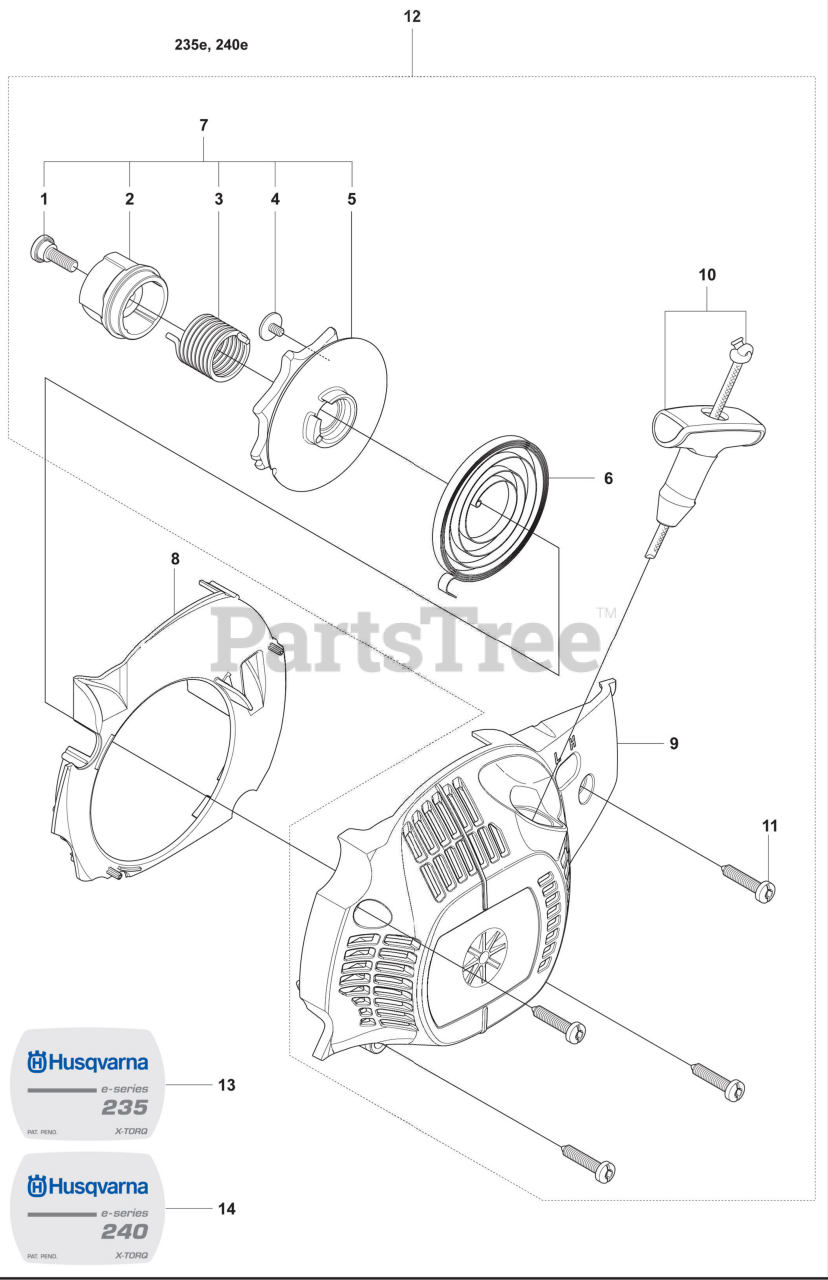

Starter Assembly Parts Diagram

  • Title

1

Husqvarna 530021179

SCREW SHOULDER

$2.49

$

In Stock, only 2 left!

0

2

Husqvarna 530059677

STARTER HUB EPS

$9.99

$

In Stock, Qty 6

0

3

Husqvarna 530021180

SPRING EPS

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 530016080

SCREW, ROPE RETAINER

$6.49

$

In Stock, only 1 left!

0

5

Husqvarna 545058201

PULLEY-STARTER EPS
(Superseded to 530071966)

$26.99

$

Usually ships in 3-10 days

0

6

Husqvarna 530042095

SPRING-RECOIL
(Superseded to 545008013)

$6.99

$

In Stock, only 4 left!

0

7

Husqvarna 530071966

KIT, EPS STARTER 235e/240e

Note: Incl 1,2,3,4,5

$26.99

$

Usually ships in 3-10 days

0

8

Husqvarna 545063801

BAFFLE

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 545063701

FAN HOUSING

$17.99

$

Usually ships in 3-10 days

0

10

Husqvarna 545010010

HANDLE & ROPE assy

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 530016432

SCREW, FAN HOUSING

$6.49

$

In Stock, only 3 left!

0

12

Husqvarna 545008024

KIT, complete EPS 235e/240e

Note: Incl 1,2,3,4,5,6,8,9,10,11

$37.99

$

In Stock, only 1 left!

0

13

Husqvarna 545118502

DECAL 235e

$15.99

$

In Stock, only 1 left!

0

14

Husqvarna 545118501

DECAL 240e

$3.99

$

Usually ships in 3-10 days

0
