235 e - Husqvarna Chainsaw (2008-01) Chainbrake Parts Diagram

Chainsaw

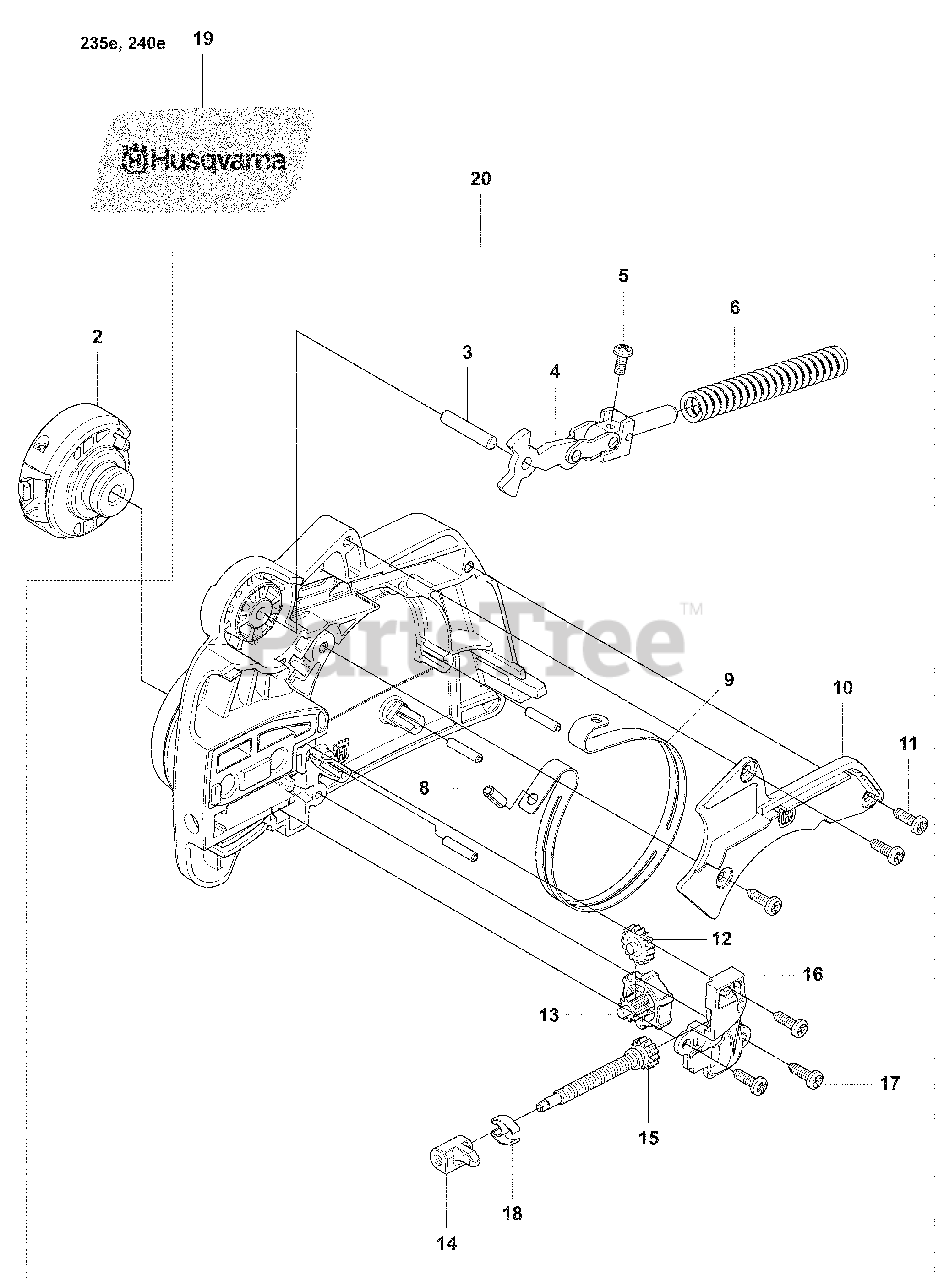

Chainbrake Parts Diagram

  • Title

2

Husqvarna 545146401

ASSEMBLY KNOB EZT
(Superseded to 579070601)

$10.99

$

In Stock, Qty 6

0

3

Husqvarna 530057950

PIN, DOWEL

$4.99

$

In Stock, only 1 left!

0

4

Husqvarna 530057940

ASSY, FRONT LINK

$18.99

$

Usually ships in 3-10 days

0

5

Husqvarna 530015911

M3.83 X 1.81 X 9 PLASTITE
(Superseded to 574780301)

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 530016415

SPRING COMPRESSION

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 530015913

PIN, BAND RETAINER

$4.99

$

In Stock, only 4 left!

0

9

Husqvarna 530057923

BRAKE BAND

$6.99

$

In Stock, only 4 left!

0

10

Husqvarna 545071001

COVER, BRAKE BAND

$

$

Not available

11

Husqvarna 530016064

SCP#6-19 X .437 .PL. PAN.
(Superseded to 545227101)

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 545060201

GEAR, IDLER

$6.49

$

In Stock, only 3 left!

0

13

Husqvarna 545090502

WHEEL, GEAR ADJUSTER
(Superseded to 525884201)

$5.99

$

In Stock, only 2 left!

0

14

Husqvarna 545060501

PIN, BAR ADJUSTING
(Superseded to 545060502)

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 545065901

ASSY ADJUSTER SCREW

$6.49

$

In Stock, only 1 left!

0

16

Husqvarna 545059201

COVER, GEAR

$6.49

$

In Stock, only 2 left!

0

17

Husqvarna 530016064

SCP#6-19 X .437 .PL. PAN.
(Superseded to 545227101)

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 545149301

Clip, EZT Spring

$4.99

$

In Stock, Qty 6

0

19

Husqvarna 545118601

Decal, EZT Clutch Cover

$

$

Not available

20

Husqvarna 545071101

Chain brake assembly
(Superseded to 525611401)

Note: Incl 3,4,5,6,8,9,10,11,12,13,14,15,16,17,18

$51.99

$

In Stock, only 1 left!

0
