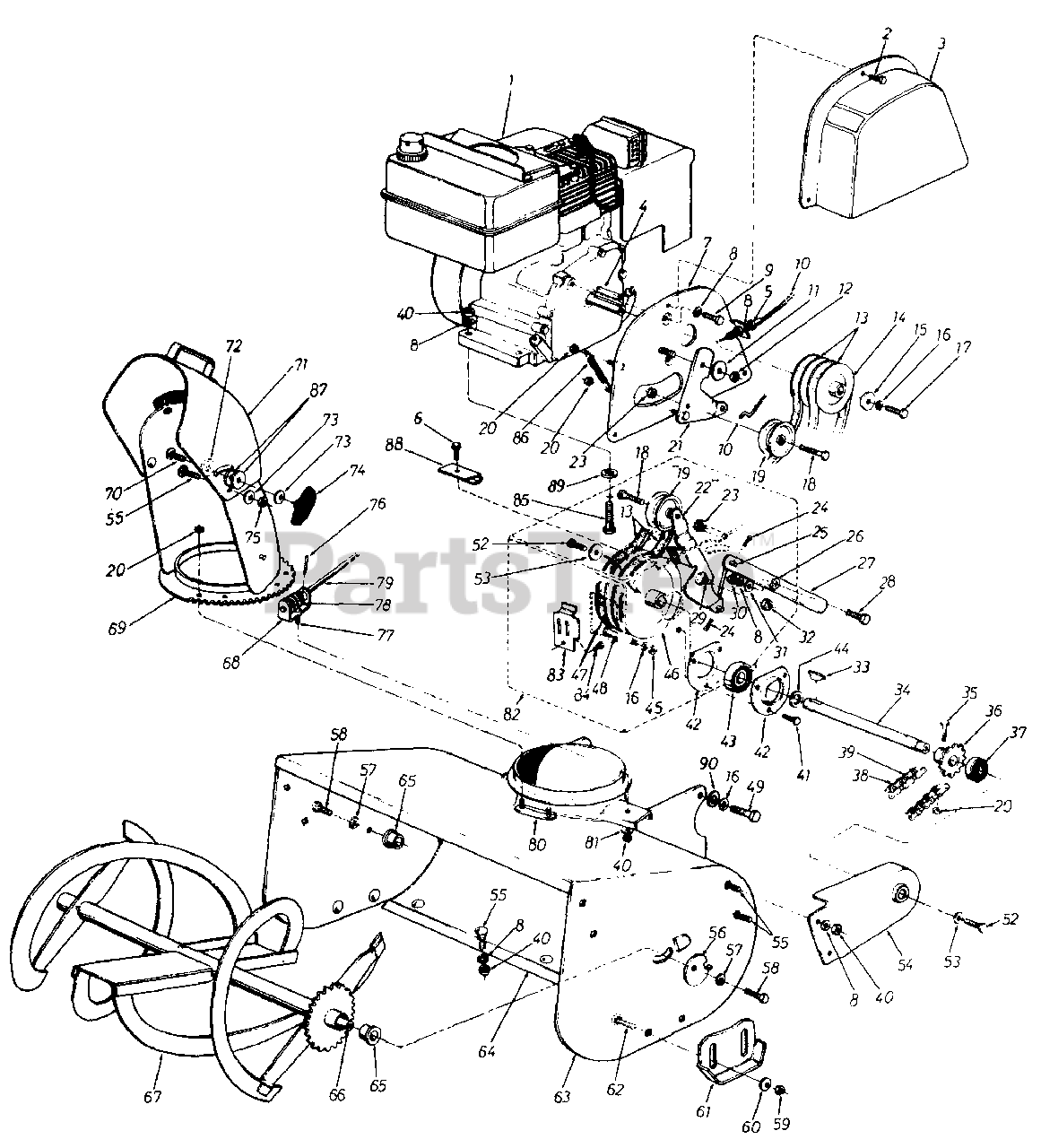

235 (235312) - Cub Cadet 20" Snow Thrower (1982) Spiral, Spiral Housing and Engine Plate Assemblies Parts Diagram

20" Snow Thrower

Spiral, Spiral Housing and Engine Plate Assemblies Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Cub Cadet 710-0599

Hex Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 05621

Belt Cover

$

$

Not available

4

Cub Cadet 714-0105

Sq. Key 3/16 x 1.00" Lg.
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

6

Cub Cadet 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 05821

Engine Plate Ass'y.

$

$

Currently unavailable

8

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0237

Hex Scr. 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet 746-0374

Drive Clutch Control Cable
(Superseded to 946-0374)

$55.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-0234

Fl-Wash. .39 I.D. x 1.50 O.D. x .060

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

13

Cub Cadet 754-0205

3 V-Belt 31.5" Lg.
(Superseded to 954-0205)

$27.99

$

In Stock, only 1 left!

0

14

Cub Cadet 756-0257

Engine Pulley

$

$

Not available

15

Cub Cadet 736-0235

Fl-Wash. .40 I.D. x 1.25 O.D. x .157
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 14

0

16

Cub Cadet 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0152

Hex Scr. 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0723

Hex Scr. 3/8-16 x 1.25" Lg.

$4.99

$

In Stock, only 3 left!

0

19

Cub Cadet 756-0137

Flat Idler 2.25 O.D.

$

$

Not available

20

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

21

Cub Cadet 05823

Drive Idler Bracket Ass'y.

$

$

Currently unavailable

22

Cub Cadet 05556

Thrower Idler Bracket Ass'y.

$

$

Currently unavailable

23

Cub Cadet 712-0266

Hex Cent. Jam L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 714-0111

Cotter Pin 3/32" Dia. x 1.00" Lg.

$4.99

$

In Stock, Qty 13

0

25

Cub Cadet 747-0174

Clutch Rod 5/16" Dia. x 2.88 Lg.

$

$

Currently unavailable

26

Cub Cadet 748-0233

Shoulder Spacer

$

$

Currently unavailable

27

Cub Cadet 05559

Thrower Clutch Bracket

$

$

Currently unavailable

28

Cub Cadet 710-0322

Hex Sems Scr. 5/16-18 x 1.00" Lg.

$

$

Not available

29

Cub Cadet 738-0281

Shoulder Scr. .625" Dia. x .170"

$10.99

$

In Stock, Qty 7

0

30

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

31

Cub Cadet 736-0231

Fl-Wash. .34 I.D. x 1.12 O.D. x .125

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-0266

Hex Cent. Jam L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 714-0138

Woodruff Key 5/32 x 5/8 Dia.

$

$

Not available

34

Cub Cadet 753-0206

Thrower Shaft 20" and Snap Ring

$

$

Not available

35

Cub Cadet 710-0606

Hex Scr. 1/4-20 x 1.50" Lg.

$5.49

$

In Stock, Qty 10

0

36

Cub Cadet 05156

14 Teeth Sprocket Hub Ass'y.

$

$

Not available

37

Cub Cadet 741-0155

Ball Bearing .625 I.D. x 1.38 O.D. x .438
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

38

Cub Cadet 713-0106

#41 Chain - 1/2" Pitch x 63 Links
(Superseded to 913-0106)

$

$

Not available

39

Cub Cadet 713-0723

#41-Master Link 1/2" Pitch Type II
(Superseded to 913-0723)

$

$

Not available

40

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 05244

Bearing Housing
(Superseded to 05244B)

$23.99

$

In Stock, only 2 left!

0

43

Cub Cadet 741-0174

Self Aligning Bearing .750 I.D.
(Superseded to 941-0174)

$125.99

$

Usually ships in 3-6 days

0

44

See Ref. No. 34

$

$

Not available

45

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

46

Cub Cadet 756-0258

1/2" V-Pulley .753 I.D.

$

$

Currently unavailable

47

Cub Cadet 756-0325

5.25" O.D. Pulley with 9 Teeth Sprocket

$

$

Currently unavailable

48

Cub Cadet 738-0117

Shoulder Scr. .498" Dia. x 2.475" Lg.
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

49

Cub Cadet 710-0623

Hex Self-Tap Scr. 3/8-16 x 75"

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 710-0538

Hex L-Scr. 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 9

0

53

Cub Cadet 736-0242

Belleville Wash. .34 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 05563

Chain Guard

$

$

Currently unavailable

55

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 06605

Chain Adjuster

$

$

Currently unavailable

57

Cub Cadet 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 20+

0

58

Cub Cadet 710-0152

Hex Scr. 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

60

Cub Cadet 736-0105

Belleville Wash. .40 I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 05571

Slide Shoe
(Superseded to 784-5038B-0637)

$27.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 710-0389

Carriage Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 10

0

63

Cub Cadet 05536

Spiral Housing Ass'y. 20"

Note: Color Code - 499

$

$

Currently unavailable

64

Cub Cadet 05001

Shave Plate

Variations

Cub Cadet 05001-0637

SHAVE PLATE - POWDER BLACK (0637)

$

$

Not available

$

$

65

Cub Cadet 748-0110

Flange Bearing .630 I.D.

$8.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 711-0520

Spiral Shaft

$

$

Not available

67

Cub Cadet 05539

Spiral Ass'y. - 20"

$

$

Currently unavailable

68

Cub Cadet 05515

Chute Bracket

$

$

Currently unavailable

69

Cub Cadet 05849

Chute Ass'y.

$

$

Currently unavailable

70

Cub Cadet 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg.

$3.99

$

In Stock, Qty 20+

0

71

Cub Cadet 05597

Top Chute Ass'y.

$

$

Currently unavailable

72

Cub Cadet 736-0179

Fl-Wash. .53 I.D. x 1.25 O.D. x .100

$4.99

$

In Stock, only 2 left!

0

73

Cub Cadet 736-0242

Belleville Wash. .34 I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 09966

Handle Knob Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

75

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

76

Cub Cadet 715-0103

Spring Pin Roll 1/8" Dia. x .75" Lg.

$

$

Not available

77

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

78

Cub Cadet 717-0301

Worm - R.H. with Three Thread

$

$

Currently unavailable

79

Cub Cadet 747-0313

Chute Crank

$

$

Currently unavailable

80

Cub Cadet 05783

Chute Flange Keeper Ass'y.

$

$

Not available

81

Cub Cadet 736-0242

Belleville Wash. .34 I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

82

Cub Cadet 05937

Frame Ass'y.

Note: Code N

$

$

Currently unavailable

83

Cub Cadet 05673

Belt Guard Plate

$

$

Currently unavailable

84

Cub Cadet 710-0726

Hex Wash. Self-Tapp Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

85

Cub Cadet 710-0442

Hex Scr. 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

86

Cub Cadet 732-0264

Extension Spring .38 O.D. x 2.50" Lg.
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

87

UNKNOWN

$

$

Not available

88

Cub Cadet 05810

Belt Guard

$

$

Currently unavailable

89

Cub Cadet 736-0264

Fl-Wash. .34 I.D. x .62 O.D. x .060

$6.99

$

In Stock, only 1 left!

0

90

Cub Cadet 736-0235

Fl-Wash. 3/8" I.D.
(Superseded to 736-0247)

Note: (Top L.H. Side Only)

$9.49

$

In Stock, Qty 14

0
