2348 LS (960430044-00) - Husqvarna 48" Lawn Tractor (2008-09) STEERING Parts Diagram

48" Lawn Tractor

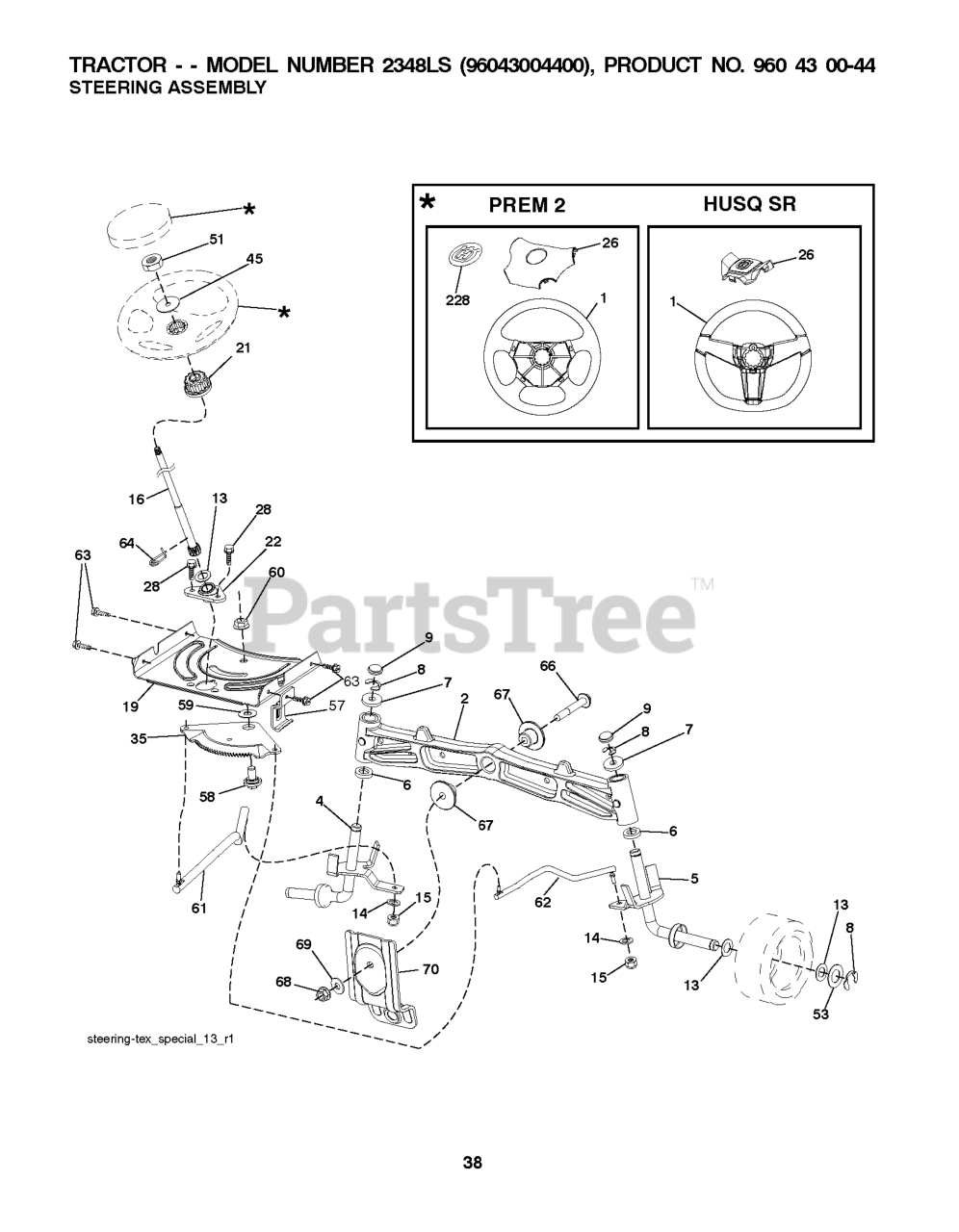

STEERING Parts Diagram

  • Title

53

Husqvarna 532188967

WASHER.HARDENED

Note: HARDENED .793 X 1.637 X .060

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 532415987

RP INSERT.CAP.WHL.STRG.HUSQ.
(Superseded to 532439743)

Note: WHEEL STEERING

$10.99

$

In Stock, only 1 left!

0

63

Husqvarna 817000512

SCREW
(Superseded to 532428867)

Note: 5/16-18 X 3/4

$6.49

$

In Stock, Qty 11

0

64

Husqvarna 532199849

RETAINER.CLIP.SPRING.S

Note: CLIP SPRING STEERING

$6.49

$

In Stock, Qty 8

0

70

Husqvarna 532196197

BRKT.DECK.SUSPENSION.F
(Superseded to 585338801)

Note: DECK SUSP. FRONT

$9.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532416480

RP WHEEL.STEER.HUSQ.PREM.OVMLD
(Superseded to 532439740)

Note: WHEEL

$93.99

$

In Stock, only 1 left!

0

16

Husqvarna 532408219

SHAFT, STEERING
(Superseded to 587738904)

Note: STEERING

$40.99

$

In Stock, Qty 14

0

66

Husqvarna 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

Note: HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, only 4 left!

0

57

Husqvarna 532197246

BRKT.UPSTOP.GT/LT.TEX

Note: UPSTOP

$12.99

$

In Stock, only 1 left!

0

45

Husqvarna 819183812

WASHER 9/16"ID, 2 3/8"OD

Note: 9/16 ID X 2-3/8 OD 12 GA.

$9.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532194729

PLATE.STEER.DDL.NLT/NG

Note: STEERING

$18.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532194737

BUSHING.PM.FRONT AXLE

Note: PM FRONT AXLE

$

$

Not available

22

Husqvarna 532194845

BUSHING.ASM.STEERING.A
(Superseded to 587738901)

Note: STRG. BLK

$17.99

$

In Stock, only 4 left!

0

15

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

Note: CROWN LOCK 3/8-24 UNF

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532121748

WASHER

Note: 25/32 X 1-5/8 X 16 GA.

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 817000612

SCREW, 3/8-16X3/4

Note: 3/8-16 X 3/4

$4.99

$

In Stock, only 2 left!

0

35

Husqvarna 532194732

GEAR.SECTOR.PLATE.DDL.

Note: SECTOR PLATE

$31.99

$

In Stock, Qty 20+

0

228

Husqvarna 532404484

DECAL.WHEEL.STRG.LGN.H

Note: WHEEL STEERING

$15.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532194748

WASHER.THURST.SECTOR.S

Note: THRUST SECTOR STEERING

$7.49

$

In Stock, only 3 left!

0

69

Husqvarna 532199162

WASHER.1.5X.505X.118

Note: 1.5 X .505 X .118

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 532121232

CAP.SPINDLE.BLACK

Note: SPINDLE

$4.99

$

In Stock, Qty 9

0

14

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

Note: LOCK HVY HLCL SPR 3/8

$4.99

$

In Stock, Qty 20+

0

60

Husqvarna 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

Note: FLANGE LOCK 5/8-11

$7.49

$

In Stock, only 1 left!

0

13

Husqvarna 532121749

WASHER

Note: 25/32 X 1-1/4 X 16 GA.

$3.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532194741

DRAGLINK.RH.BALLSTUD.D

Note: RH

$13.99

$

In Stock, Qty 20+

0

21

Husqvarna 532186737

ADAPTER, WHEEL STNG..
(Superseded to 587738905)

Note: STEERING

$9.49

$

In Stock, Qty 8

0

51

Husqvarna 873940800

NUT.HEX.1/2-20

Note: HEX JAM TOPLOCK 1/2-20 UNF

$7.49

$

In Stock, only 4 left!

0

68

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

Note: LOCK FLANGE 7/16-14 GR. 5

$7.49

$

In Stock, Qty 14

0

5

Husqvarna 532403088

SPINDLE.WELDED.RH.15"T
(Superseded to 538691201)

Note: "ASM., RH "

$22.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532195968

AXLE.CAST.IRON
(Superseded to 532413591)

Note: "ASM., FRONT "

$145.99

$

In Stock, only 2 left!

0

58

Husqvarna 532194747

BOLT.SHOULDER.SECTOR.P

Note: SHOULDER SECTOR PIVOT CFM

$9.49

$

In Stock, only 3 left!

0

8

Husqvarna 812000029

RING CLIP

Note: KLIP #T5304-75

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

Note: RACE THRUST HARDEN

$7.49

$

In Stock, Qty 11

0

4

Husqvarna 532403087

SPINDLE.WELDED.LH.15"TEX
(Superseded to 596873601)

Note: "ASM., LH "

$17.99

$

In Stock, Qty 12

0

61

Husqvarna 532194740

DRAGLINK.LH.BALLSTUD.D
(Superseded to 597047801)

Note: LH

$12.99

$

Usually ships in 3-10 days

0
