2346 XLS (960430045-00) - Husqvarna 46" Lawn Tractor (2008-01) Electrical Parts Diagram

46" Lawn Tractor

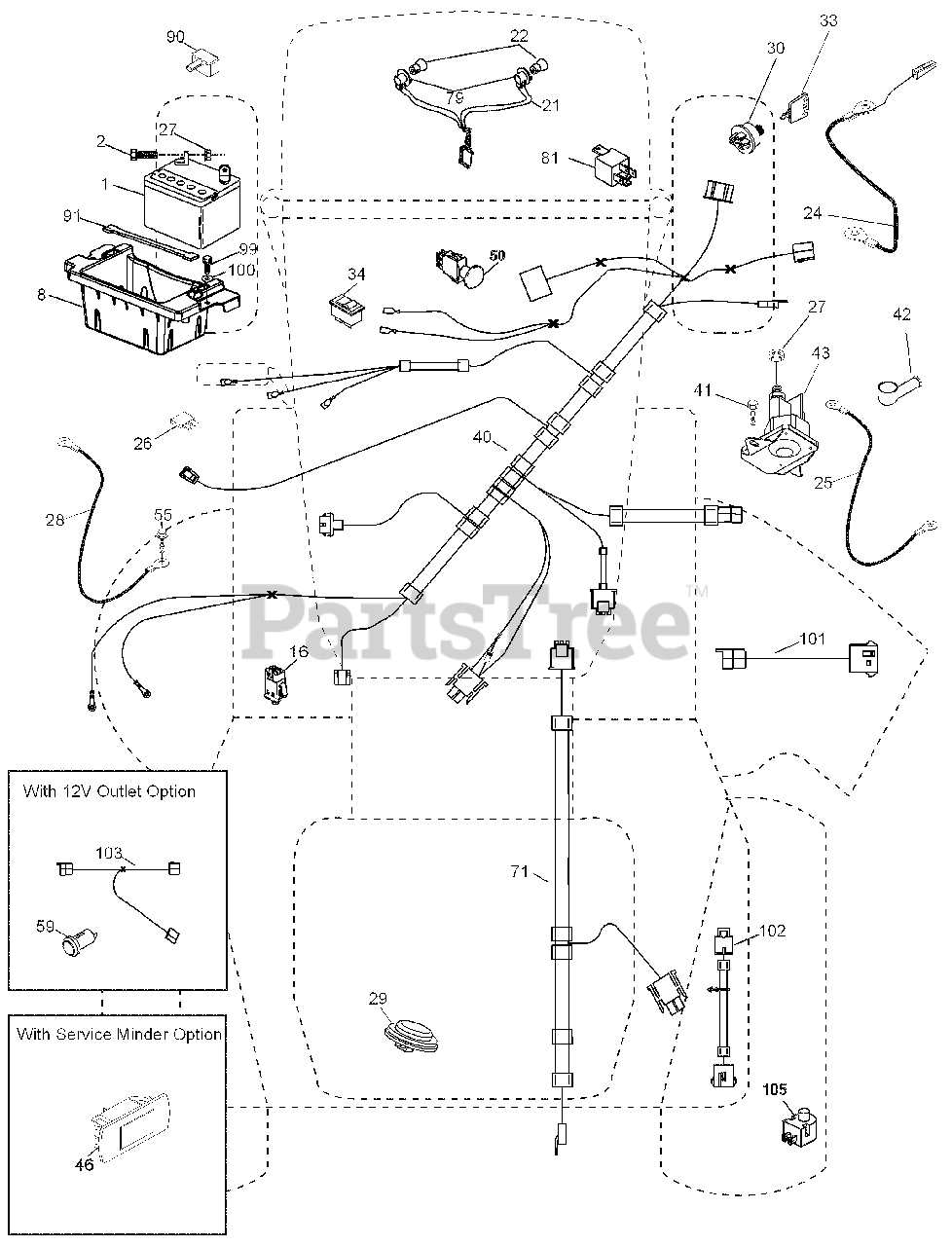

Electrical Parts Diagram

  • Title
1

Husqvarna 532163465

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

Bolt Hex Head 1/4-20 x 3/4

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532186491

Box Battery

$

$

Not available

16

Husqvarna 532176138

Switch Interlock Push-In

$22.99

$

In Stock, Qty 5

0

21

Husqvarna 532183759

Harness Socket Light w/4152J

$47.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

Bulb Light

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532400253

Cable Battery 8"
(Superseded to 585555601)

$9.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532412895

Cable Starter
(Superseded to 585555501)

$9.49

$

In Stock, only 2 left!

0

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

28

Husqvarna 532145491

Cable, Ground

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532401545

Switch, Seat

$39.99

$

In Stock, Qty 6

0

30

Husqvarna 532193350

Switch, Ign

$22.99

$

Usually ships in 3-10 days

0

33

$10.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532110712

Switch Light/Reset

$9.49

$

In Stock, only 2 left!

0

40

Husqvarna 532409614

Harness Ign. Dash

$

$

Not available

41

Husqvarna 817720408

Screw Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover, Terminal
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 532192507

Solenoid
(Superseded to 582042802)

$26.99

$

In Stock, Qty 16

0

46

Husqvarna 532401763

Gauge Service Reminder Hrmtr
(Superseded to 594919101)

$24.99

$

In Stock, Qty 5

0

50

Husqvarna 532174651

Switch PTO
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

55

Husqvarna 817060512

Screw Thdrol 5/16-18 x 3/4 TYTT
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532400303

Outlet 12-Volt

$27.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532194276

Harness Ign.

$40.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532175242

Socket Asm Bulb Twistlock

$18.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532409615

Relay Harness Sealed

$34.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532400724

Cover Terminal

$4.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532190270

Strap Battery Mount

$9.99

$

In Stock, Qty 13

0

99

Husqvarna 817670412

Screw 1/4-20 x 3/4

$6.49

$

In Stock, only 2 left!

0

100

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

101

Husqvarna 532198317

Harness Pigtail

$9.99

$

Usually ships in 3-10 days

0

102

Husqvarna 532404454

Harness Pigtail

$26.99

$

Usually ships in 3-10 days

0

103

Husqvarna 532407962

Harness 12-Volt Pigtail

$15.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532407568

Switch Reverse TT Pedal Control

$18.99

$

In Stock, only 2 left!

0
