23450 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) MOWER HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

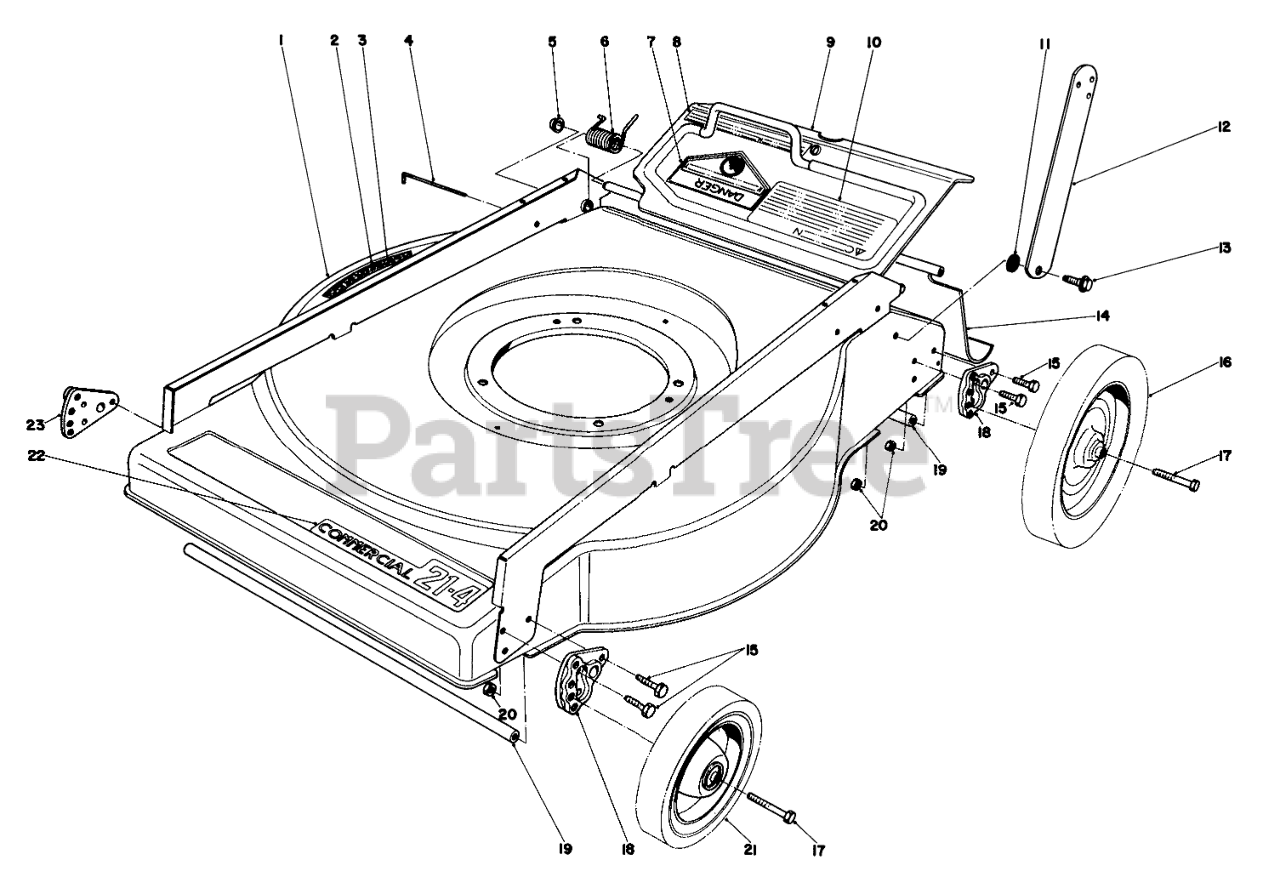

MOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 8-8549

Housing W/Decals (Incl. Ref. #3 & 22)

$

$

Not available

2

Toro 37-0030

PAD STEP

$

$

Not available

3

Toro 36-2820

Decal Step Pad

$

$

Not available

4

Toro 33-3204

SHIELD ROD

$

$

Not available

5

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

6

Toro 37-9420

TORSION SPRING

$

$

Not available

7

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

8

Toro 39-9090

Decal-Door

$

$

Not available

9

Toro 8-8559

Rear Door (Incl. Ref. #7, 8 & 10)

$

$

Not available

10

Toro 29-4720

DECAL SAF INST

$

$

Not available

11

Toro 27-6510

HANDLE LATCH SPACER

$5.49

$

Usually ships in 3-6 days

0

12

Toro 39-5970

LONG HANDLE STRUT

$

$

Not available

13

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

14

Toro 40-6690

REAR SAFETY SHIELD

$

$

Not available

15

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 39-0280

WHEEL ASM

$

$

Not available

17

Toro 324-9

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

18

Toro 39-0090

Wheel Quadrant (B)

$

$

Not available

19

Toro 39-4190

Tie Rod

$

$

Not available

20

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

21

Toro 40-5120

WHEEL & TIRE ASM

$

$

Not available

22

Toro 40-6620

Decal 214 Commercial
(Superseded to 40-6590)

$

$

Not available

23

Toro 39-0080

WHEEL QUADRANT (A)

$

$

Not available

Toro 8-8209

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
