23450 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) GRASS CATCHER ASSEMBLY Parts Diagram

Walk-Behind Mower

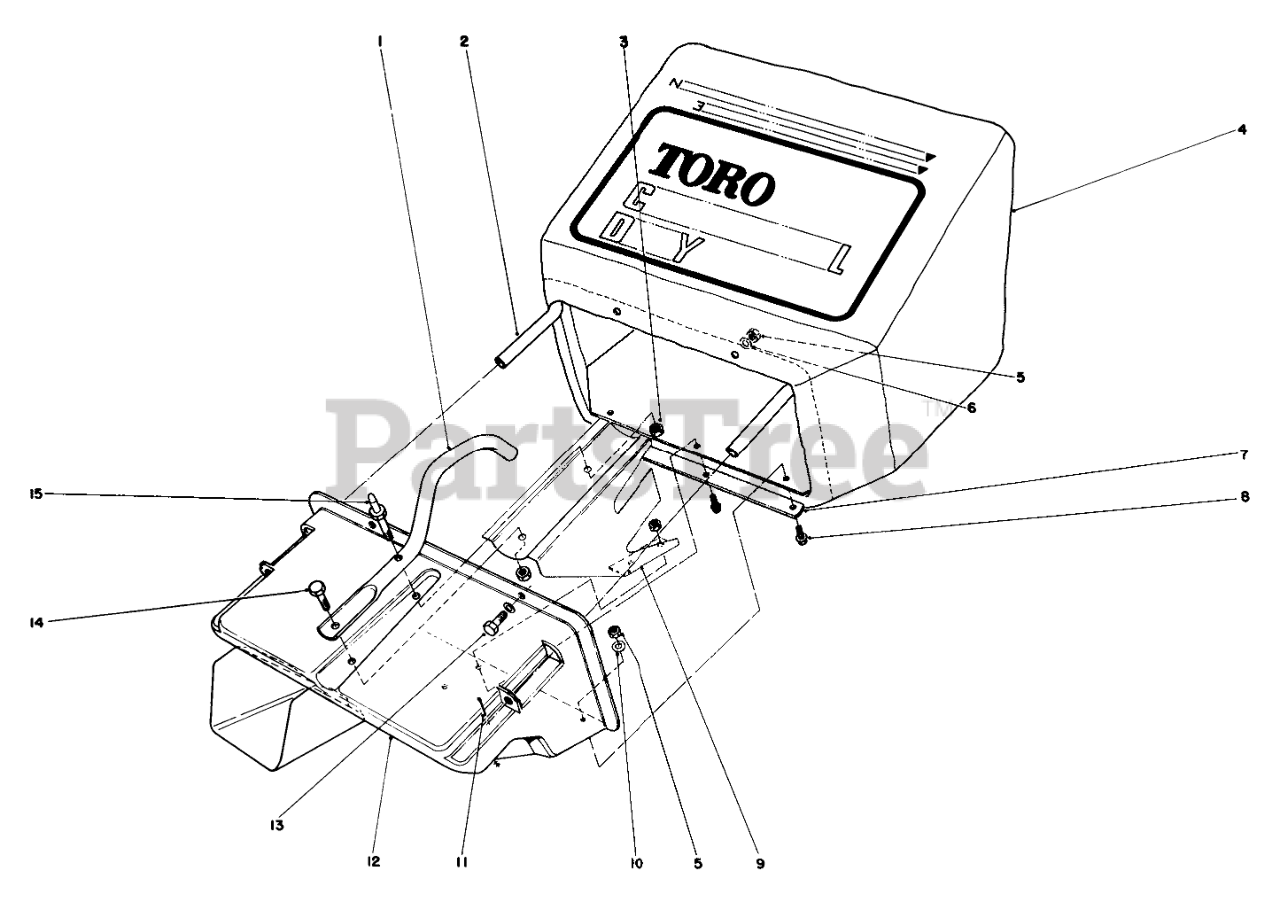

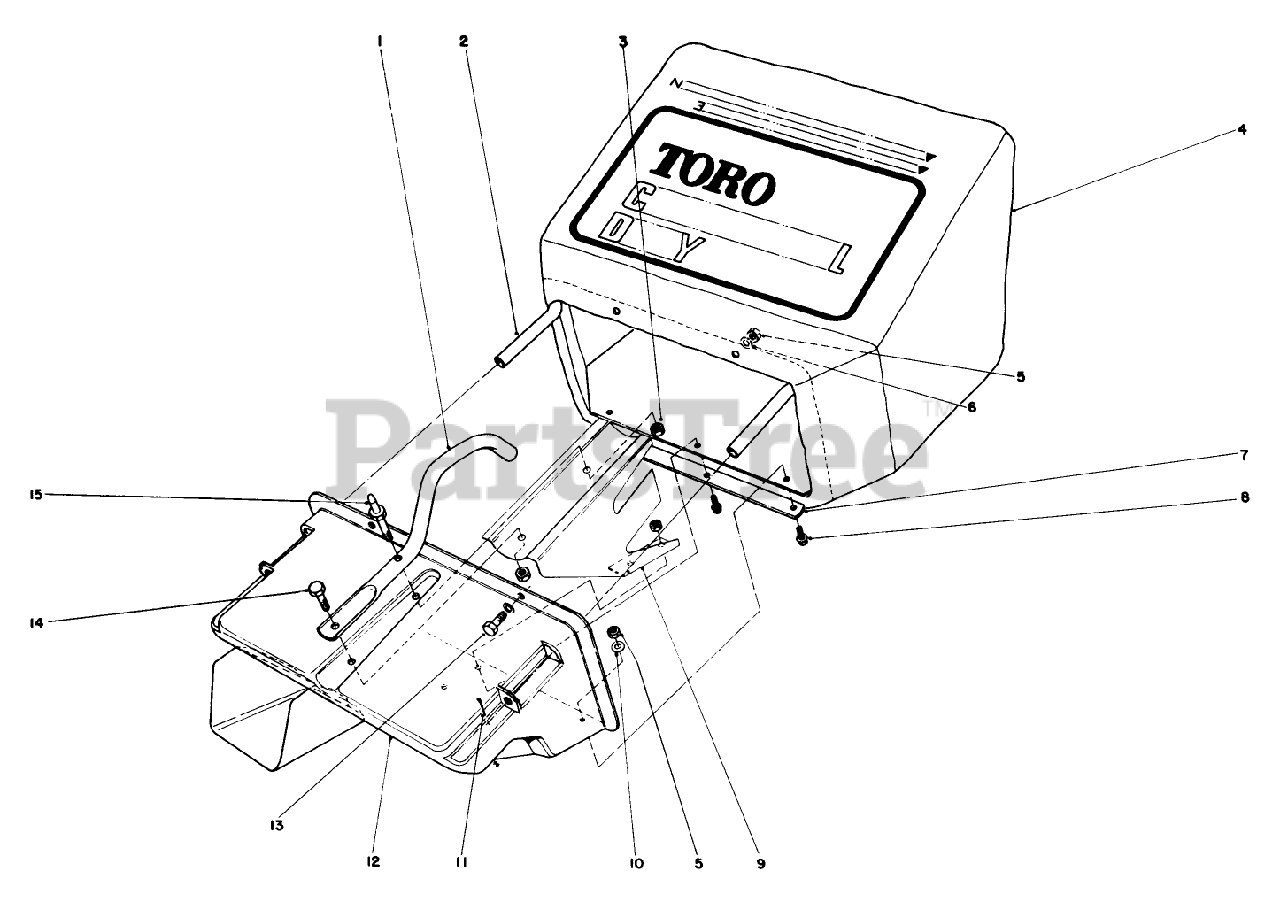

GRASS CATCHER ASSEMBLY Parts Diagram

  • Title
1

Toro 38-0520

BAG HANDLE

$

$

Not available

2

Toro 39-0200

Bag Frame

$

$

Not available

3

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

4

Toro 8-8779

Grass Bag

$

$

Not available

5

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

6

Toro 325649

Washer

$

$

Currently unavailable

7

Toro 38-4690

BAG RETAINER

$

$

Not available

8

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

9

Toro 38-1120

BAFFLE-BAG SHELL

$34.99

$

Usually ships in 3-6 days

0

10

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

12

Toro 38-1232

Bag Shell

$

$

Not available

13

Toro 32514

Screw

$

$

Currently unavailable

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 38-0530

HANDLE STUD

$

$

Not available
