23450 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

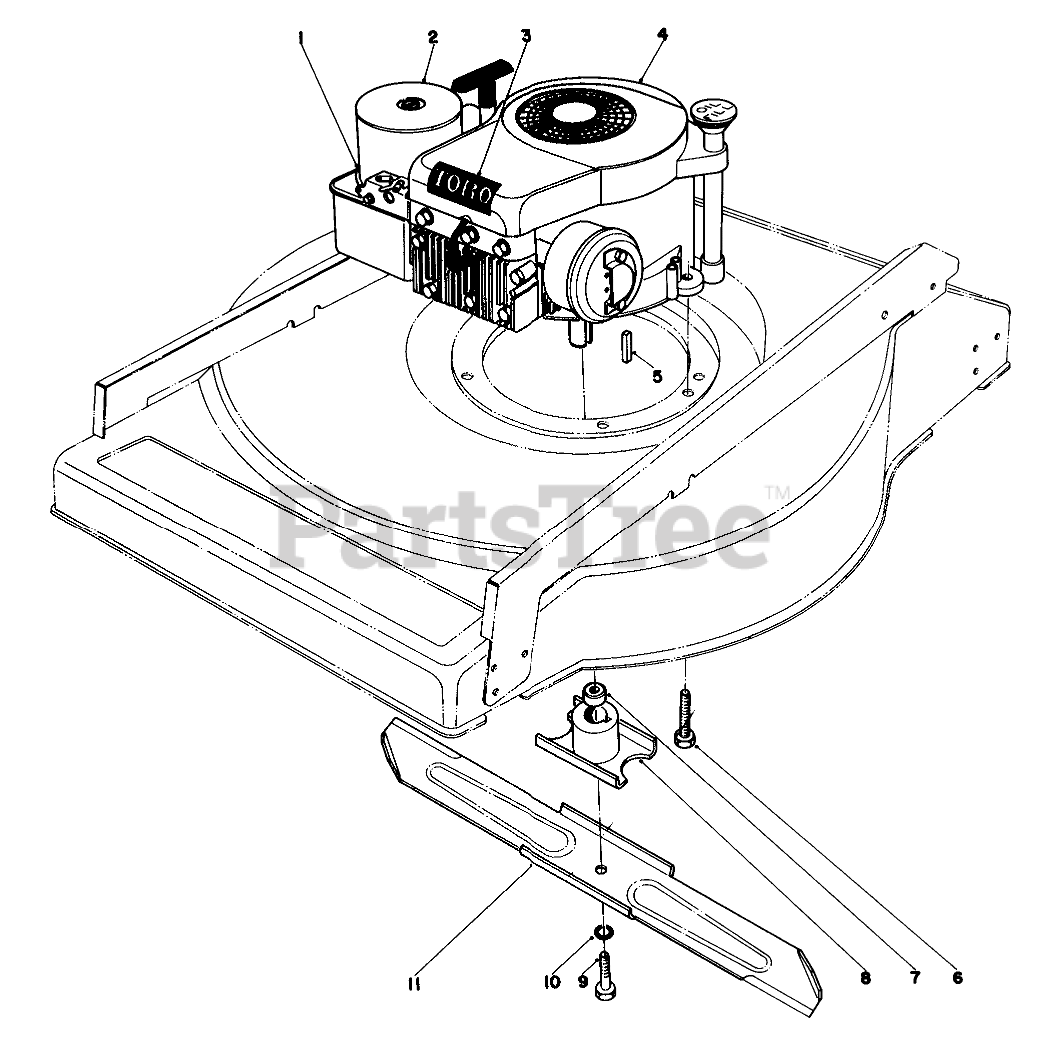

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 39-6820

AIR CLEANER BASE

$

$

Not available

2

Toro 39-6840

Air Cleaner Cover

$

$

Not available

3

Toro 23-0810

Decal

$

$

Not available

4

Toro 221-662

Engine

$

$

Currently unavailable

5

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

6

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

7

Toro 39-2620

SPACER,BLADE RETAINER

$

$

Not available

8

Toro 39-2600

BLADE RETAINER WA

$95.99

$

Usually ships in 3-6 days

0

9

Toro 23-0080

BLADE SCREW

$

$

Not available

10

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

11

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$28.99

$

Usually ships in 3-6 days

0
