23450 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) REMOTE FUEL TANK KIT 39-5910 Parts Diagram

Walk-Behind Mower

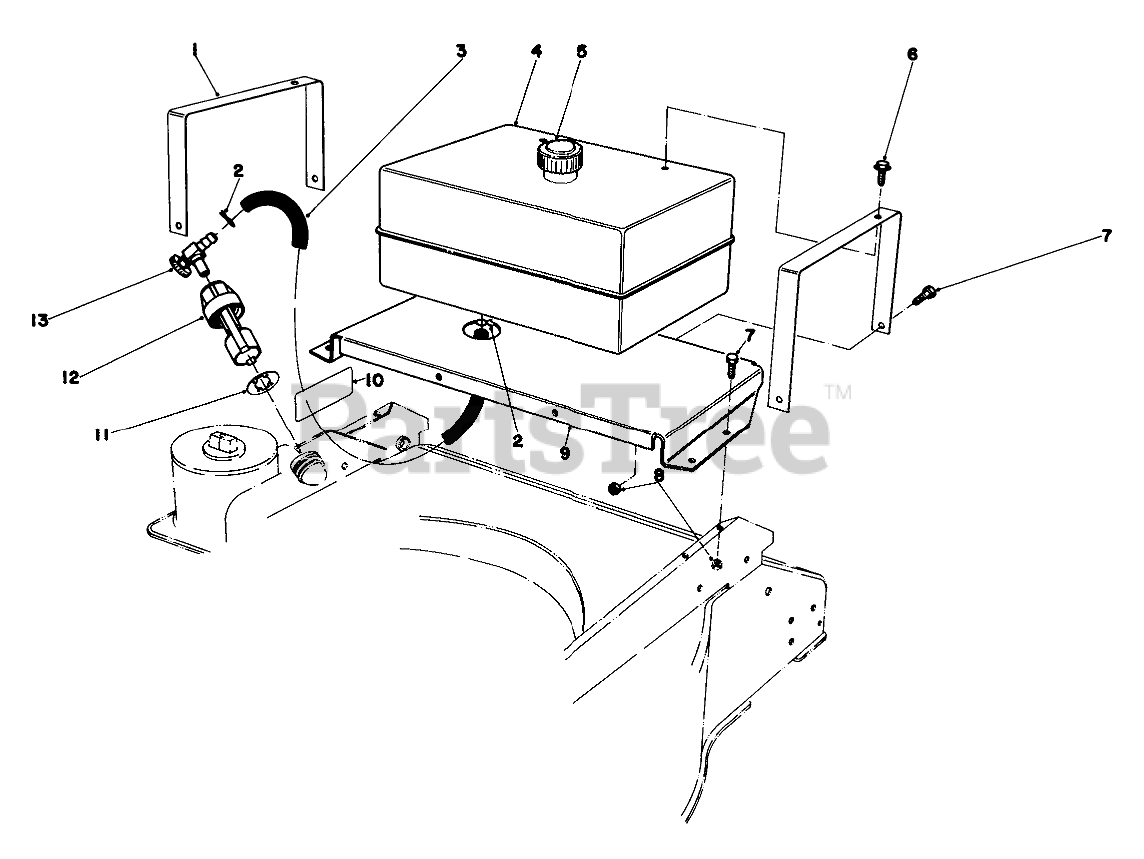

REMOTE FUEL TANK KIT 39-5910 Parts Diagram

  • Title
1

Toro 39-3960

Tank Strap

$

$

Not available

2

Toro 2210-87

Clamp
(Superseded to 2412-36)

$2.49

$

Usually ships in 3-6 days

0

3

Toro 39-6920

Fuel Line
(Superseded to 109-0296)

$10.99

$

In Stock, only 4 left!

0

4

Toro 2210-228

Fuel Tank

$

$

Not available

$

$

Not available

6

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 6

0

7

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

9

Toro 39-2640

Fuel Tank Mtg. Bracket

$

$

Not available

10

Toro 28-6910

Decal-Caution

$

$

Not available

11

Toro 28-4850

GASKET

$

$

Not available

12

Toro 28-4840

Fuel Control Valve (Incl. Ref. #11)

$

$

Not available

13

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available
