23400 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) MOWER HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

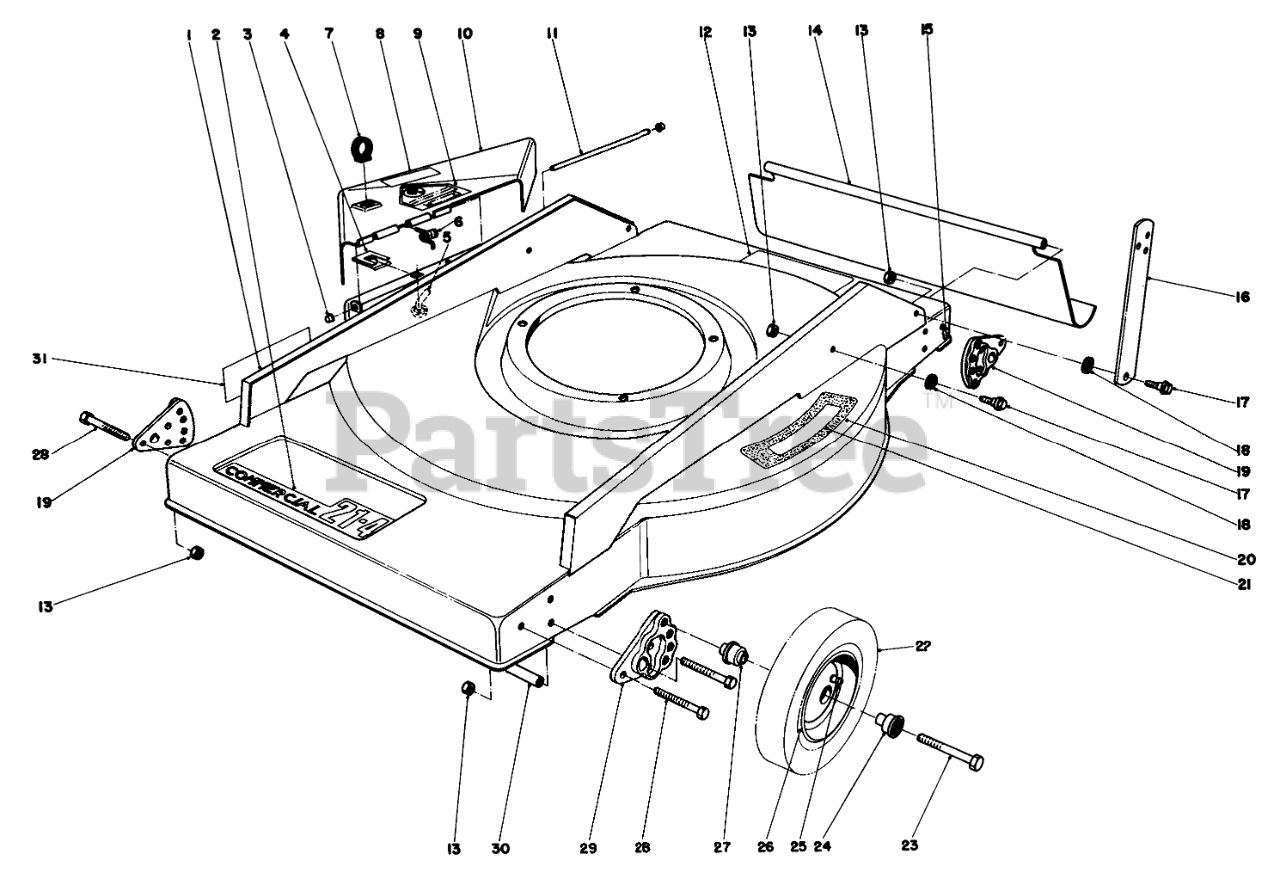

MOWER HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 8-8089

Housing (Incl. Ref. #2, 12, 21 & 31)

$

$

Not available

2

Toro 40-6620

Decal 214 Commercial
(Superseded to 40-6590)

$

$

Not available

3

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

4

Toro 28-3250

BAG CHUTE CLIP PIN

$

$

Not available

5

Toro 28-3260

BAG CHUTE PIN

$

$

Not available

6

Toro 28-1560

TORSION SPRING

$

$

Not available

7

Toro 28-1430

LIFT LOOP

$

$

Not available

8

Toro 39-9130

DECAL DEFLECTOR

$

$

Not available

9

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

10

Toro 8-8539

Deflector (Incl. Ref. #8 & 9)
(Superseded to 11-8579)

$122.99

$

Usually ships in 3-6 days

0

11

Toro 36-6350

DEFLECTOR PIVOT ROD

$

$

Not available

12

Toro 29-4720

DECAL SAF INST

$

$

Not available

13

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

14

Toro 40-6690

REAR SAFETY SHIELD

$

$

Not available

15

Toro 33-3204

SHIELD ROD

$

$

Not available

16

Toro 39-5960

Handle Strap

$

$

Not available

17

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

18

Toro 27-6510

HANDLE LATCH SPACER

$5.49

$

Usually ships in 3-6 days

0

19

Toro 39-0090

Wheel Quadrant (B)

$

$

Not available

20

Toro 37-0030

PAD STEP

$

$

Not available

21

Toro 36-2820

Decal Step Pad

$

$

Not available

22

$

$

Not available

23

Toro 324-9

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

24

Toro 40-6370

Bearing

$

$

Not available

25

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

26

Toro 40-5120

Wheel 8" (Incl. Ref. #22, 24, 25 & 27)

$

$

Not available

27

Toro 40-6371

Bearing

$

$

Not available

28

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 39-0080

WHEEL QUADRANT (A)

$

$

Not available

30

Toro 40-6710

Rod-Tie

$

$

Not available

31

Toro 39-9120

DECAL CAUTION
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0
