23400 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) ENGINE BRIGGS & STRATTON MODEL 110908-0492-01 Parts Diagram

Walk-Behind Mower

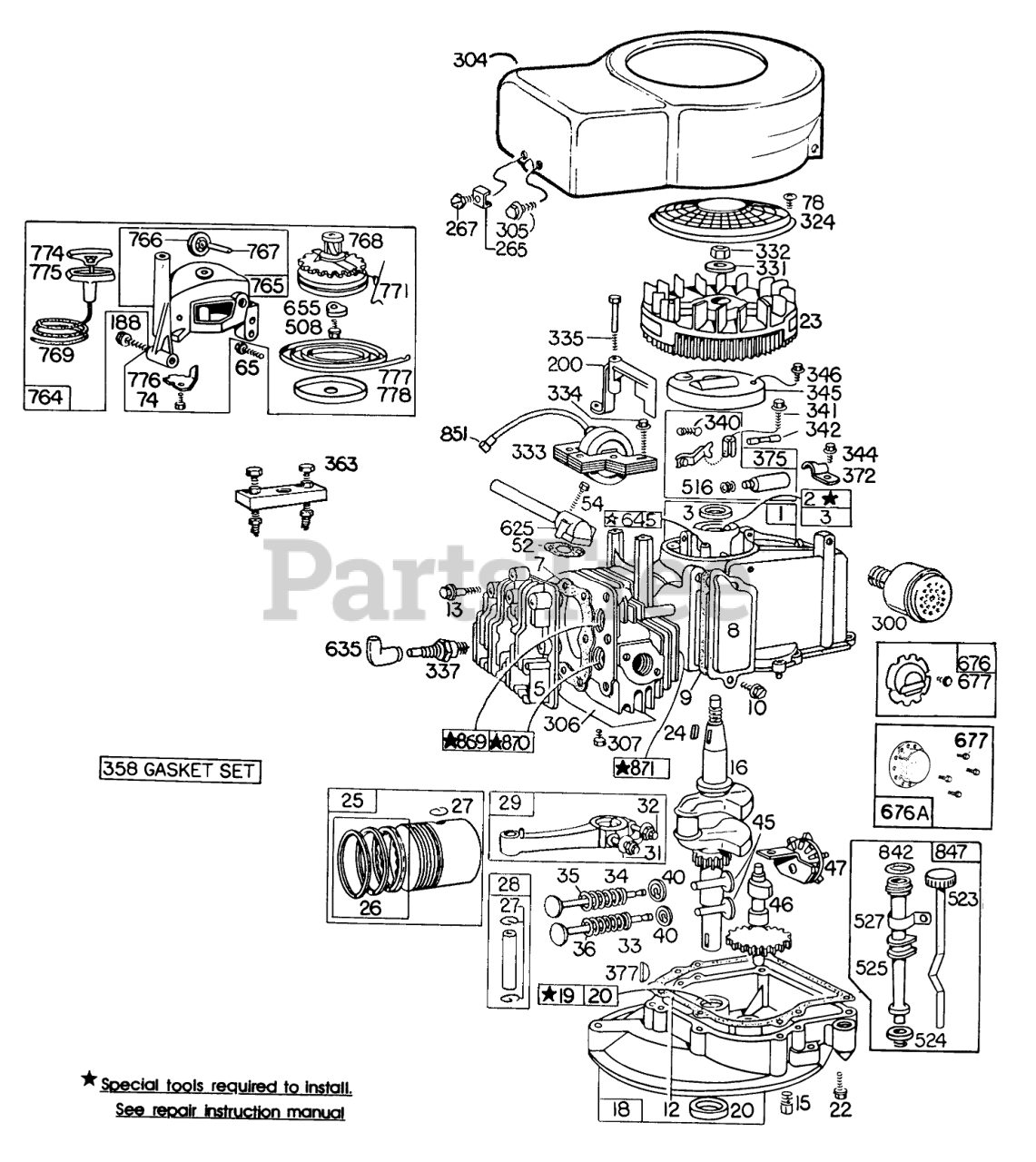

ENGINE BRIGGS & STRATTON MODEL 110908-0492-01 Parts Diagram

  • Title

1

Briggs & Stratton 391639

Cylinder Assembly
(Superseded to 395998)

$223.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 211851

Head-Cylinder
(Superseded to 5021185X1)

$

$

Not available

7

Briggs & Stratton 270836

Gasket-Cylinder Hd,
(Superseded to 272171)

Note: Included in Gasket Set Part No. 391662.

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 298383

Breather-Valve
(Superseded to 791781)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 270239

Gasket Valve Cover
(Superseded to 695890)

Note: Included in Gasket Set Part No. 391662.

$4.49

$

In Stock, only 3 left!

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 270833

Gasket-Crankcase-.015" thick
(Superseded to 692218)

Note: Included in Gasket Set Part No. 391662.

$

$

Not available

Briggs & Stratton 270895

Gasket-Crankcase .005"

Note: Included in Gasket Set Part No. 391662.

$9.99

$

In Stock, only 4 left!

0

Briggs & Stratton 270896

Gasket-Crankcase .009"

Note: Included in Gasket Set Part No. 391662.

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 93111

Screw-Cylinder Hd.
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 91084

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 261353

Crankshaft

$136.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 392381

Sump-Oil
(Superseded to 394305)

$56.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 293709

Bushing-Oil Base

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391483

Seal-Oil
(Superseded to 391483S)

$5.99

$

In Stock, Qty 6

0

22

Briggs & Stratton 93032

Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 391488

Flywheel-Magneto
(Superseded to 496896)

$99.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 61760

Key Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 391650

Piston Assembly-Std.

$63.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391651

Piston Assy.-.010" O.S.

$37.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391652

Piston Assy.-.020" O.S.

$37.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391653

Piston Assy.-.030" O.S.

$110.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391654

Ring Set-Std.Piston

$

$

Not available

26

Briggs & Stratton 391656

Ring Set-.010" O.S. Piston

$22.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391658

Ring Set-.020" O.S. Piston

$18.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391660

Ring Set-.030" O.S. Piston

$27.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 391649

Pin Assembly-Piston-Std.

$3.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 391640

Rod Assembly-Connecting
(Superseded to 490566)

$39.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222390

Lock-Connecting Rod Screw
(Superseded to 222282)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 93670

Screw-Connecting Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 212004

Valve-Exhaust

$31.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 261233

Valve Intake

$

$

Not available

35

Briggs & Stratton 260552

Spring-Valve
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

36

Briggs & Stratton 26478

1531A GIL 3 1/2HP T
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 261250

Tappet-Valve

$8.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 212021

Gear-Cam

$55.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 294652

Oil Slinger Gear & Bracket
(Superseded to 698690)

$15.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270844

Gasket Intake Elbow

Note: Included in Gasket Set Part No. 391662.

$13.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 93485

Screw Intake Elbow Mtg.
(Superseded to 691111)

$3.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 93587

Screw-Starter Mounting
(Superseded to 691083)

$5.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

78

Briggs & Stratton 93758

Screw-Sem
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

200

Briggs & Stratton 68388

Blade Governor

$26.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, only 4 left!

0

267

Briggs & Stratton 93469

Screw
(Superseded to 691044)

$3.99

$

In Stock, Qty 6

0

300

Briggs & Stratton 391435

Muffler-Exhaust
(Superseded to 394569S)

$10.99

$

In Stock, only 1 left!

0

304

Briggs & Stratton 391636

Housing-Blower

$29.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 3 left!

0

306

Briggs & Stratton 222394

Shield-Cylinder
(Superseded to 223263)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

324

Briggs & Stratton 280140

Screen-Rotating
(Superseded to 280784)

$9.49

$

Usually ships in 2-12 days

0

331

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 298502

Armature-Magneto
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93435

Screw-Armature & Governor Blade
(Superseded to 691107)

$3.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

340

Briggs & Stratton 26018

Spring Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

344

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 220366

Cover Breaker Pt. & Cond.

$11.99

$

In Stock, only 2 left!

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

358

Briggs & Stratton 391662

Gasket Set

$40.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

372

Briggs & Stratton 220477

Camp-Condenser

$1.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Set

$

$

Not available

377

Briggs & Stratton 93065

Key-Woodruff
(Superseded to 692193)

$3.99

$

In Stock, only 1 left!

0

508

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

516

Briggs & Stratton 260374

Spring Connector

$7.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 391838

Cap with Dipstick-Oil Filler
(Superseded to 495234)

$14.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 68838

Seal-Fill Tube
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 280131

Tube-Oil Filler

$12.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 222549

Clamp-Oil Filler Tube

$10.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 391377

Tube-Fuel Intake

$11.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

645

Briggs & Stratton 23513

Bushing-Plunger

$2.49

$

Usually ships in 2-12 days

0

655

Briggs & Stratton 222057

Anchor-Spring

$6.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393760

Deflector-Exhaust

$9.49

$

Usually ships in 2-12 days

0

764

Briggs & Stratton 392064

Vertical Pull

$55.99

$

Usually ships in 2-12 days

0

765

Briggs & Stratton 392138

Housing-Vert. Pull Starter

$39.99

$

Usually ships in 2-12 days

0

766

Briggs & Stratton 280022

Duct Body

$11.99

$

Usually ships in 2-12 days

0

767

Briggs & Stratton 231048

Pin-Small Rope Pulley

$3.49

$

Usually ships in 2-12 days

0

768

Briggs & Stratton 299948

Pulley and Gear Assy.

$22.99

$

Usually ships in 2-12 days

0

769

Briggs & Stratton 66734

Rope-Starter (48.6")

$6.49

$

In Stock, Qty 12

0

771

Briggs & Stratton 299961

Clip-Starter

$6.49

$

Usually ships in 2-12 days

0

774

Briggs & Stratton 280121

Insert-Starter Handle
(Superseded to 393152)

$4.99

$

Usually ships in 2-12 days

0

775

Briggs & Stratton 280036

Grip-Starter Rope
(Superseded to 393152)

$4.99

$

Usually ships in 2-12 days

0

776

Briggs & Stratton 222049

Guide Rope

$3.99

$

Usually ships in 2-12 days

0

777

Briggs & Stratton 390066

Spring-Starter

$20.99

$

In Stock, only 1 left!

0

778

Briggs & Stratton 280021

Cover-Starter

$

$

Not available

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 392056

Filler Group-Oil

$12.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 210879

Seat-Intake Valve

$6.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Exhaust Valve
(Superseded to 691702)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide

$14.99

$

Usually ships in 2-12 days

0

676A

Briggs & Stratton 392190

Spark Arrestor
(Superseded to 590745)

$42.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0
