23378 - Gravely Steering Brake Kit for 5000 Series 2-Wheel Tractor STEERING BRAKE KIT Parts Diagram

Steering Brake Kit for 5000 Series 2-Wheel Tractor

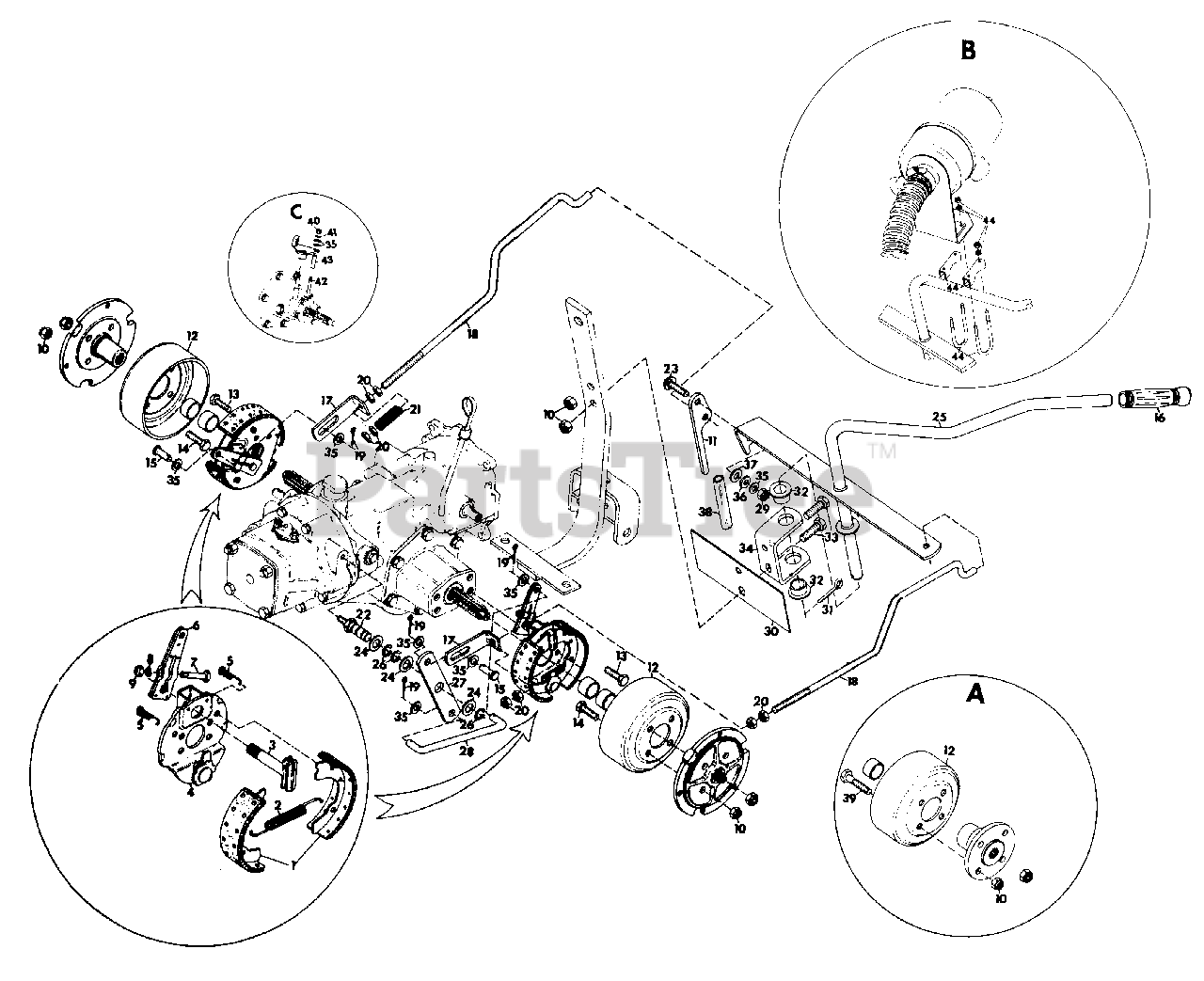

STEERING BRAKE KIT Parts Diagram

  • Title
1

Gravely 023539

KIT, BRAKE SHOE
(Superseded to 08530400)

$268.99

$

Usually ships in 4-12 days

0

2

Gravely 023508

SPRING, SHOE RETURN
(Superseded to 08530200)

$21.99

$

Usually ships in 4-12 days

0

3

Gravely 023506

CAM, BRAKE
(Superseded to 08530000)

$271.99

$

In Stock, only 1 left!

0

4

Gravely 023507

PLATE, BACK
(Superseded to 08530100)

$

$

Not available

5

Gravely 023509

SPRING, SHOE RETAINING
(Superseded to 08530300)

$

$

Not available

6

Gravely 023505

ARM, CAM LEVER
(Superseded to 08529900)

$79.99

$

In Stock, only 1 left!

0

7

Gravely 181618

BOLT, HEX 5/16-24X1.75
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

8

Gravely 120214

WASHER, LOCK 5/16 SP
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 120368

NUT, HEX 5/16-24
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 435507

NUT, LOCK, 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 023391

HANDLE, PARKING BRAKE
(Superseded to 08529500)

$45.99

$

Usually ships in 4-12 days

0

12

Gravely 023385

DRUM, 7X1.75
(Superseded to 04903400)

$

$

Not available

13

Gravely 180121

BOLT, HEX 3/8-16X.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

14

Gravely 180176

BOLT, HEX 1/2-13X1.375
(Superseded to 05935800)

$

$

Not available

15

Gravely 431780

PIN, CLEVIS .375X.750
(Superseded to 08573400)

$

$

Not available

16

Gravely 010671

GRIP, HAND
(Superseded to 20046100)

$17.99

$

In Stock, only 1 left!

0

17

Gravely 023389

BRACKET, ADJUSTMENT
(Superseded to 08529400)

$51.99

$

Usually ships in 4-12 days

0

18

Gravely 024568

ROD, BRAKE
(Superseded to 08598700)

$90.99

$

In Stock, only 1 left!

0

19

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

20

Gravely 124829

NUT, JAM 3/8-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 023392

SPRING, COMPRESSION
(Superseded to 08330200)

$82.99

$

Usually ships in 4-12 days

0

22

Gravely 023386

STUD, PIVOT
(Superseded to 08529200)

$64.99

$

Usually ships in 4-12 days

0

23

Gravely 126411

BOLT, 3/8-16X1.50 RD HD SQ NK
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

24

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 023379

WELDMENT, BRAKE HANDLE BAR

$

$

Not available

26

Gravely 018053

E-RING, .625 SHAFT
(Superseded to 05708300)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 023387

PLATE, PIVOT
(Superseded to 08529300)

$

$

Not available

28

Gravely 023388

ROD, BRAKE LINK
(Superseded to 08598600)

$

$

Not available

29

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

30

Gravely 023383

PLATE, INSTRUCTION
(Superseded to 08528900)

$

$

Not available

31

Gravely 103409

PIN, COTTER .188X1.500
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

32

Gravely 018355

BUSHING, PIVOT
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

33

Gravely 180179

BOLT, HEX 1/2-13X1.75
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

34

Gravely 023382

SUPPORT, BRAKE HANDLE
(Superseded to 08528800)

$

$

Not available

35

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 023394

WASHER, RUBBER .375X.750X.125
(Superseded to 06433700)

$

$

Not available

37

Gravely 020775

WASHER, NYLON .375X.75X.060
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

38

Gravely 023393

GRIP, PARKING BRAKE HANDLE
(Superseded to 07529200)

$

$

Not available

39

Gravely 180178

BOLT, HEX 1/2-13X1.625
(Superseded to 05935900)

$

$

Not available

40

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

41

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 024383

BOLT, 1/4-20X2.25 GRADE 8 PLATED
(Superseded to 05901638)

$3.99

$

In Stock, only 2 left!

0

43

Gravely 024382

BUSHING
(Superseded to 08531000)

$38.99

$

Usually ships in 4-12 days

0

44

Gravely 014728

CLAMP, MUFFLER
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

45

Gravely 023384

BRAKE, 7X1.75 MECHANICAL
(Superseded to 08529900)

$79.99

$

In Stock, only 1 left!

0

46

Gravely 102905

SCREW, SET 7/16-14X.75 CPSH
(Superseded to 06005100)

$

$

Not available
