23375 - Toro 21" Walk-Behind Mower (SN: 000000001 - 000999999) (1980) ENGINE TECUMSEH MODEL NO. TVS 600-661-07 Parts Diagram

21" Walk-Behind Mower

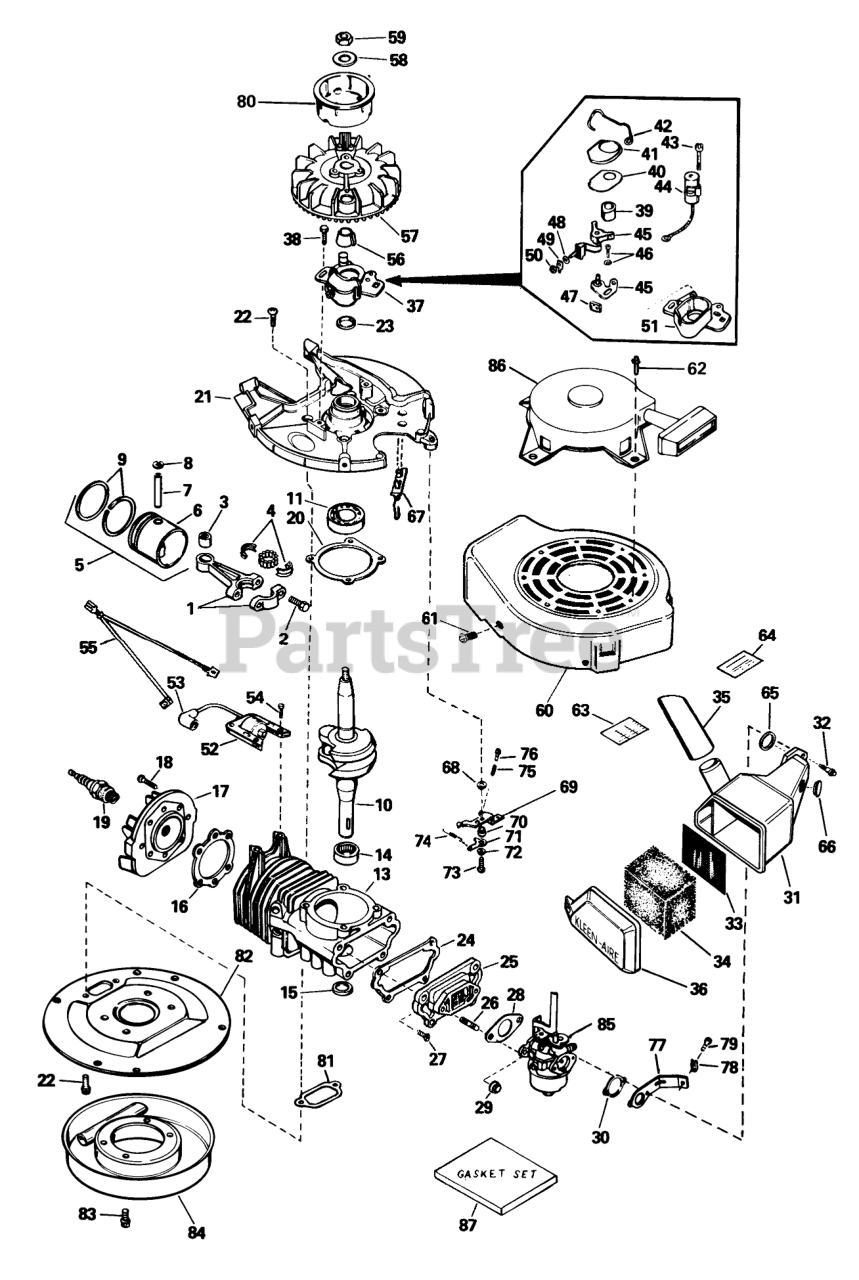

ENGINE TECUMSEH MODEL NO. TVS 600-661-07 Parts Diagram

  • Title

1

Tecumseh 310263

Rod Assy., Connecting (Incl. Ref. #2, 3 & 4)

$63.99

$

Usually ships in 3-12 days

0

2

Tecumseh 650633

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

3

Tecumseh 530104A

Bearing-Cartridge

$15.99

$

In Stock, only 1 left!

0

4

Tecumseh 530151

Bearing & Liner Set-Needle

$23.99

$

Usually ships in 3-12 days

0

5

Tecumseh 310259

Piston, Pin & Ring Assy. (Incl. Ref. #6 thru 9)

$30.99

$

Usually ships in 3-12 days

0

6

Tecumseh 310230B

Piston
(Superseded to 310283A)

$33.99

$

Usually ships in 3-12 days

0

7

Tecumseh 310178

Pin, Piston

$9.49

$

Usually ships in 3-12 days

0

8

Tecumseh 310167

Ring-Retaning

$1.99

$

Usually ships in 3-12 days

0

9

Tecumseh 310190

Ring Set
(Superseded to 310289A)

$14.99

$

In Stock, only 2 left!

0

10

Tecumseh 290501

Crankshaft
(Superseded to 290578)

$

$

Currently unavailable

11

Tecumseh 530110

Bearing-Ball

$30.99

$

Usually ships in 3-12 days

0

13

Block Assy., Cylinder (Order short block if replacement is requlred)

$

$

Not available

14

Toro 780097

Bearing, Cartridge

$

$

Currently unavailable

15

Tecumseh 510305A

Seal, Crankshaft

$

$

Not available

16

Tecumseh 510274

Gasket, Head
(Superseded to 510274A)

Note: Included In Gasket Set Num 510295

$1.99

$

In Stock, Qty 8

0

17

Tecumseh 250240A

Head-Cylinder
(Superseded to 250240B)

$35.99

$

Usually ships in 3-12 days

0

18

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

19

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.99

$

In Stock, Qty 8

0

20

Tecumseh 510292

Gasket, Shroud Base
(Superseded to 510292A)

Note: Included In Gasket Set Num 510295

$3.99

$

Usually ships in 3-12 days

0

21

Tecumseh 350406

Base Assy., Housing (Incl. Ref. #23)

$

$

Currently unavailable

22

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

23

Tecumseh 510319

Seal-Oil

$7.49

$

In Stock, Qty 7

0

24

Tecumseh 510282A

Gasket, Reed Plate
(Superseded to 510323A)

Note: Included In Gasket Set Num 510295

$6.99

$

In Stock, only 1 left!

0

25

Tecumseh 470149

Plate Assy., Reed (Incl. Ref. #26)
(Superseded to 470153B)

$

$

Not available

26

Tecumseh 650700

Stud Carburetor

$

$

Not available

27

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

28

Tecumseh 510110

Gasket, Carburetor
(Superseded to 510110A)

Note: Included In Gasket Set Num 510295

$1.99

$

In Stock, Qty 5

0

29

Tecumseh 650457

Locknut
(Superseded to 29752)

$1.99

$

In Stock, Qty 7

0

30

Tecumseh 27272

Gasket
(Superseded to 27272A)

$4.49

$

In Stock, Qty 20+

0

31

Tecumseh 450234

Body, Air Cleaner

$15.99

$

Usually ships in 3-12 days

0

32

Tecumseh 650806

Screw

$1.99

$

Usually ships in 3-12 days

0

33

Tecumseh 450235

Screen, Air Cleaner

$12.99

$

In Stock, only 2 left!

0

34

Tecumseh 450236

Element, Air Cleaner

$3.99

$

In Stock, only 2 left!

0

35

Tecumseh 33008

Tube, Air Cleaner

$20.99

$

Usually ships in 3-12 days

0

36

Tecumseh 33007

Cover, Air Cleaner

$7.49

$

In Stock, only 1 left!

0

37

Tecumseh 611006

Stator Assy. (Incl. Ref. #39 thru 51)

$

$

Not available

38

Tecumseh 650747

Screw, Hex Washer Hd.

$

$

Currently unavailable

39

Tecumseh 30552

Cam, Breaker

$

$

Not available

40

Tecumseh 610948

Gasket, Dust Cover

$3.99

$

Usually ships in 3-12 days

0

41

Tecumseh 610947

Cover-Dust

$3.99

$

Usually ships in 3-12 days

0

42

Tecumseh 30551

Spring Breaker Box

$

$

Not available

43

Tecumseh 610593

Condenser Screw

$1.99

$

Usually ships in 3-12 days

0

44

Tecumseh 30548B

Condenser

$13.99

$

In Stock, Qty 6

0

45

Tecumseh 30547A

Breaker Assy.

$18.99

$

In Stock, only 2 left!

0

46

Tecumseh 29181

Breaker Screw

$

$

Not available

47

Tecumseh 30549

Felt,Cam Wiper

$1.99

$

In Stock, only 3 left!

0

48

Tecumseh 610385

Washer

$

$

Not available

49

Tecumseh 33356

Terminal, Ground

$1.99

$

In Stock, only 4 left!

0

50

Tecumseh 610408

DECAL

$

$

Currently unavailable

51

Tecumseh 611008

Stator Plate
(Superseded to 611006)

$

$

Not available

52

Tecumseh 34431

Lamination & Coil Assy. (Incl. Ref. #53)
(Superseded to 730207)

$62.99

$

In Stock, only 2 left!

0

53

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

54

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

55

Tecumseh 611023

Wire, Cut Off

$

$

Currently unavailable

56

Tecumseh 611014

SHIELD
(Superseded to 611014A)

$3.99

$

In Stock, only 1 left!

0

57

Tecumseh 611007

FIywheel
(Superseded to 611046A)

$94.99

$

Usually ships in 3-12 days

0

58

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

59

Tecumseh 650390

Nut-Flywheel

$1.99

$

In Stock, only 3 left!

0

60

Tecumseh 350407

Housing, Blower

$

$

Currently unavailable

61

Tecumseh 650356

Screw-Hex, Hd.

$1.99

$

Usually ships in 3-12 days

0

62

Rivet (Can be purchased locally)

$

$

Not available

63

Tecumseh 550212

Decal, Fuel Mix

$

$

Not available

64

Tecumseh 550213

Decal, Warning

$

$

Not available

65

Tecumseh 34338

Gasket-Cleaner, Air

$1.99

$

In Stock, only 4 left!

0

66

Tecumseh 450237

Plug

$1.99

$

Usually ships in 3-12 days

0

67

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 4 left!

0

68

Tecumseh 570422

Washer

$1.99

$

Usually ships in 3-12 days

0

69

Tecumseh 570421

Lever, Control

$27.99

$

Usually ships in 3-12 days

0

70

Tecumseh 570412

Spacer

$3.99

$

In Stock, only 1 left!

0

71

Tecumseh 570415

Lever, Adjusting

$3.99

$

Usually ships in 3-12 days

0

72

Tecumseh 650583

Washer

$1.99

$

In Stock, only 2 left!

0

73

Tecumseh 650544

Screw, Pan Flex Hd.

$1.99

$

Usually ships in 3-12 days

0

74

Tecumseh 570417

Spring, Governor

$1.99

$

In Stock, only 4 left!

0

75

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

76

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

77

Tecumseh 570420

Bracket, Boden Wire

$

$

Currently unavailable

78

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

79

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

80

Tecumseh 590551

Cup-Starter
(Superseded to 590551A)

$10.99

$

Usually ships in 3-12 days

0

81

Tecumseh 510314

Gasket, Exhaust
(Superseded to 510314A)

$3.99

$

Usually ships in 3-12 days

0

82

Tecumseh 330175

Ring, Adapter

$

$

Not available

83

Tecumseh 650797

Screw, Flanged Hex Hd.

$1.99

$

In Stock, only 1 left!

0

84

Tecumseh 390297

Muffler

$

$

Not available

85

Tecumseh 632170

Carburetor (Incl. Ref. #28)

$

$

Currently unavailable

86

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

$68.99

$

In Stock, only 1 left!

0

87

Tecumseh 510295

Gasket Set
(Superseded to 510295A)

$18.99

$

In Stock, only 1 left!

0
