23370 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 008000001 - 008999999) (1978) REWIND STARTER NO. 590420 Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

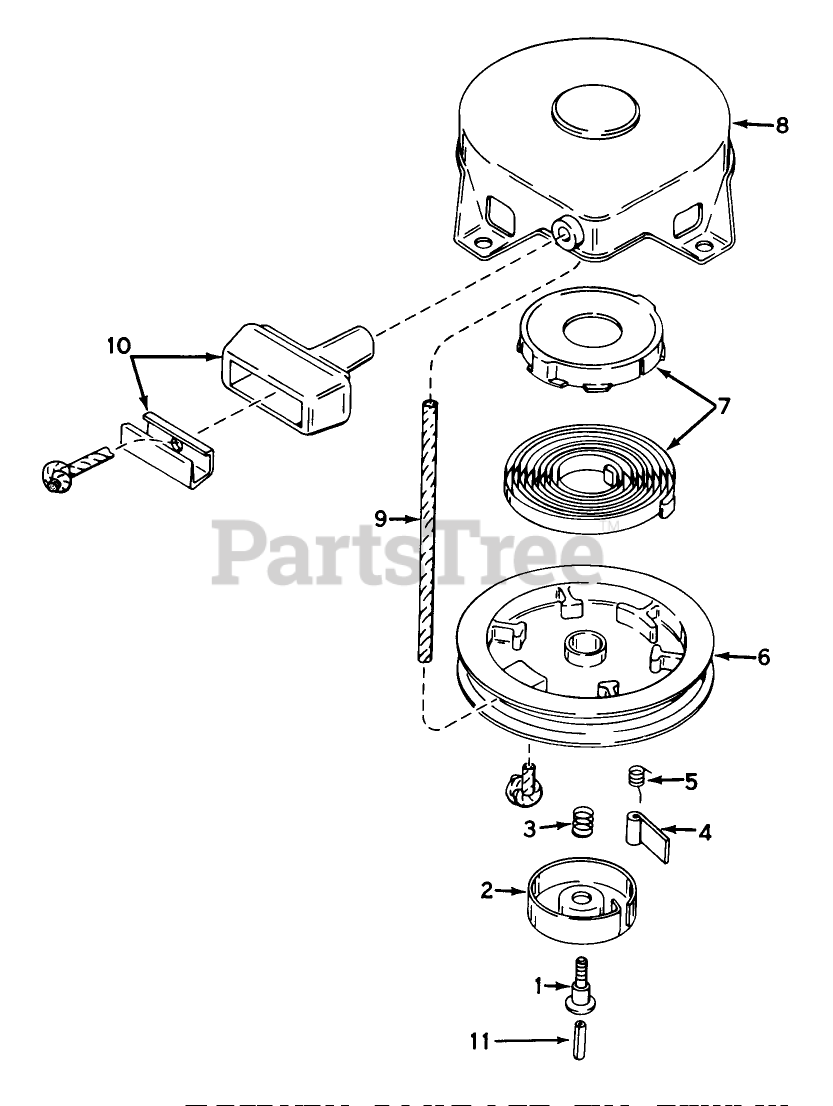

REWIND STARTER NO. 590420 Parts Diagram

  • Title

$3.99

$

In Stock, only 1 left!

0

2

Tecumseh 590410

Retainer

$7.99

$

In Stock, only 2 left!

0

3

Tecumseh 590411

Spring-Brake

$3.49

$

In Stock, only 3 left!

0

4

Tecumseh 590148

Dog-Starter

$3.49

$

In Stock, Qty 7

0

5

Tecumseh 590412

Spring-Dog

$8.49

$

In Stock, only 2 left!

0

6

Toro 1590413a

Pulley

$

$

Currently unavailable

7

Tecumseh 590414

Spring & Keeper Assy

$14.99

$

Usually ships in 3-12 days

0

8

Tecumseh 590415

Housing Assy., Starter (Incl. No. 1)
(Superseded to 590536)

$

$

Not available

9

Tecumseh 590386

Rope Starter
(Superseded to 590535)

$9.49

$

In Stock, Qty 13

0

10

Tecumseh 590387

Assy., Starter

$3.99

$

In Stock, only 2 left!

0

11

Tecumseh 590459

Centering

$

$

Not available
