23370 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 008000001 - 008999999) (1978) ENGINE TECUMSEH MODEL NO. AV-600-660 Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

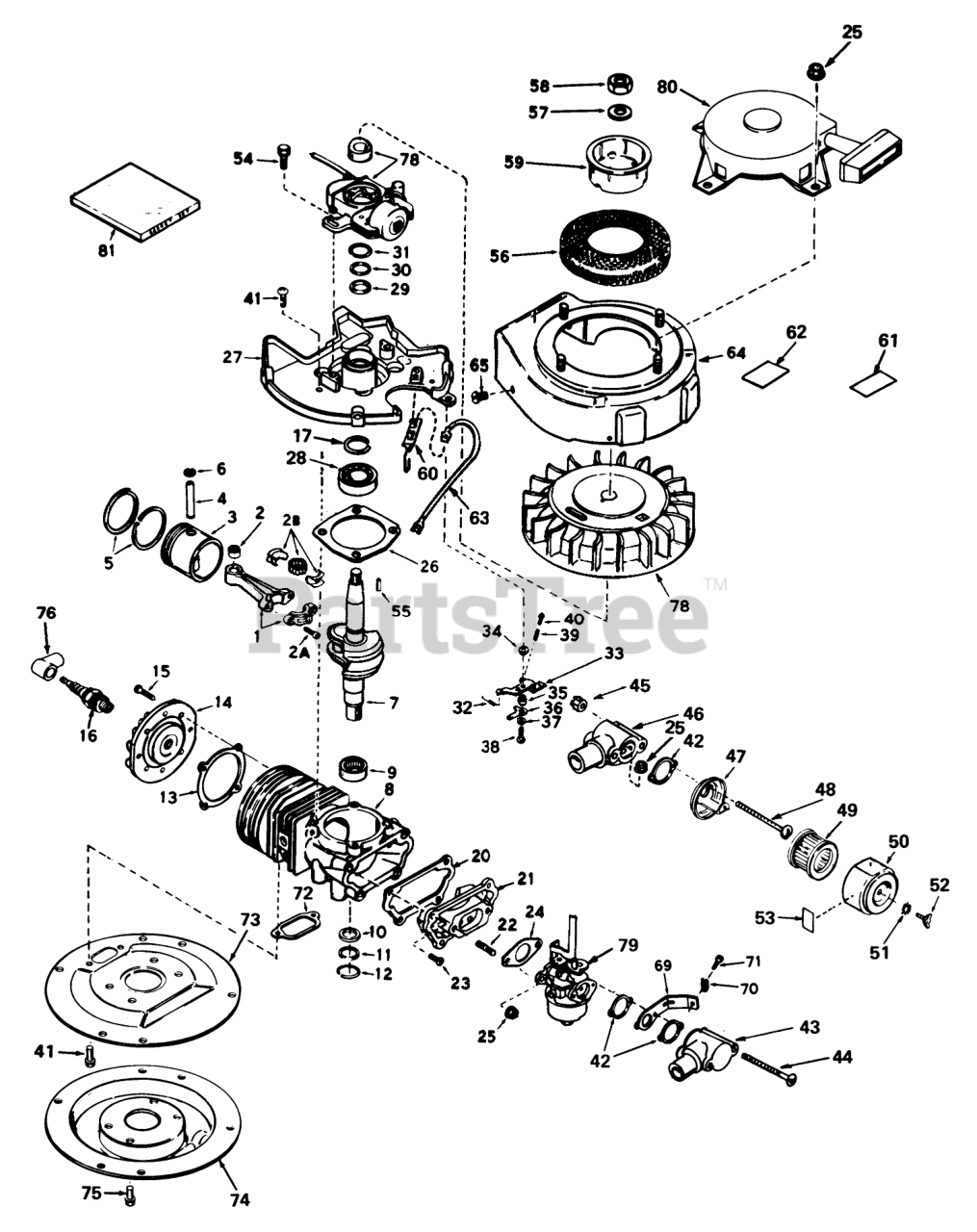

ENGINE TECUMSEH MODEL NO. AV-600-660 Parts Diagram

  • Title

1

Tecumseh 310246

Rod Assy., Connecting (Incl. Nos. 2, 2A & 2B)
(Superseded to 310235C)

$106.99

$

Usually ships in 3-12 days

0

2

Tecumseh 530104A

Bearing-Cartridge

$15.99

$

In Stock, only 1 left!

0

2A

Tecumseh 650633

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

2B

Tecumseh 530150

Needle Bearing and Liner Set (37 Needles)
(Superseded to 530150A)

$36.99

$

Usually ships in 3-12 days

0

3

Tecumseh 310230A

Piston Assy. (Incl. Nos. 4, 5 & 6)
(Superseded to 310283A)

$33.99

$

Usually ships in 3-12 days

0

4

Tecumseh 310178

Pin, Piston

$9.49

$

Usually ships in 3-12 days

0

5

Tecumseh 310190

Ring Set
(Superseded to 310289A)

$14.99

$

In Stock, only 2 left!

0

6

Tecumseh 310167

Ring-Retaning

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 290496

Crankshaft

$

$

Currently unavailable

8

Tecumseh 250263A

Block Assy., Cylinder (Incl. Nos. 9 thru 12)
(Superseded to 250263B)

$

$

Currently unavailable

9

Tecumseh 530143A

Bearing, Needle

$18.99

$

In Stock, only 1 left!

0

10

Tecumseh 510145

Seal, Crankshaft

$3.99

$

Usually ships in 3-12 days

0

11

Tecumseh 510143

Retainer, Crankshaft Seal

$3.99

$

Usually ships in 3-12 days

0

12

Tecumseh 510142

Spring, Crankshaft Seal Retainer

$1.99

$

In Stock, only 1 left!

0

13

Tecumseh 510274

Gasket, Head
(Superseded to 510274A)

Note: Included In Gasket Set Num 510296b.

$1.99

$

In Stock, Qty 8

0

14

Tecumseh 250240A

Head-Cylinder
(Superseded to 250240B)

$35.99

$

Usually ships in 3-12 days

0

15

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

16

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.99

$

In Stock, Qty 8

0

17

Tecumseh 570630

Ring, Retaining

$

$

Currently unavailable

20

Tecumseh 510282A

Gasket, Reed Plate
(Superseded to 510323A)

Note: Included In Gasket Set Num 510296b.

$6.99

$

In Stock, only 1 left!

0

21

Tecumseh 470149

Plate Assy., Reed (Incl. No. 22)
(Superseded to 470153B)

$

$

Not available

22

Tecumseh 650700

Stud Carburetor

$

$

Not available

23

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

24

Tecumseh 510110

Gasket, Carburetor
(Superseded to 510110A)

Note: Included In Gasket Set Num 510296b.

$1.99

$

In Stock, Qty 5

0

25

Tecumseh 650457

Locknut
(Superseded to 29752)

$1.99

$

In Stock, Qty 7

0

26

Tecumseh 510292

Gasket, Shroud Base
(Superseded to 510292A)

Note: Included In Gasket Set Num 510296b.

$3.99

$

Usually ships in 3-12 days

0

27

Tecumseh 350388

Base Assy., Housing (Incl. Nos. 29, 30 & 31)
(Superseded to 350405A)

$50.99

$

Usually ships in 3-12 days

0

28

Tecumseh 530110

Bearing-Ball

$30.99

$

Usually ships in 3-12 days

0

29

Tecumseh 510105

Seal, Crankshaft

$2.99

$

Usually ships in 3-12 days

0

30

Tecumseh 510106A

Retainer, Crankshaft Seal

$3.99

$

Usually ships in 3-12 days

0

31

Tecumseh 510109A

Spring, Crankshaft Seal Retainer

$3.99

$

Usually ships in 3-12 days

0

32

Tecumseh 570417

Spring, Governor

$1.99

$

In Stock, only 4 left!

0

33

Tecumseh 570421

Lever, Control

$27.99

$

Usually ships in 3-12 days

0

34

Tecumseh 570422

Washer

$1.99

$

Usually ships in 3-12 days

0

35

Tecumseh 570412

Spacer

$3.99

$

In Stock, only 1 left!

0

36

Tecumseh 570415

Lever, Adjusting

$3.99

$

Usually ships in 3-12 days

0

37

Tecumseh 650583

Washer

$1.99

$

In Stock, only 2 left!

0

38

Tecumseh 650544

Screw, Pan Flex Hd.

$1.99

$

Usually ships in 3-12 days

0

39

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

40

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

41

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

42

Tecumseh 27272

Gasket
(Superseded to 27272A)

$4.49

$

In Stock, Qty 20+

0

43

Tecumseh 32389

Elbow, Carburetor

$

$

Currently unavailable

44

Tecumseh 650605

Screw, Rd. Hd. Mach.

$

$

Currently unavailable

45

Tecumseh 33450

Nut-Lock
(Superseded to 651016)

$1.99

$

In Stock, Qty 5

0

46

Tecumseh 32388

Elbow

$

$

Currently unavailable

47

Tecumseh 450230

Air Cleaner Pan

$

$

Currently unavailable

48

Tecumseh 29786

Screw

$

$

Currently unavailable

49

Tecumseh 450229

Air Cleaner Element

$

$

Currently unavailable

50

Tecumseh 450231

Air Cleaner Cover

$

$

Currently unavailable

51

Tecumseh 650518

Washer-Lock

$1.99

$

Usually ships in 3-12 days

0

52

Tecumseh 650715

Wing Screw

$

$

Currently unavailable

53

Tecumseh 550201

Air Cleaner Decal

$

$

Currently unavailable

54

Tecumseh 650747

Screw, Hex Washer Hd.

$

$

Currently unavailable

55

Tecumseh 610961

Key-Flywheel

$1.49

$

In Stock, Qty 20+

0

56

Tecumseh 590417

Screen, Air

$7.49

$

In Stock, only 1 left!

0

57

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

58

Tecumseh 650390

Nut-Flywheel

$1.99

$

In Stock, only 3 left!

0

59

Tecumseh 590416

Starter Cup

$9.99

$

Usually ships in 3-12 days

0

60

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 4 left!

0

61

Tecumseh 550206

Decal, Warning

$2.49

$

Usually ships in 3-12 days

0

62

Tecumseh 550208

Decal, Fuel Mix
(Superseded to 550206)

$2.49

$

Usually ships in 3-12 days

0

63

Tecumseh 610974

Wire, Ground

$3.49

$

Usually ships in 3-12 days

0

64

Tecumseh 350393

Housing, Blower

$

$

Currently unavailable

65

Tecumseh 650356

Screw-Hex, Hd.

$1.99

$

Usually ships in 3-12 days

0

69

Tecumseh 570420

Bracket, Boden Wire

$

$

Currently unavailable

70

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

71

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

72

Tecumseh 510314

Gasket, Exhaust
(Superseded to 510314A)

Note: Included In Gasket Set Num 510296b.

$3.99

$

Usually ships in 3-12 days

0

73

Tecumseh 330175

Ring, Adapter

$

$

Not available

74

Tecumseh 390297

Muffler

$

$

Not available

75

Tecumseh 650797

Screw, Flanged Hex Hd.

$1.99

$

In Stock, only 1 left!

0

76

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

78

Tecumseh 610794A

Magneto

$

$

Currently unavailable

79

Tecumseh 632074

Carburetor (Incl. No. 24)

$

$

Currently unavailable

80

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

$68.99

$

In Stock, only 1 left!

0

81

Tecumseh 510296B

Gasket Set
(Superseded to 510296D)

$7.99

$

Usually ships in 3-12 days

0
