23370 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 008000001 - 008999999) (1978) ENGINE ASSEMBLY Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

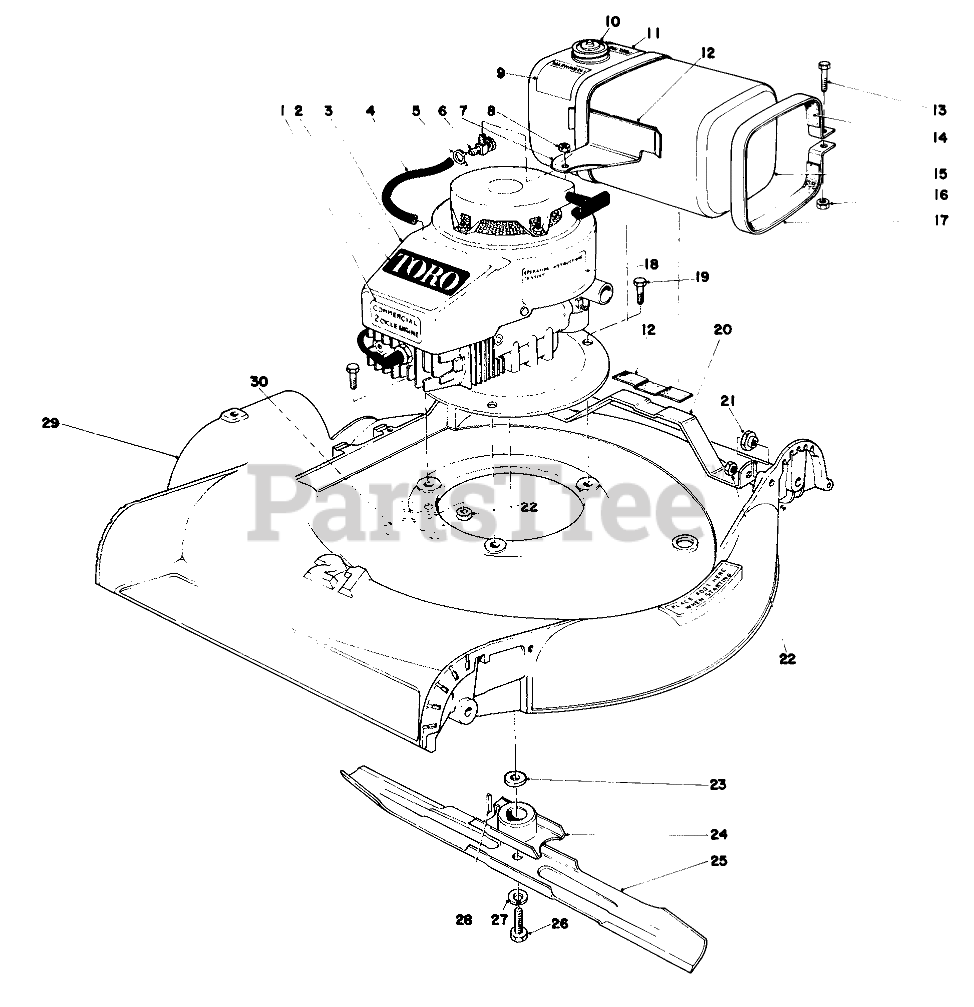

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 37-4560

DECAL COMM 2 CY ENG

$

$

Not available

2

Toro 23-0810

Decal

$

$

Not available

3

Toro 221-598

Engine

$

$

Currently unavailable

4

Toro 36-8930

GAS HOSE

$

$

Not available

5

Toro 2210-87

Clamp
(Superseded to 2412-36)

$2.49

$

Usually ships in 3-6 days

0

6

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

7

Toro 36-8690

Bracket Tank Mounting

$

$

Not available

8

Toro 2210-216

Nut Recoil Mounting

$

$

Currently unavailable

9

Toro 2210-204

DECAL WARNING

$

$

Not available

10

Toro 222-15

Cap

$

$

Not available

11

Toro 2210-206

DECAL FUEL MIX

$

$

Not available

12

Toro 36-8970

Felt Strip Tank Support

$

$

Not available

13

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

14

Toro 36-8960

Felt Strip

$

$

Not available

15

Toro 222-14

Fuel Tank Assembly (Incl. Ref. #10)
(Superseded to 52-2331)

$408.99

$

Usually ships in 3-6 days

0

16

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

17

Toro 36-8940

TANK STRAP

$

$

Not available

18

Toro 37-1280

TORO DECAL

$

$

Not available

19

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 36-8670

Tank Bracket

$

$

Not available

21

Toro 36-8770

SPACER

$

$

Not available

22

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

23

Toro 36-8760

SPACER-BLADE RETAINER

$

$

Not available

24

Toro 36-8800

BLD RETAINER W.A.

$

$

Not available

25

Toro 37-0090

Blade
(Superseded to 8-5230-03)

$38.99

$

Usually ships in 3-6 days

0

26

Toro 3-5246

SPECIAL SCREW

$

$

Not available

27

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

28

Toro 21-5070

KEY-SQUARE

$

$

Not available

29

Toro 36-8920

Housing

$

$

Not available

30

Toro 36-8910

Exhaust Baffle

$

$

Not available
