23370 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 008000001 - 008999999) (1978) CARBURETOR NO. 632074 Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

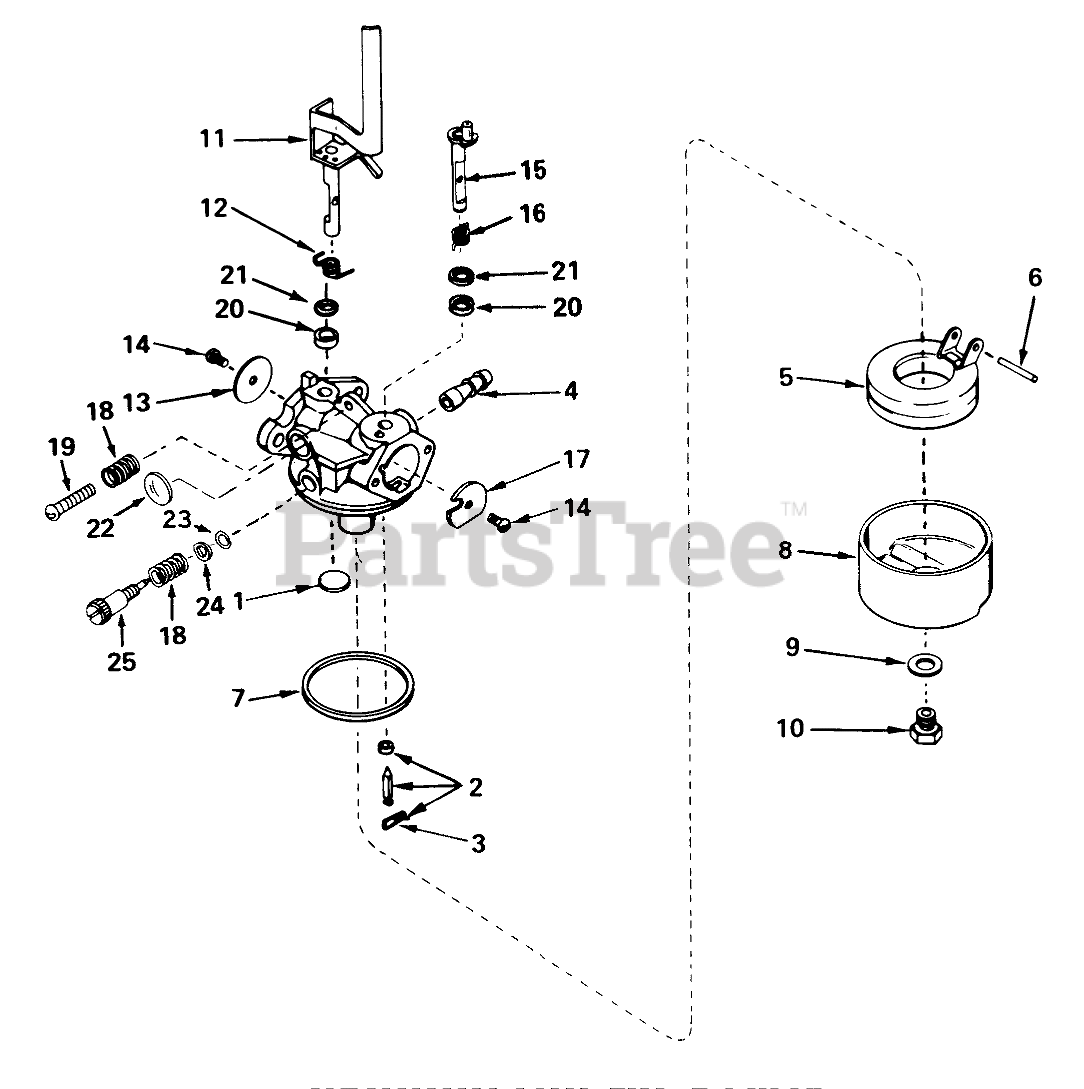

CARBURETOR NO. 632074 Parts Diagram

  • Title
1

Tecumseh 631027

Plug-Welch, Atmospheric Vent

$1.99

$

In Stock, only 4 left!

0

2

Tecumseh 631021

Inlet Needle, Seat & Clip Assy. (Incl. No. 3)
(Superseded to 631021B)

$6.99

$

In Stock, Qty 10

0

3

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

4

Tecumseh 631803

Fuel Fitting
(Superseded to 632164)

$3.99

$

In Stock, only 1 left!

0

5

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, Qty 7

0

6

Tecumseh 631024

Shaft-Float

$1.99

$

In Stock, Qty 10

0

7

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

$2.49

$

In Stock, Qty 14

0

8

Tecumseh 631700

Bowl Float

$7.49

$

In Stock, Qty 5

0

9

Tecumseh 631334

Gasket-Bowl
(Superseded to 631334A)

$3.49

$

In Stock, Qty 13

0

10

Tecumseh 632073

Nut, Float Bowl

$3.49

$

Usually ships in 3-12 days

0

11

Tecumseh 631255

Shaft & Lever Assy., Throttle

$8.99

$

In Stock, only 3 left!

0

12

Tecumseh 631767

Spring-Return, Throttle

$1.99

$

In Stock, only 4 left!

0

13

Tecumseh 631036

Shutter-Throttle

$1.99

$

Usually ships in 3-12 days

0

14

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 14

0

15

Tecumseh 631302

Shaft & Lever Assy., Choke

$8.99

$

Usually ships in 3-12 days

0

16

Tecumseh 631476

Spring, Choke Return

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 631890

Shutter-Choke

$1.99

$

In Stock, only 1 left!

0

18

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, only 4 left!

0

19

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, only 4 left!

0

20

Tecumseh 631183

Seal-Dust

$1.99

$

In Stock, Qty 7

0

21

Tecumseh 631184

Washer-Seal, Dust

$1.99

$

In Stock, Qty 16

0

22

Tecumseh 630748

Plug-Welch, Idle Mixture Well

$1.99

$

In Stock, only 1 left!

0

23

Tecumseh 630740

"O"Ring

$2.49

$

Usually ships in 3-12 days

0

24

$1.99

$

In Stock, Qty 6

0

25

Tecumseh 630898

Screw Main Adjustment

$2.49

$

In Stock, Qty 8

0
