233452-0640-XX - Briggs & Stratton Horizontal Engine Muffler Grp Parts Diagram

Horizontal Engine

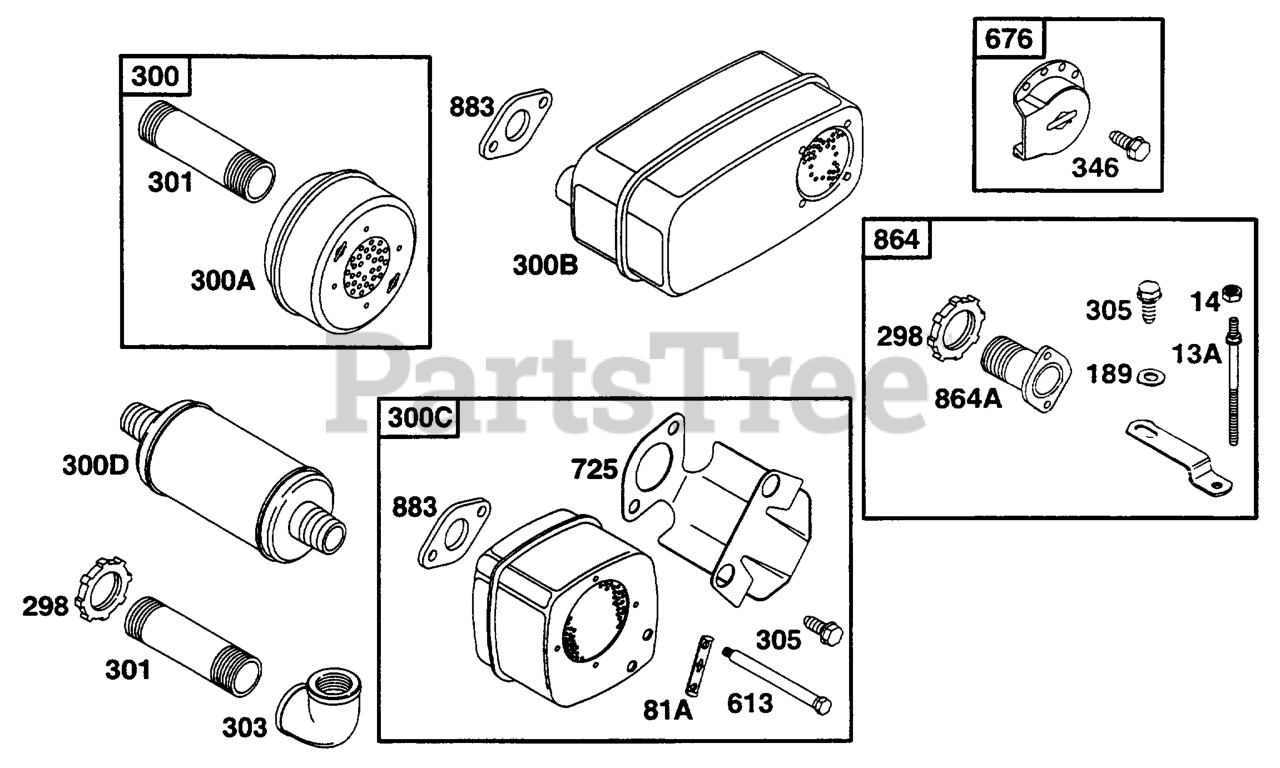

Muffler Grp Parts Diagram

  • Title
13A

Briggs & Stratton 94926

Stud, Hex Washer He (3 5/16" Long)
(Superseded to 691690)

$

$

Not available

14

Briggs & Stratton 94314

Nut-Hex
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

81A

Briggs & Stratton 223016

Lock-Screw
(Superseded to 691178)

$5.49

$

In Stock, Qty 9

0

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

298

Briggs & Stratton 261564

Locknut-Muffler And Elbow
(Superseded to 691808)

$7.99

$

In Stock, only 3 left!

0

300B

Briggs & Stratton 493963

Muffler Assy (Super Lo-tone)
(Superseded to 498984S)

$84.99

$

Usually ships in 2-12 days

0

300A

Briggs & Stratton 392989

Muffler-Exhaust (Muffler Only)

$28.99

$

Usually ships in 2-12 days

0

300C

Briggs & Stratton 399635

Muffler-Exhaust

$

$

Not available

300D

Briggs & Stratton 291519

Muffler-Exhaust

$56.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 299477

Muffler Assy
(Superseded to 299477S)

$40.99

$

Usually ships in 2-12 days

0

301

Briggs & Stratton 92107

Pipe-Muffler (4" Long)

$6.99

$

Usually ships in 2-12 days

0

303

Briggs & Stratton 91415

Elbow-Exhaust (1" 45 Degrees)

$13.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94786

Screw, Machine Hex (1/2" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

346

Briggs & Stratton 93400

Screw-Slotted
(Superseded to 692836)

$3.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

613

Briggs & Stratton 93927

Screw-Shoulder
(Superseded to 691416)

$11.99

$

In Stock, Qty 14

0

676

Briggs & Stratton 393761

Deflector-Muff (Side Outlet)
(Superseded to 795036)

$8.49

$

In Stock, only 1 left!

0

725

Briggs & Stratton 223023

Shield-Muffler
(Superseded to 690420)

$18.99

$

Usually ships in 2-12 days

0

864A

Briggs & Stratton 394337

Adapter-Muffler
(Superseded to 690637)

$43.99

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 394584

Adapter-Muffler

$59.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272293

Gasket-Exhaust Pipe
(Superseded to 692236)

$5.49

$

In Stock, Qty 20+

0
