233431-0166-XX - Briggs & Stratton Horizontal Engine Carb,FuelTank,A/C,Electrical Parts Diagram

Horizontal Engine

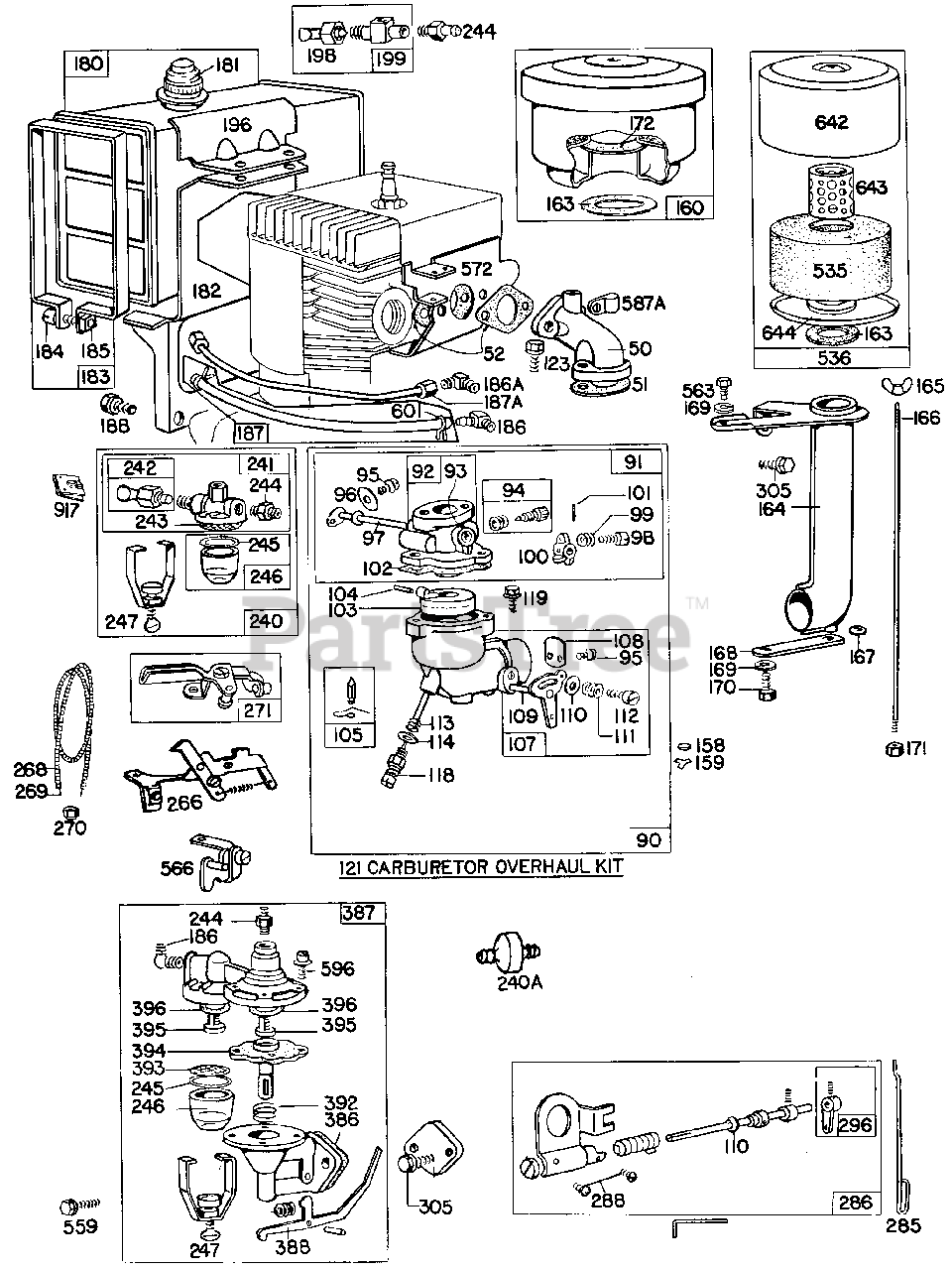

Carb,FuelTank,A/C,Electrical Parts Diagram

  • Title

50

Briggs & Stratton 21920

Elbow-Carburetor Intake

$23.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 270684

Gasket-Intake Elbow

Note: Included in Carburetor Overhaul Kit-Part No. 291763. Included in Gasket Set-Part No. 291728

$4.99

$

In Stock, Qty 11

0

52

Briggs & Stratton 27381

Gasket, Intake Elbo
(Superseded to 27381S)

Note: Included in Gasket Set-Part No. 291728

$4.99

$

In Stock, Qty 9

0

90

Briggs & Stratton 291746

Carburetor Assy.

$

$

Not available

91

Briggs & Stratton 291655

Body Assy.-Upper Carburetor

$83.99

$

Usually ships in 2-12 days

0

92

Briggs & Stratton 99375

Body-Upper Carburetor

$44.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve-Idle Mixture

Note: Included in Carburetor Overhaul Kit-Part No. 291763

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 62940

Valve-Throttle
(Superseded to 223370)

$9.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 291300

Shaft Assy.-Throttle

$27.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 61967

Stop-Throttle Lever
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin-Throttle Stop And Governor Shaft
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 27034

Gasket-Carburetor Body

Note: Included in Carburetor Overhaul Kit-Part No. 291763

$4.99

$

Usually ships in 2-12 days

0

103

Briggs & Stratton 99333

Float-Carburetor

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 230896

Pin-Hinge
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 291763

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 299096

Valve-Fuel Inlet
(Superseded to 394681)

Note: Included in Carburetor Overhaul Kit-Part No. 291763

$7.99

$

In Stock, only 1 left!

0

107

Briggs & Stratton 291745

Body Assy.-Lower Carburetor

$

$

Not available

108

Briggs & Stratton 22954

Valve-Choke

$

$

Not available

109

Briggs & Stratton 291776

Lever Assy.-Automatic Choke

$

$

Not available

110

Briggs & Stratton 62899

Washer-Thermostat
(Superseded to 691186)

$4.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

$4.99

$

In Stock, Qty 7

0

112

Briggs & Stratton 23123

Screw-Shoulder
(Superseded to 691587)

$6.49

$

In Stock, only 1 left!

0

113

Briggs & Stratton 390395

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 291763

$

$

Not available

114

Briggs & Stratton 68667

Washer, Fiber (Viton Seat)
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-Part No. 291763

$6.49

$

In Stock, only 1 left!

0

118

Briggs & Stratton 391213

Valve-Needle

Note: Uses: 292226 Retainer Assy.-Needle Valve 68677 Packing-Needle Valve

$6.49

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 99525

Valve-Needle
(Superseded to 99525S)

Note: Included in Carburetor Overhaul Kit-Part No. 291763

$12.99

$

In Stock, only 1 left!

0

119

Briggs & Stratton 93496

Screw, Sem Hex Head (10-32 X 5/8")
(Superseded to 690804)

$

$

Not available

121

Briggs & Stratton 291763

Carburetor Overhaul Kit
(Superseded to 394693)

$31.99

$

In Stock, Qty 20+

0

123

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

158

Briggs & Stratton 27590

Filter-Carburetor Drin

$6.49

$

In Stock, only 1 left!

0

159

Briggs & Stratton 220521

Retainer-Carb Drain

$

$

Not available

160

Briggs & Stratton 393858

Cleaner Assembly-Air

$98.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 67247

Gasket-Air Cl

Note: Included in Gasket Set-Part No. 291728

$7.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 291462

Pipe-Air Cleaner

Note: Used Before Code Date 6608091

$48.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 294632

Pipe-Air Cleaner

Note: Used Before Code Date 6608091

$

$

Not available

164

Briggs & Stratton 299504

Pipe-Air Cleaner

Note: Used After Code Date 6608081

$75.99

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 93453

Nut, Wing
(Superseded to 691331)

$5.99

$

In Stock, only 3 left!

0

166

Briggs & Stratton 297749

Stud-Air Cleaner

$27.99

$

Usually ships in 2-12 days

0

167

Briggs & Stratton 65978

Seal, O-Ring (Needle Valve)
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

168

Briggs & Stratton 222707

Strap-Cl Mtg

Note: (Stud supplied by Equipment Manufacturer)

$7.99

$

In Stock, only 1 left!

0

169

Briggs & Stratton 90832

Washer-Lock
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

170

Briggs & Stratton 91468

Screw-Hex (1/4-20 X 3/8")

$4.99

$

Usually ships in 2-12 days

0

171

Briggs & Stratton 92129

Nut, Hex Mach (1/4-28)
(Superseded to 690284)

$2.99

$

Usually ships in 2-12 days

0

172

Briggs & Stratton 27401

Gasket-Air Cleaner

$1.49

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 291488

Tank-Fuel (Metal)

$

$

Not available

180

Briggs & Stratton 293024

Tank Assy.-Fuel (8 Quart)

Note: Uses: 92958 Plug

$

$

Not available

180

Briggs & Stratton 293600

Tank Assy.-Fuel (6 Quart)

Note: Uses: 92958 Plug

$

$

Not available

181

Briggs & Stratton 392301

Cap-Fuel Tank
(Superseded to 791545)

$

$

Not available

182

Briggs & Stratton 22813

Bracket, Tank (8 Quart) (Remote Mount Only)
(Superseded to 690262)

$41.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 291490

Strap, Tank Assy (6 Quart)
(Superseded to 691937)

$33.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 91257

Screw, Machine Fill (1/4-20 X 1-1/2")
(Superseded to 690280)

$3.99

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 90970

Nut, Square (1/4-20)
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

186A

Briggs & Stratton 63377

Connector-Hose (For Metal Fuel Pipe)

$12.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 67218

Connector, Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 7

0

187A

Briggs & Stratton 291703

Pipe-Fuel

Note: Used between Carburetor and Fuel Pump

$

$

Not available

187

Briggs & Stratton 292370

Valve-Fuel Shut-Off

$

$

Not available

187

Briggs & Stratton 293059

Cap Assy.-Fuel

$

$

Not available

187

Briggs & Stratton 293646

Pipe-Fuel (Flexible)

$

$

Not available

187

Briggs & Stratton 296004

Line-Fuel (23" Cut To Length)
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

187

Briggs & Stratton 93037

Elbow

Note: (At Lower Pipe and Valve) (90 degrees) (Between Fuel Pipe and Valve)

$

$

Not available

188

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

196

Briggs & Stratton 22907

Support, Tank (8 Quart) (Remote Mount Only)
(Superseded to 691068)

$25.99

$

Usually ships in 2-12 days

0

198

Briggs & Stratton 293934

Valve, Shutoff Assy
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 297563

Outlet, Tank Assy
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

240A

Briggs & Stratton 394358

Filter, Fuel (Used With Fuel Pump)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 393169

Strainer Kit (Used With Metal Or Flexible Fuel Pipe)
(Superseded to 690612)

Note: Used with Flexible and Metal Fuel Pipe.

$

$

Not available

241

Briggs & Stratton 296005

Fuel Filter Cover
(Superseded to 690612)

Note: Used with Flexible Fuel Pipe

$

$

Not available

241

Briggs & Stratton 99909

Fuel Filter Cover (Used With Metal Fuel Pipe)

Note: Used with Metal Fuel Pipe

$19.99

$

Usually ships in 2-12 days

0

242

Briggs & Stratton 295913

Valve-Shut
(Superseded to 690612)

$

$

Not available

243

Briggs & Stratton 22547

Screen-Fuel Filter
(Superseded to 691962)

$4.99

$

In Stock, Qty 14

0

244

Briggs & Stratton 230318

Connector, Fuel
(Superseded to 691764)

Note: Used with Flexible Fuel Pipe

$14.99

$

In Stock, only 4 left!

0

244

Briggs & Stratton 231238

Connector-Hose (Used With Metal Fuel Line)

Note: Used with Metal Fuel Pipe

$8.99

$

Usually ships in 2-12 days

0

245

Briggs & Stratton 68477

Gasket-Fuel Filter Bowl
(Superseded to 692190)

Note: Included in Gasket Set-Part No. 291728

$4.99

$

In Stock, only 3 left!

0

246

Briggs & Stratton 298683

Bowl-Fuel Filter

$14.99

$

In Stock, only 1 left!

0

247

Briggs & Stratton 99665

Yoke-Fuel Filter
(Superseded to 691700)

$22.99

$

Usually ships in 2-12 days

0

266

Briggs & Stratton 291460

Control-Throttle (Disc Type)

$33.99

$

Usually ships in 2-12 days

0

266

Briggs & Stratton 392150

Control-Throttle
(Superseded to 494554)

Note: Uses: 261322 Spring-Return

$23.99

$

In Stock, only 1 left!

0

268

Briggs & Stratton 65616

Casing, Wire (72", Cut To Required Length)
(Superseded to 691025)

Note: If longer casing is required, specify length in inches; if shorter casing is needed, Order No. 65616 and cut to required length.

$

$

Not available

269

Briggs & Stratton 260769

Wire-Control 78" Long

Note: If longer wire is required, specify length in inches; if shorter wire is needed, Order No. 26633 and cut to required length.

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

285

Briggs & Stratton 26684

Link-Choke

$

$

Not available

286

Briggs & Stratton 291445

Thermostat Assy.

$

$

Not available

288

Briggs & Stratton 93141

Screw, Sem Filliste (Diaphragm Cover)
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

296

Briggs & Stratton 291044

Lever Assy.-Thermostat

$6.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

386

Briggs & Stratton 27314

Gasket-Fuel Pump Mounting And Hole Cover

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 291493

Pump Assembly-Fuel

$

$

Not available

388

Briggs & Stratton 220431

Lever-Fuel Pump

$

$

Not available

392

Briggs & Stratton 26588

Spring-Fuel Pump Diaphragm

$

$

Not available

393

Briggs & Stratton 22740

Screen-Fuel Pump Filter

$

$

Not available

394

Briggs & Stratton 290622

Diaphragm-Fuel Pump

$

$

Not available

395

Briggs & Stratton 290623

Valve-Fuel Pump

$

$

Not available

396

Briggs & Stratton 66204

Gasket-Fuel Pump Valve

$

$

Not available

535

Briggs & Stratton 270093

Filter-Air

$19.99

$

In Stock, Qty 7

0

536

Briggs & Stratton 297869

Cleaner-Air
(Superseded to 393858)

$98.99

$

Usually ships in 2-12 days

0

559

Briggs & Stratton 93294

Screw, Sem (5/8" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

563

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

566

Briggs & Stratton 99458

Idling Device

Note: Uses: 92747 Screw-Sem (For Mounting)

$18.99

$

Usually ships in 2-12 days

0

572

Briggs & Stratton 291871

Guide-Front Air

$14.99

$

Usually ships in 2-12 days

0

587A

Briggs & Stratton 220509

Clip-Wire
(Superseded to 690389)

$3.99

$

Usually ships in 2-12 days

0

596

Briggs & Stratton 93347

Screw-Throttle Hsg., And Fuel Pump Mtg.

$2.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

642

Briggs & Stratton 221468

Cover-Air Cleaner

$58.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 280001

Spacer-Air Cleaner

$

$

Not available

644

Briggs & Stratton 221466

Base-Air Cleaner

$10.99

$

Usually ships in 2-12 days

0

917

Briggs & Stratton 223271

Valve Handle-Fuel Shut-Off
(Superseded to 691737)

$7.49

$

Usually ships in 2-12 days

0
