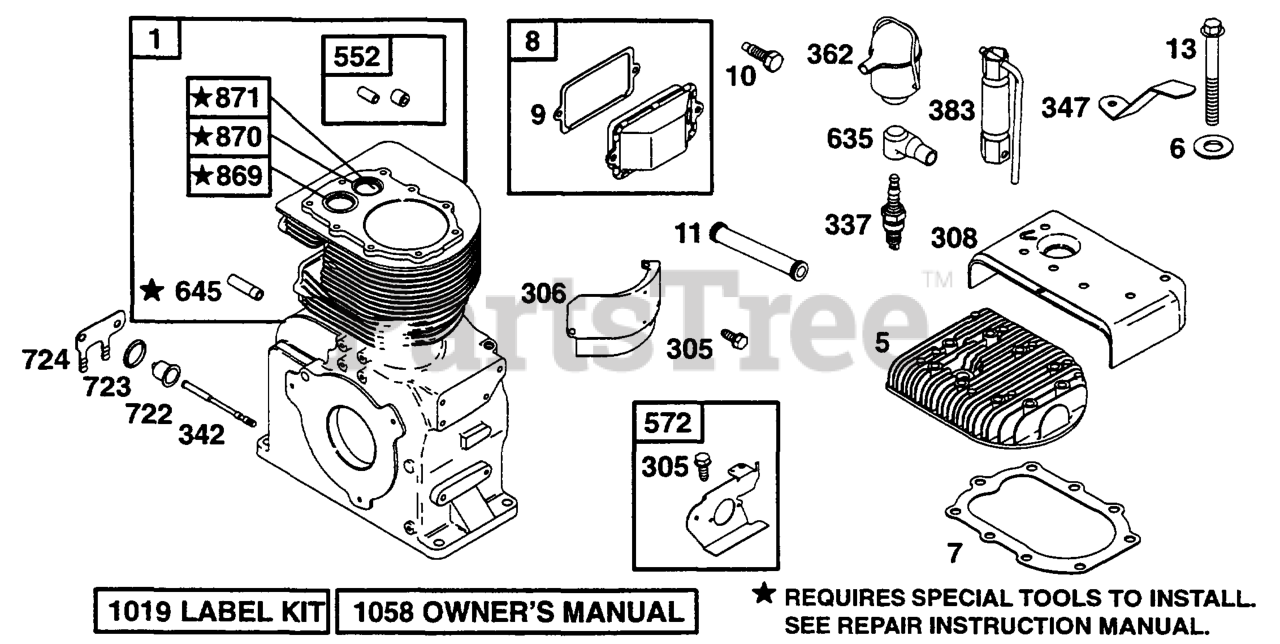

233411-0337-XX - Briggs & Stratton Horizontal Engine Cylinder, Head Parts Diagram

Horizontal Engine

Cylinder, Head Parts Diagram

  • Title

1

Briggs & Stratton 395668

Cylinder Assembly

$1005.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 210580

Head-Cylinder

$136.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 272165

Gasket-Cylinder Head
(Superseded to 692230)

$12.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 495738

Breather Assembly

$53.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: See Footnote for other Date Codes

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 68818

Tube-Breather
(Superseded to 691512)

$

$

Not available

13

Briggs & Stratton 92674

Screw, Hex Head Cap (2-7/16" Long)
(Superseded to 691441)

$7.49

$

In Stock, Qty 5

0

305

Briggs & Stratton 94786

Screw, Machine Hex (1/2" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

306

Briggs & Stratton 22951

Shield-Cylinder

$19.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 291866

Cover-Cylinder Head
(Superseded to 690609)

$16.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 492167

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 298125

Plunger-Contact
(Superseded to 298125S)

$47.99

$

Usually ships in 2-12 days

0

347

Briggs & Stratton 220197

Switch, Stop (For 1-1/2" High, 38 Mm. Spark Plugs)
(Superseded to 690578)

$

$

Not available

347

Briggs & Stratton 293739

Sparkplug Stop Sw

$4.99

$

Usually ships in 2-12 days

0

362

Briggs & Stratton 392273

Elbow, Suppression
(Superseded to 793351)

$14.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

552

Briggs & Stratton 393666

Bushing-Governor

$9.49

$

Usually ships in 2-12 days

0

572

Briggs & Stratton 291871

Guide-Front Air

$14.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

645

Briggs & Stratton 230775

Bushing-Plunger
(Superseded to 692880)

$13.99

$

Usually ships in 2-12 days

0

722

Briggs & Stratton 68768

Seal-Plunger

$19.99

$

In Stock, only 2 left!

0

723

Briggs & Stratton 93516

Retainer-Seal

$

$

Not available

724

Briggs & Stratton 221873

Retainer-Seal

$9.49

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 21880

Seat-Valve (Intake)
(Superseded to 5021880)

$5.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 21612

Seat, Exhaust Valve
(Superseded to 691583)

$49.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231218

Bushing-Guide (Brass)

$14.99

$

In Stock, Qty 7

0

1019

Briggs & Stratton 491256

Label Kit

$11.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 270373

Owner's Manual Nonemission Engines

$

$

Not available
