2331 (UT-26004) - Green Machine Trimmer Attachment 2331 Trimmer Attachment (UT-26004) Parts Diagram

Trimmer Attachment

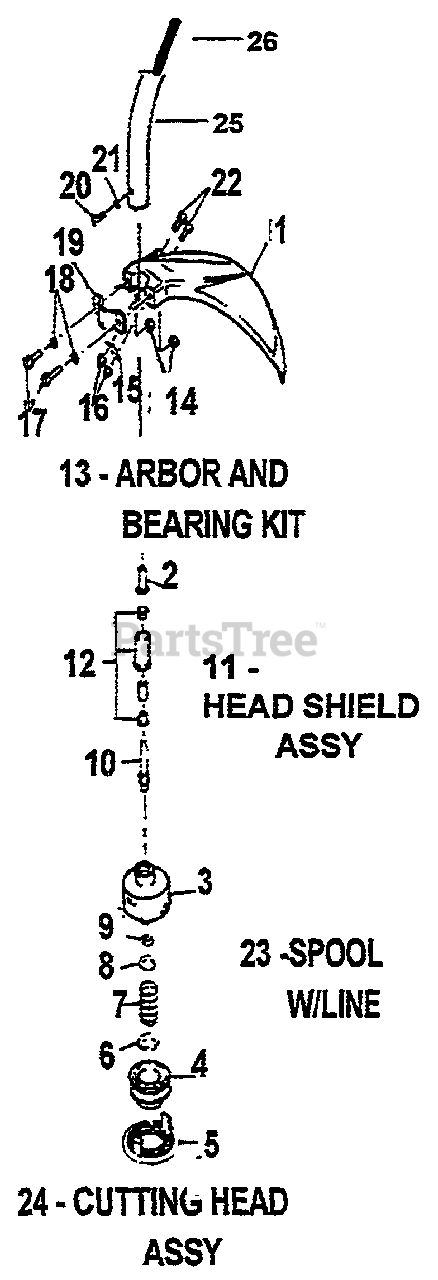

2331 Trimmer Attachment (UT-26004) Parts Diagram

  • Title

1

Homelite GM165206

DEFLECTOR

$

$

Not available

2

Homelite GM166501

ARBOR ADAPTER

$

$

Not available

3

Homelite GM160310

HEAD BODY

$

$

Not available

4

Homelite GM165209

SPOOL

$

$

Not available

5

Homelite GM165208

CAP
(Superseded to GM20105)

$

$

Not available

6

Homelite GM166903

SPRING PLATE

$

$

Not available

7

Homelite GM167901

SPRING
(Superseded to UP06740)

$5.49

$

Usually ships in 3-7 days

0

8

Homelite GM166903

SPRING PLATE

$

$

Not available

9

Homelite GM167602

PAL NUT

$

$

Not available

10

Homelite GM166702

ARBOR POST

$

$

Not available

11

Homelite GM160306

HEAD SHIELD ASSY

$

$

Not available

12

Homelite GM160305

ARBOR BUSH ASSY
(Superseded to UP06876)

$

$

Not available

13

Homelite GM160614

ARBOR & BRG KIT

$

$

Not available

14

Homelite GM051002

NUT
(Superseded to UP03400)

$

$

Not available

15

Homelite GM166901

BLADE, CUT OFF

$

$

Not available

16

Homelite GM051001

NUT

$

$

Not available

17

Homelite GM011417

SCREW

$

$

Not available

18

Homelite GM040002

WASHER

$

$

Not available

19

Homelite GM166902

BRACKET CLAMP

$

$

Not available

20

Homelite GM011402

SCREW

$

$

Not available

21

Homelite GM041101

WASHER

$

$

Not available

22

Homelite GM011402

SCREW

$

$

Not available

23

Homelite GM32005

SPOOL & LINE
(Superseded to DG07810)

$

$

Not available

24

Homelite GM20135

HEAD ASSEMBLY
(Superseded to DG07795)

$82.99

$

Usually ships in 3-7 days

0

25

Homelite GM280314

TUBE ASSY
(Superseded to UP06790)

$

$

Currently unavailable

26

Homelite GM237804

FLEX CABLE
(Superseded to A07844)

$

$

Not available
