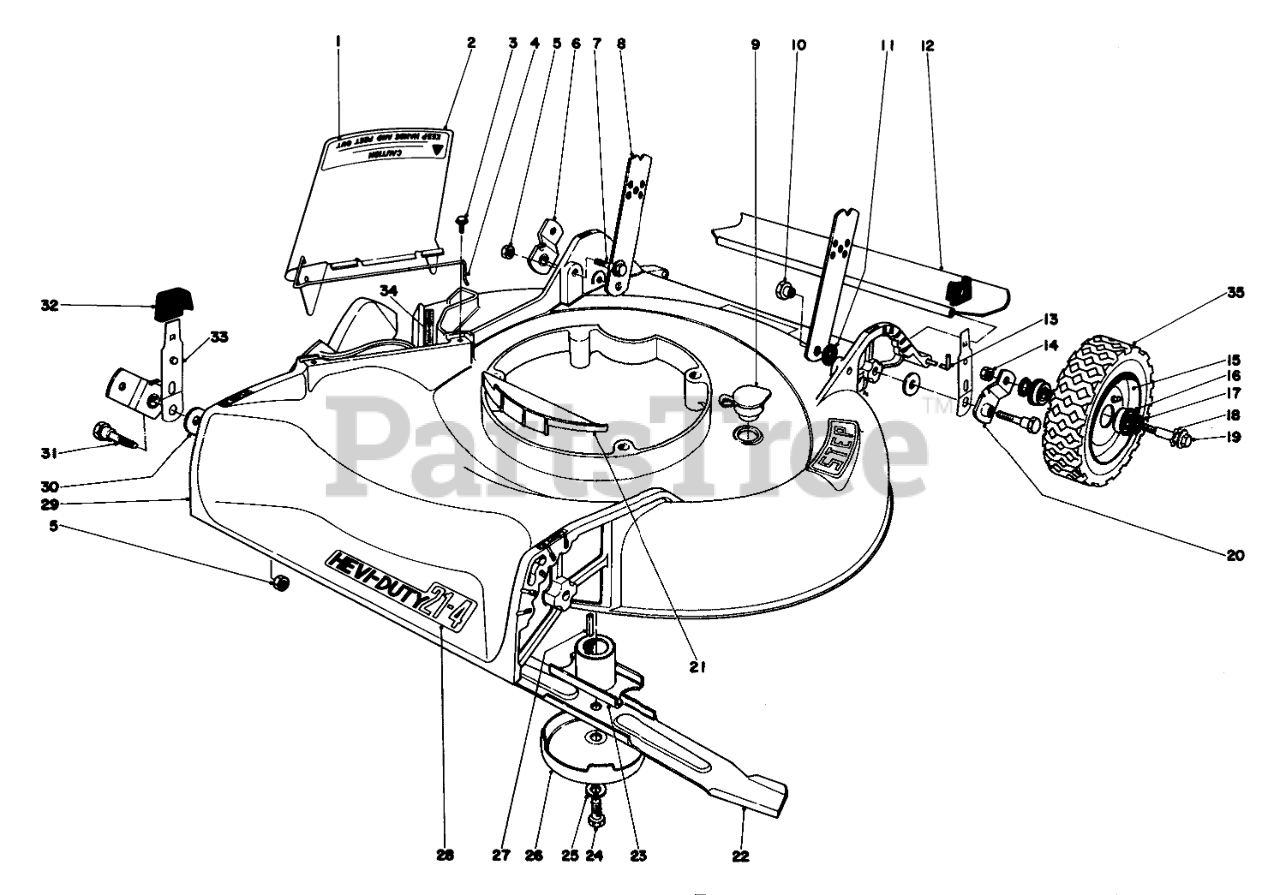

23307 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 008000001 - 008999999) (1978) HOUSING ASSEMBLY Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 20-4330

Caution Decal

$

$

Not available

2

Toro 27-7810

Deflector Cover Assembly (Incl. Ref. #1 & 4)
(Superseded to 13-4049)

$

$

Not available

3

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 13

0

4

Toro 20-2640

SPRING HINGE

$

$

Not available

5

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

6

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

7

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, Qty 11

0

8

Toro 27-7080

HANDLE LATCH

$

$

Not available

9

Toro 6-4500

WASHOUT PLUG

$

$

Not available

10

Toro 27-6520

HANDLE PIVOT NUT

$10.99

$

Usually ships in 3-6 days

0

11

Toro 27-6510

HANDLE LATCH SPACER

$5.49

$

Usually ships in 3-6 days

0

12

Toro 22-4950

REAR SAFETY SHIELD 21

$

$

Not available

13

Toro 33-3201

SHIELD ROD

$

$

Not available

14

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 26-2960

Wheel & Tire Assembly (Incl. Ref. #35)
(Superseded to 11-1309)

$130.99

$

Usually ships in 3-6 days

0

16

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

17

Toro 26-7500

FELT WASHER

$

$

Not available

18

Toro 3290-393

SPRING WASHER

$5.49

$

Usually ships in 3-6 days

0

19

Toro 3-2652

Bolt

$

$

Not available

20

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

21

Toro 27-7470

HOUSING CAP

$

$

Not available

22

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$43.99

$

In Stock, only 4 left!

0

23

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

24

Toro 3-5246

SPECIAL SCREW

$

$

Not available

25

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

26

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$17.99

$

In Stock, only 2 left!

0

27

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

28

Toro 28-5380

Decal-21-4 Hevi-Duty

$

$

Currently unavailable

29

Toro 6-7399

Housing

$

$

Not available

30

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

31

Toro 28-8880

PIVOT SCREW

$10.99

$

In Stock, only 2 left!

0

32

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

33

Toro 25-8000

SPRING ARM ASM

$

$

Not available

34

Toro 22-7350

Decal

$

$

Not available

35

Toro 5-3543

TIRE

$

$

Not available

Toro 6-8499

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$20.99

$

Usually ships in 3-6 days

0
