23301 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1968) 25" & 34" HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

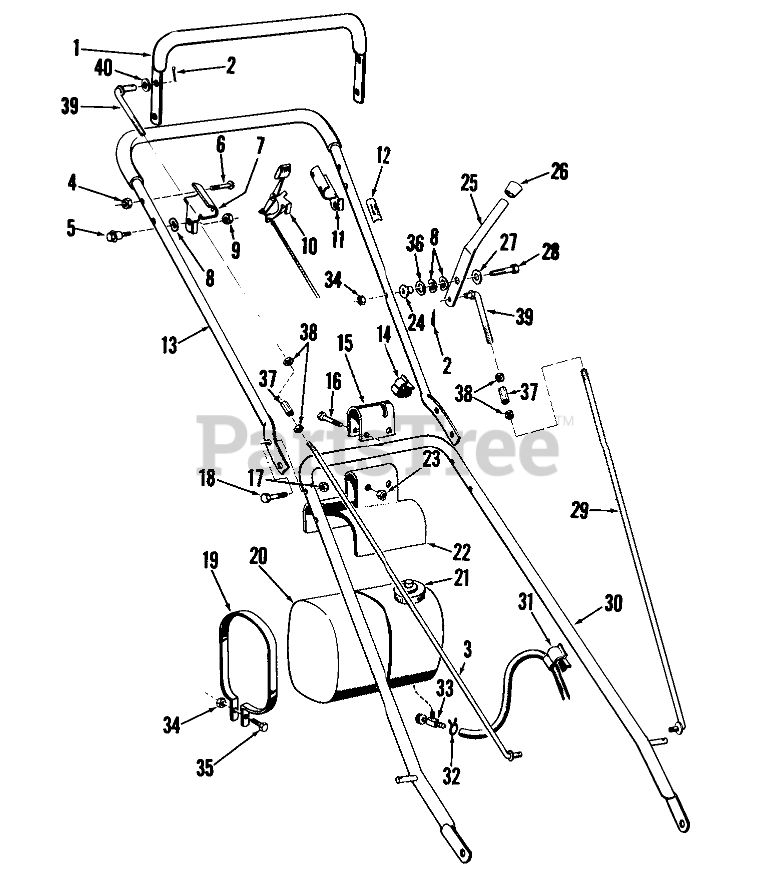

25" & 34" HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 2-9849

Control Bail
(Superseded to 19-7180)

$

$

Not available

2

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

3

Toro 10-9360

Control Rod, Lower

$

$

Not available

4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

6

Toro 3251-11

10-24X1-1/4 PAN HD MS

$

$

Not available

7

Toro 3-7371

CONTROL BAIL BRACKET

$

$

Not available

8

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

9

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

10

Toro 3-7807

Throttle Control
(Superseded to 23-4600)

$

$

Not available

11

Toro 3-7372

Bracket-Control Bail

$

$

Not available

12

Toro 3-2067

Decal

$

$

Currently unavailable

13

Toro 3-7569

Upper Handle Assembly
(Superseded to 26-7840)

$181.99

$

Usually ships in 3-6 days

0

14

Toro 5-0748

Clamp

$

$

Not available

15

Toro 3-6477

Clamp, Fuel Tank
(Superseded to 22-5060)

$

$

Not available

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 32146-8

Nut
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

18

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 10

0

19

Toro 3-6346

TANK STRAP

$

$

Not available

20

Toro 222-14

Tank
(Superseded to 52-2331)

$360.99

$

Usually ships in 3-6 days

0

21

Toro 222-15

Cap

$

$

Not available

22

Toro 3-6345

FUEL TANK BRACKET

$

$

Not available

23

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

24

Toro 3-7811

PIVOT

$

$

Not available

25

Toro 5-2154

CUTTER HANDLE R

$

$

Not available

26

Toro 5-0747

Button Plug

$

$

Not available

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 10-9370

Control Rod, Lower

$

$

Not available

30

Toro 3-8193

Lower Handle Assy.

$

$

Currently unavailable

30

Toro 3-6850

Lower Handle

$

$

Not available

31

Toro 3-5181

CLAMP

$

$

Not available

32

Toro 2210-87

Clamp
(Superseded to 2412-36)

$2.49

$

Usually ships in 3-6 days

0

33

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

34

Toro 32146-8

Nut
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

35

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

37

Toro 3-6481

CONTROL ROD SLEEVE

$

$

Not available

38

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

39

Toro 3-8197

Link

$

$

Not available

40

Toro 3-6712

Spacer

$

$

Not available

Toro 3-8769

Loose Parts Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 3-7589

Loose Parts Kit 34"

Note: Not illustrated

$

$

Currently unavailable
