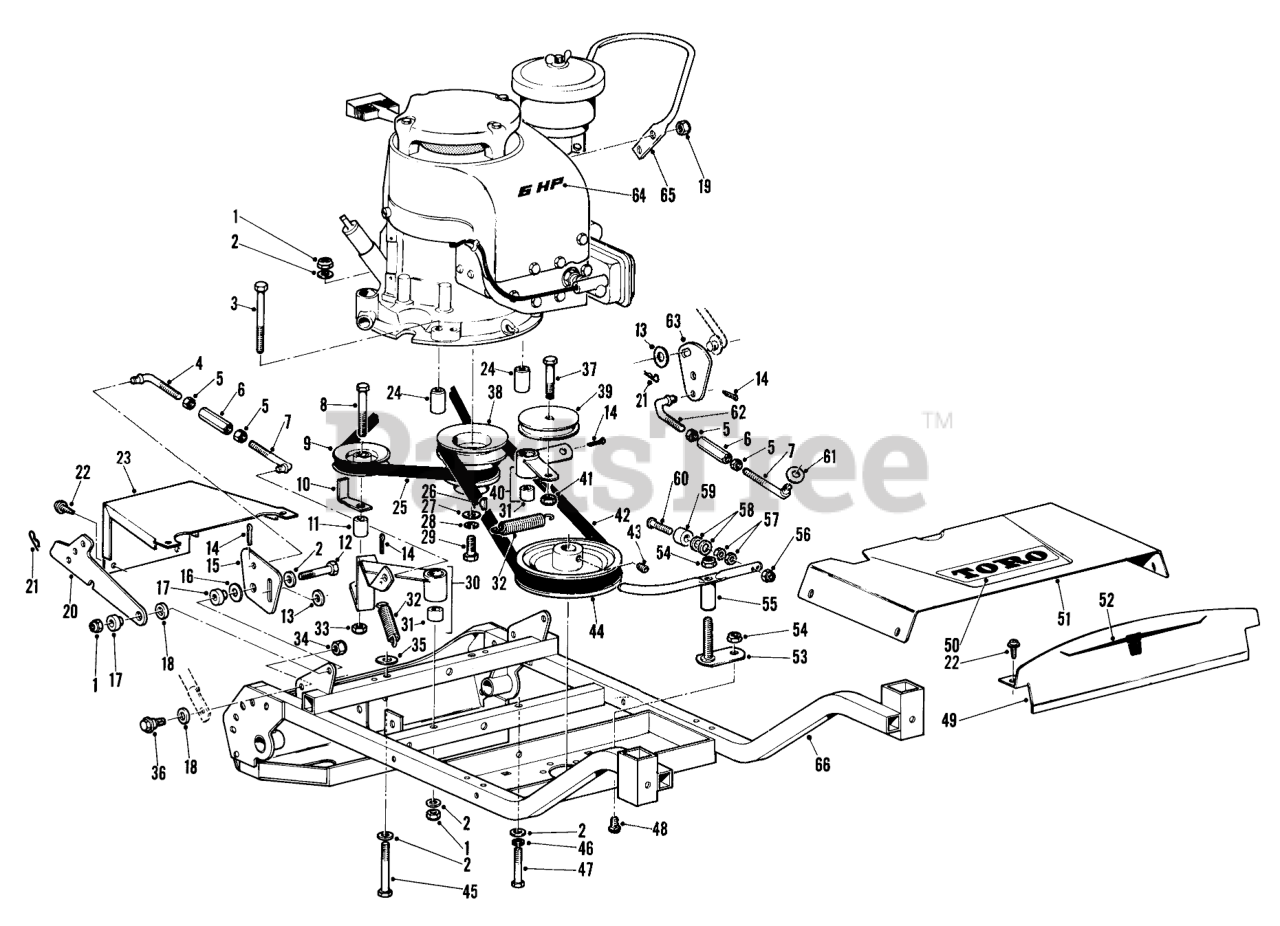

23301 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1967) 25" HEVI-DUTY PARTS LIST Parts Diagram

Walk-Behind Mower

25" HEVI-DUTY PARTS LIST Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 322-23

SCREW-HH
(Superseded to 321-9)

$4.99

$

In Stock, only 4 left!

0

4

Toro 5-1493

TRACTION LINK

$133.99

$

Usually ships in 3-6 days

0

5

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

6

Toro 3-6481

CONTROL ROD SLEEVE

$

$

Not available

7

Toro 3-8197

Link

$

$

Not available

8

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

9

Toro 3-4243

IDLER PULLEY R

$

$

Not available

10

Toro 3-6471

Hook

$

$

Not available

11

Toro 5-1607

Spacer

$

$

Currently unavailable

12

Toro 32104-37

SCREW-HWH, THREAD CUT

$4.49

$

Usually ships in 3-6 days

0

13

Toro 3-6712

Spacer

$

$

Not available

14

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

15

Toro 5-1492

Bell Crank

$

$

Not available

16

Toro 5-0744

WASHER

$

$

Not available

17

Toro 3-7811

PIVOT

$

$

Not available

18

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

19

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

20

Toro 3-2656

Latch

$

$

Not available

21

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

22

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

23

Toro 3-8152

Rear Shroud
(Superseded to 5-3482)

$

$

Not available

24

Toro 3-8164

ENGINE PIVOT SPACER

$

$

Not available

25

Toro 3-2733

V-BELT

$

$

Not available

26

Toro 3257-17

KEY-WOODRUFF

$

$

Not available

27

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

28

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

29

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

30

Toro 5-2147

Arm & Bushing Assy.

$

$

Not available

31

Toro 256-77

BUSHING

$3.49

$

Usually ships in 3-6 days

0

32

Toro 3-8135

EXTENSION SPRING

$

$

Currently unavailable

33

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

34

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

35

Toro 4-2320

WASHER

$

$

Not available

36

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

37

Toro 3-7283

Screw

$

$

Not available

38

Toro 5-1562

Pulley

$

$

Not available

39

Toro 244-63

PULLEY B

$

$

Not available

40

Toro 5-2127

Arm & Bushing Assembly

$

$

Not available

41

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

42

Toro 3-8095

CUTTER BELT

$84.99

$

Usually ships in 3-6 days

0

43

Toro 3246-3

SCREW-HSH

$13.99

$

Usually ships in 3-6 days

0

44

Toro 3-8423

CUTTER PULLEY

$

$

Not available

45

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

46

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

47

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

48

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

49

Toro 3-8151

Shroud Panel

$

$

Not available

50

Toro 3-8154

Decal

$

$

Currently unavailable

51

Toro 5-2148

FRONT SHROUD R

$

$

Not available

52

Toro 3-8155

Decal

$

$

Currently unavailable

53

Toro 3-8306

Base Pivot

$

$

Not available

54

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

55

Toro 5-2126

Brake Arm

$

$

Not available

56

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

57

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

58

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

59

Toro 237-45

BUMPER

$

$

Not available

60

Toro 3251-7

10-24X1-1/2 RND HD MS

$

$

Not available

61

Toro 3-3846

WASHER

$

$

Not available

62

Toro 5-2142

CUTTER LINK

$

$

Not available

63

Toro 5-2135

Bell Crank

$

$

Not available

64

Toro 3-8153

Decal

$

$

Currently unavailable

65

Toro 3-8282

Arm

$

$

Not available

66

Toro 5-2134

Frame

$

$

Not available
