23301 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1967) 25" & 34" GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

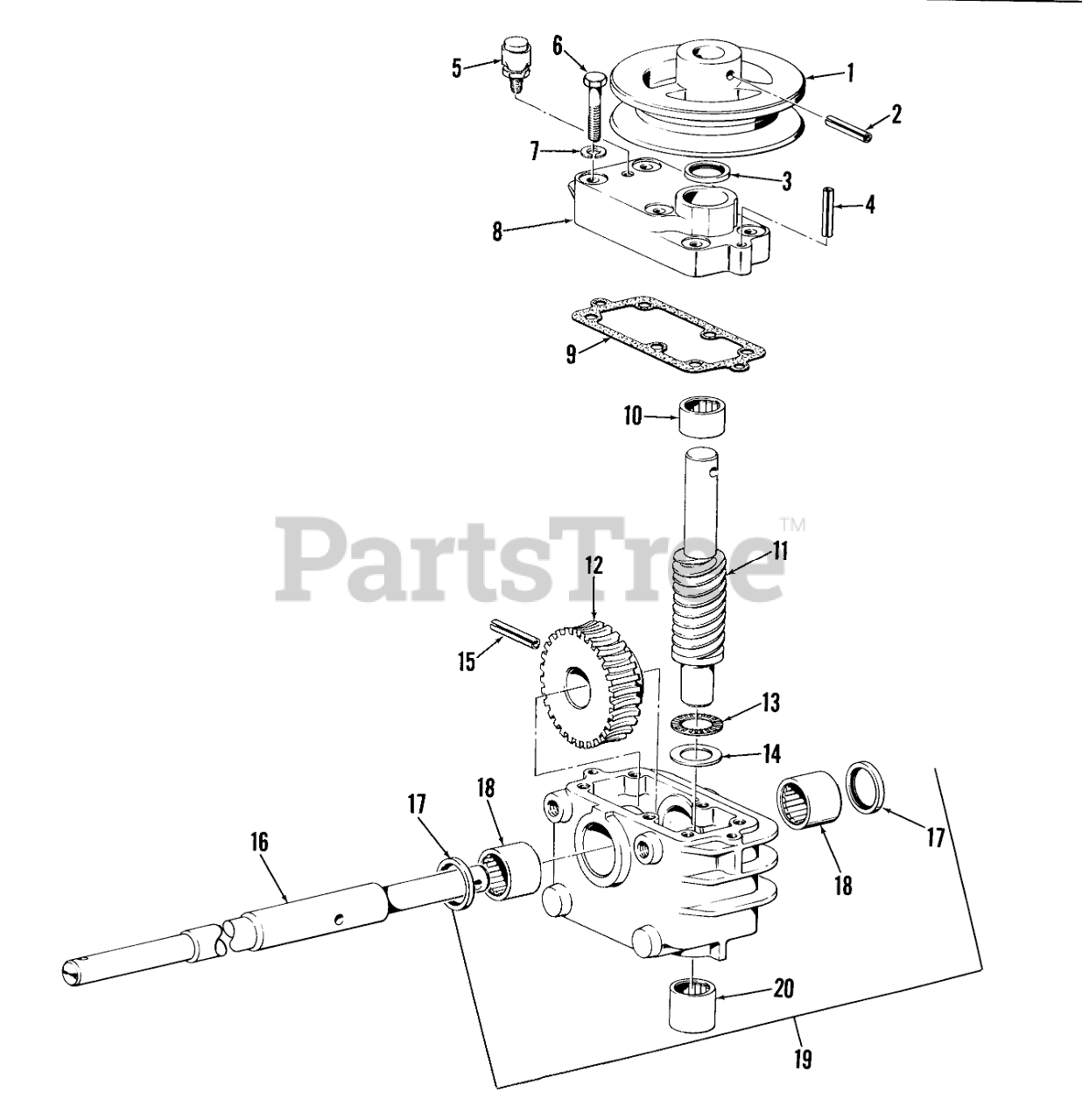

25" & 34" GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 5-1584

Pulley

$

$

Not available

2

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

3

Toro 253-85

5/8 X .125 OIL SEAL

$

$

Not available

4

Toro 32121-2

PIN-ROLL, SLOTTED

$0.99

$

In Stock, Qty 9

0

5

Toro 302-4

Vent
(Superseded to 302-11)

$1.99

$

In Stock, only 2 left!

0

6

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

7

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 5-1556

Cover, Gear Case

$

$

Not available

9

Toro 3-4512

Gasket

$

$

Not available

10

Toro 252-64

.625 NEEDLE BEARING

$

$

Currently unavailable

11

Toro 5-1563

Shaft, Worm

$

$

Not available

12

Toro 5-1565

WORM GEAR

$

$

Not available

13

Toro 252-58

NEEDLE BRG

$43.99

$

Usually ships in 3-6 days

0

14

Toro 252-59

BEARING-THRUST
(Superseded to 7418)

$7.49

$

In Stock, only 4 left!

0

15

Toro 32121-12

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

16

Toro 5-2123

Drive Shaft

$

$

Not available

16

Toro 5-2208

Drive Shaft 34" H.D.

$

$

Currently unavailable

17

Toro 253-84

SEAL-OIL

$11.99

$

Usually ships in 3-6 days

0

18

Toro 252-6

BEARING-NEEDLE

$13.99

$

In Stock, Qty 13

0

19

Toro 3-7539

Gear Case Assy. w/Bearing (Incl. Ref. Nos. 17, 18 & 20)

$

$

Not available

20

Toro 252-57

.625 NEEDLE BEARING

$

$

Not available
