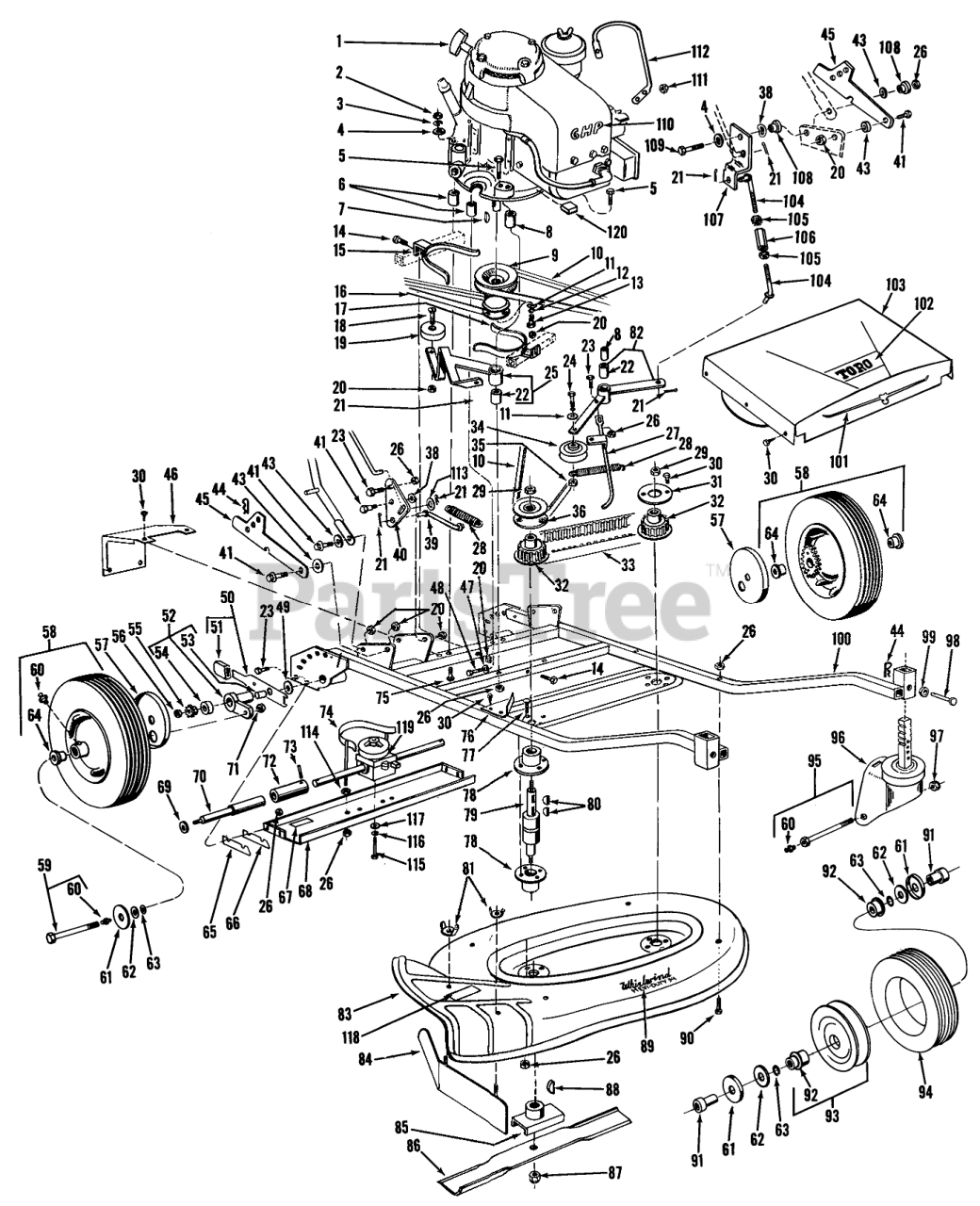

23300 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1965) 34" HEVI-DUTY PARTS LIST Parts Diagram

Walk-Behind Mower

34" HEVI-DUTY PARTS LIST Parts Diagram

  • Title

1

Toro 221-254

Engine

$

$

Currently unavailable

2

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 322-22

SCREW-HH
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

6

Toro 3-7824

Spacer

$

$

Currently unavailable

7

Toro 3257-17

KEY-WOODRUFF

$

$

Not available

8

Toro 3-8164

ENGINE PIVOT SPACER

$

$

Not available

9

Toro 3-8165

Pulley

$

$

Currently unavailable

10

Toro 3-8166

CUTTER BELT

$

$

Not available

11

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

12

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

13

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

14

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3-8173

Retainer, Belt

$

$

Currently unavailable

16

Toro 3-8093

Belt

$

$

Currently unavailable

17

Toro 3-8142

Retainer Belt

$

$

Currently unavailable

18

Toro 32108-25

Flat Head Screw

$

$

Currently unavailable

19

Toro 244-63

PULLEY B

$

$

Not available

20

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

21

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

22

Toro 256-77

BUSHING

$3.49

$

Usually ships in 3-6 days

0

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

24

Toro 3-7283

Screw

$

$

Not available

25

Toro 3-8136

Idler Arm

$

$

Not available

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 3-8203

Brake Arm

$

$

Currently unavailable

28

Toro 3-8135

EXTENSION SPRING

$

$

Currently unavailable

29

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

30

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

31

Toro 3-7647

Belt Guide

$

$

Currently unavailable

32

Toro 3-7691

Pulley

$

$

Currently unavailable

33

Toro 3-7677

Belt

$

$

Not available

34

Toro 3-4243

IDLER PULLEY R

$

$

Not available

35

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

36

Toro 3-5878

Pulley

$

$

Currently unavailable

38

Toro D-342

Washer

$

$

Currently unavailable

39

Toro 3-8141

Link

$

$

Currently unavailable

40

Toro 3-8128

Bellcrank

$

$

Currently unavailable

41

Toro 3-1846

Screw
(Superseded to 5-2490)

$

$

Not available

42

Toro 3-8193

Lower Handle Assy.

$

$

Currently unavailable

43

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

44

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

45

Toro 3-2656

Latch

$

$

Not available

46

Toro 3-8152

Rear Shroud
(Superseded to 5-3482)

$

$

Not available

47

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

48

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

49

Toro 3-0737

WASHER

$9.49

$

In Stock, only 3 left!

0

50

Toro 3-0768

Spring Arm

$

$

Currently unavailable

51

Toro 3-0650

Knob

$

$

Not available

52

Toro 3-8117

Pivot Arm

$

$

Not available

Toro 3-8116

Pivot Arm

Note: Not illustrated

$

$

Not available

53

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

54

Toro 251-183

.375 RPP BALL BEARING

$65.99

$

Usually ships in 3-6 days

0

55

Toro 3-3039

Pinion Kit

$

$

Currently unavailable

56

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

Toro 3-5781

Nut
(Superseded to 3220-16)

Note: Not illustrated

$1.99

$

In Stock, Qty 5

0

57

Toro 3-8127

Wheel Cover

$

$

Not available

58

Toro 3-9317

Rear Wheel Assy.

$

$

Not available

59

Toro 3-2819

Axle Bolt Use on Serial No. 1 thru 250

$

$

Currently unavailable

Toro 3213-12

SCREW-HH

$

$

Not available

60

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

61

Toro 3-4416

SLINGER

$

$

Not available

62

Toro 3-4417

Washer

$

$

Not available

63

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

64

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

Toro 251-191

BEARING

$

$

Not available

65

Toro 3-8414

Shim .015

$

$

Currently unavailable

66

Toro 3-8413

Shim .030

$

$

Currently unavailable

67

Toro Z-121-42

Serial Name Plate

$

$

Currently unavailable

68

Toro 3-8104

Support

$

$

Currently unavailable

69

Toro 3-8115

Washer

$

$

Not available

70

Toro 3-8113

Drive Spindle
(Superseded to 5-2132)

$

$

Not available

Toro 3-8114

Drive Spindle
(Superseded to 5-2131)

Note: Not illustrated

$

$

Not available

71

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 4 left!

0

72

Toro 2-9839

Clutch Assembly

$

$

Not available

Toro 2-9889

Clutch Assembly

Note: Not illustrated

$

$

Currently unavailable

73

Toro 32121-64

Groove Pin

$

$

Currently unavailable

74

Toro 3-8106

Belt Band

$

$

Currently unavailable

75

Toro 32122-35

SCREW

$

$

Currently unavailable

76

Toro 3-8183

Belt Retainer

$

$

Currently unavailable

77

Toro 3-5861

Bolt
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

78

Toro 3-8178

Bearing Housing

$

$

Not available

79

Toro 3-8176

Bearing, Spindle

$

$

Currently unavailable

Toro 3-8177

Bearing, Spindle

Note: Not illustrated

$

$

Currently unavailable

80

Toro 3257-30

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

81

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

82

Toro 3-8198

Arm & Bushing Assembly

$

$

Currently unavailable

83

Toro 3-8167

Housing

$

$

Currently unavailable

84

Toro 3-7704

Leaf Mulcher

$

$

Currently unavailable

85

Toro 3-8181

BLADE RETAINER WA

$

$

Not available

86

Toro 3-8312

18 BLADE

$

$

Not available

87

Toro 3296-7

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

88

Toro 3-7681

Key

$

$

Currently unavailable

89

Toro 3-8188

Decal

$

$

Currently unavailable

90

Toro 32122-35

SCREW

$

$

Currently unavailable

91

Toro 3-8101

Spacer

$

$

Currently unavailable

92

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

93

Toro 3-2839

Wheel Disc (Includes no. 92)
(Superseded to 3-2179)

$142.99

$

In Stock, only 1 left!

0

94

Toro 234-18

1.75-8 SEMIPNEU TIRE

$

$

Not available

95

Toro 3-2389

Axle Bolt w/Zerk

$

$

Not available

96

Toro 3-8097

Caster

$

$

Currently unavailable

97

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

98

Toro 283-22

Pin

$

$

Currently unavailable

99

Toro 237-60

Grommet

$

$

Currently unavailable

100

Toro 3-8157

Frame

$

$

Currently unavailable

101

Toro 3-8191

Decal

$

$

Currently unavailable

102

Toro 3-8154

Decal

$

$

Currently unavailable

103

Toro 3-8184

Shroud

$

$

Currently unavailable

104

Toro 3-8197

Link

$

$

Not available

105

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

106

Toro 3-6481

CONTROL ROD SLEEVE

$

$

Not available

107

Toro 3-8196

Bell Crank

$

$

Currently unavailable

108

Toro 3-7811

PIVOT

$

$

Not available

109

Toro 32104-37

SCREW-HWH, THREAD CUT

$4.49

$

Usually ships in 3-6 days

0

110

Toro 3-8187

Decal

$

$

Currently unavailable

111

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

112

Toro 3-8282

Arm

$

$

Not available

113

Toro 3-6712

Spacer

$

$

Not available

114

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

115

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

116

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

117

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

118

Toro 3-5888

Decal

$

$

Currently unavailable

119

Toro 3-2439

Transmission Assembly

$

$

Currently unavailable

120

Toro 3-9451

Spacer

$

$

Currently unavailable
