23300 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1965) 25" AND 34" ENGINE PARTS LIST Parts Diagram

Walk-Behind Mower

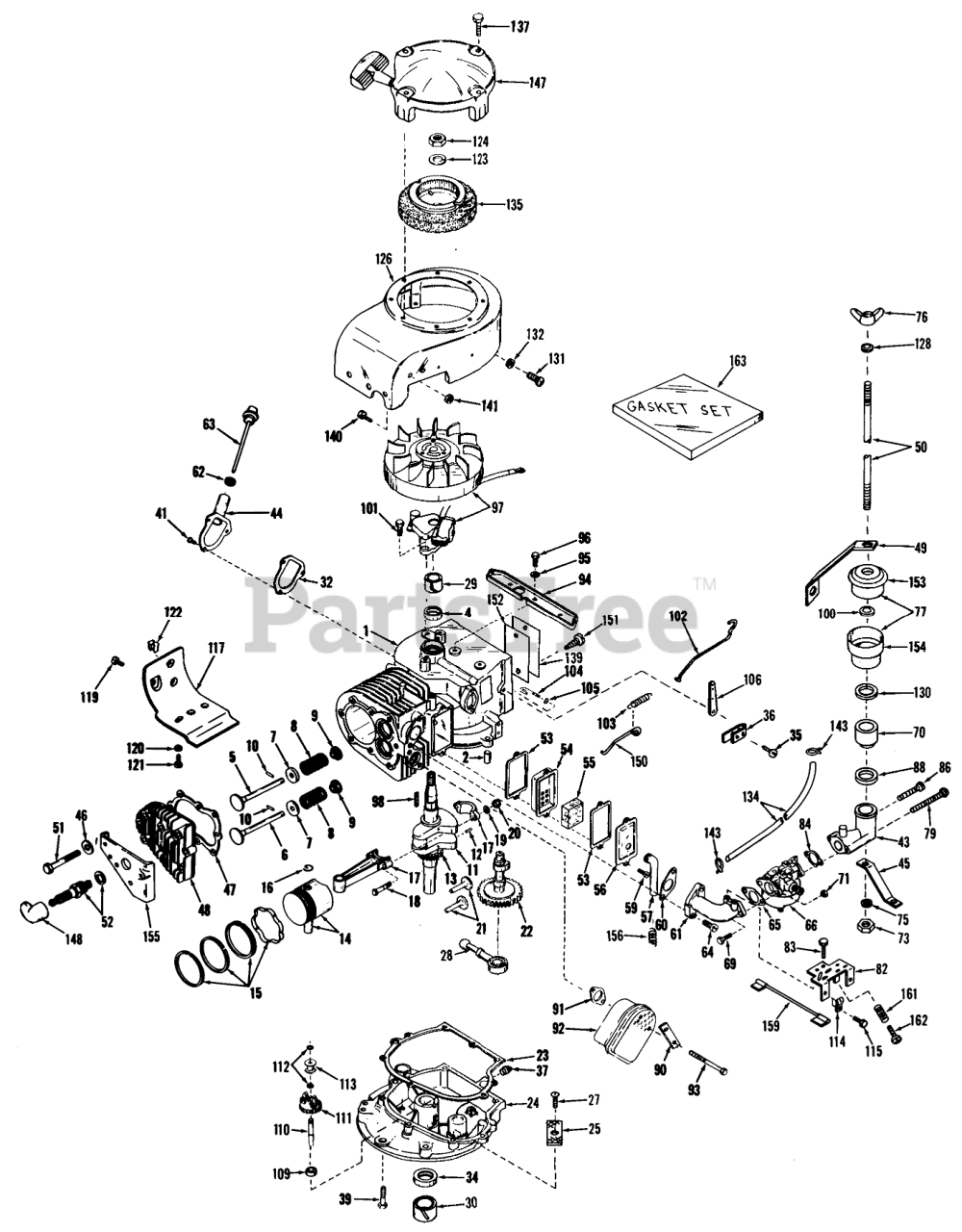

25" AND 34" ENGINE PARTS LIST Parts Diagram

  • Title

1

Tecumseh 31536A

Cylinder Assy. (Incl. Nos. 2, 4 & 29)
(Superseded to 31536B)

$

$

Currently unavailable

2

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

4

Tecumseh 27876B

Seal, Oil

Note: Included in gasket set Num 31372a.

$12.99

$

Usually ships in 3-12 days

0

5

Tecumseh 31467

Valve, Intake (Standard)
(Superseded to 27878A)

$23.99

$

Usually ships in 3-12 days

0

5

Tecumseh 31468

Valve, Intake (1/32" oversize)(Incl. No. 9)
(Superseded to 27880A)

$

$

Not available

6

Tecumseh 31469

Valve, Exhaust (Standard)
(Superseded to 27878A)

$23.99

$

Usually ships in 3-12 days

0

6

Tecumseh 31470

Valve, Exhaust (1/32" oversize)(Incl. No. 9)
(Superseded to 27880A)

$

$

Not available

7

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, only 4 left!

0

8

Tecumseh 27881

Spring-Valve

$3.99

$

In Stock, only 2 left!

0

9

Tecumseh 27883

Cap, Lower valve spring

$

$

Not available

9

Tecumseh 30964

Cap, Lower Valve Spring (1/32" oversize)

$5.49

$

Usually ships in 3-12 days

0

10

Tecumseh 20810

Pin, Valve spring retaining

$1.99

$

In Stock, Qty 6

0

11

Tecumseh 31783

Crankshaft Assy. (Incl. Nos. 12 & 13) 25" Whirlwind only
(Superseded to 29477A)

$

$

Currently unavailable

11

Tecumseh 30896

Crankshaft Assy 34" Whirlwind only
(Superseded to 30896B)

$

$

Not available

12

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27884

Gear-Crankshaft

$11.99

$

In Stock, only 1 left!

0

14

Tecumseh 30662

Piston & Pin Assy. (Standard)(Incl. 2 of No. 16)
(Superseded to 33312B)

$

$

Not available

14

Tecumseh 30663

Piston & Pin Assy. (.010 oversize)(Inc. 2 of No. 16)
(Superseded to 33313B)

$55.99

$

Usually ships in 3-12 days

0

14

Tecumseh 30664

Piston & Pin Assy. (.020 oversize)(Incl. 2 of No. 16)
(Superseded to 33314B)

$61.99

$

Usually ships in 3-12 days

0

15

Tecumseh 31498

Clevis Pin
(Superseded to 34854)

$

$

Not available

15

Tecumseh 31499

Ring Set, Piston (.010 oversize)
(Superseded to 34855)

$

$

Not available

15

Tecumseh 31500

Ring Set, Piston (.020 oversize)
(Superseded to 34856)

$

$

Not available

16

Tecumseh 27888

Ring-Retaining, Piston Pin

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 31466

Rod Assy, Connecting (Incl. Nos. 18, 19 & 20) 25" W.W
(Superseded to 31295C)

$

$

Not available

17

Tecumseh 30949

Rod Assy, Connecting (Incl. Nos. 18, 19 & 20) 34" Whirlwind only
(Superseded to 31380C)

$

$

Not available

18

Tecumseh 30682

Bolt, Connecting Rod

$

$

Currently unavailable

19

Tecumseh 26073

Washer

$

$

Not available

20

Tecumseh 28264

Nut

$3.99

$

In Stock, only 2 left!

0

21

Tecumseh 27893

Lifter Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

22

Tecumseh 31354

Camshaft
(Superseded to 32114)

$92.99

$

Usually ships in 3-12 days

0

23

Tecumseh 30684

Gasket-Cover, Cylinder

Note: Included in gasket set Num 31372a.

$4.49

$

In Stock, Qty 6

0

24

Tecumseh 31552B

Flange Assy., Mounting (Incl. Nos. 25, 27, 30, 34, 37 & 110)
(Superseded to 31552C)

$

$

Not available

25

Tecumseh 31355

Screen-Oil Filter

$5.49

$

Usually ships in 3-12 days

0

27

Tecumseh 29117

Screw

$1.99

$

In Stock, only 1 left!

0

28

Tecumseh 31356

Pump, Oil

$12.99

$

Usually ships in 3-12 days

0

29

Tecumseh 31461

Bushing, Crankshaft

$24.99

$

In Stock, only 1 left!

0

30

Tecumseh 31462

Bushing, Crankshaft

$

$

Not available

32

Tecumseh 28747

Gasket, Filler tube

Note: Included in gasket set Num 31372a.

$0.99

$

Usually ships in 3-12 days

0

34

Tecumseh 27897

Seal-Oil

Note: Included in gasket set Num 31372a.

$8.49

$

In Stock, Qty 17

0

35

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

36

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

39

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

41

Tecumseh 28749

Screw

$

$

Currently unavailable

43

Tecumseh 31473

Elbow, Air cleaner

$

$

Currently unavailable

44

Tecumseh 29759

Tube, Oil Filler

$

$

Currently unavailable

45

Tecumseh 31475

Brace, Cleaner elbow

$

$

Currently unavailable

46

Tecumseh 26073

Washer

$

$

Not available

47

Tecumseh 28938B

Gasket-Head, Cylinder
(Superseded to 28938C)

Note: Included in gasket set Num 31372a.

$9.99

$

In Stock, Qty 6

0

48

Tecumseh 30938A

CYLINDER HEAD
(Superseded to 36446)

$

$

Not available

49

Tecumseh 31474

Brace Cleaner

$

$

Currently unavailable

50

Tecumseh 31476

Stud, Air cleaner

$3.49

$

Usually ships in 3-12 days

0

51

Tecumseh 28261

Screw
(Superseded to 650697A)

$1.99

$

In Stock, Qty 11

0

52

Tecumseh 21943

SPARK PLUG
(Superseded to 33636)

$5.49

$

In Stock, Qty 13

0

53

Tecumseh 27896

Gasket-Breather
(Superseded to 27896A)

Note: Included in gasket set Num 31372a.

$1.49

$

In Stock, Qty 10

0

54

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 1 left!

0

55

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, only 3 left!

0

56

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 1 left!

0

57

Tecumseh 27627

Tube-Breather
(Superseded to 35350)

$6.49

$

Usually ships in 3-12 days

0

59

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

60

Tecumseh 27915

Gasket-Intake
(Superseded to 27915A)

Note: Included in gasket set Num 31372a.

$5.99

$

In Stock, Qty 20+

0

61

Tecumseh 31512

Pipe, Intake

$

$

Currently unavailable

61

Tecumseh 31358

Pipe, Intake

$

$

Currently unavailable

62

Tecumseh 29673

Gasket

Note: Included in gasket set Num 31372a.

$1.99

$

In Stock, only 3 left!

0

63

Tecumseh 29760

Dipstick, Oil (Incl. No. 62)

$7.49

$

Usually ships in 3-12 days

0

64

Tecumseh 650378

Screw (T-30, 5/16-18x1-3/32)

$1.99

$

In Stock, only 3 left!

0

65

Tecumseh 26756

Gasket

Note: Included in gasket set Num 31372a.

$2.99

$

In Stock, Qty 9

0

66

Tecumseh 631115

Carburetor
(Superseded to 631799A)

$

$

Not available

69

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

70

Tecumseh 29497

Spacer, Cleaner

$

$

Currently unavailable

71

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

73

Tecumseh 650129

Nut
(Superseded to 650456)

$1.99

$

In Stock, only 1 left!

0

75

Tecumseh 27513

Lockwasher, Split

$1.99

$

Usually ships in 3-12 days

0

76

Tecumseh 650513

Nut-Wing
(Superseded to 650825)

$1.99

$

In Stock, only 2 left!

0

77

Tecumseh 31477

Cleaner Assy., Oil bath air (Incl. Nos. 100, 128, 130, 153 & 154)
(Superseded to 32561)

$52.99

$

Usually ships in 3-12 days

0

79

Tecumseh 650519

Screw

$

$

Currently unavailable

82

Tecumseh 31736

Control Assy., Speed
(Superseded to 32181A)

$

$

Not available

83

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

84

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Included in gasket set Num 31372a.

$4.49

$

In Stock, Qty 20+

0

86

Tecumseh 28597

KIT - SEAL & WIPER
(Superseded to 650163)

$1.99

$

In Stock, only 3 left!

0

88

Tecumseh 27165

Gasket, Spacer

Note: Included in gasket set Num 31372a.

$

$

Currently unavailable

90

Tecumseh 31588

Plate-Locking

$4.99

$

In Stock, Qty 20+

0

91

Tecumseh 27930

Gasket Exhaust
(Superseded to 35865)

Note: Included in gasket set Num 31372a.

$2.49

$

In Stock, only 2 left!

0

92

Tecumseh 28269

Muffler

$

$

Not available

93

Tecumseh 27931

Screw
(Superseded to 650696)

$3.99

$

In Stock, only 2 left!

0

94

Tecumseh 28738

Bracket, Blower housing (Incl. Nos. 131 & 132)
(Superseded to 29536)

$18.99

$

Usually ships in 3-12 days

0

95

Tecumseh 8303

Lockwasher
(Superseded to 27513)

$1.99

$

Usually ships in 3-12 days

0

96

Tecumseh 650216

Screw
(Superseded to 650517)

$1.99

$

In Stock, only 1 left!

0

97

Tecumseh 610689

Magneto

$

$

Currently unavailable

98

Tecumseh 30884

Key, Flywheel

$2.99

$

In Stock, only 4 left!

0

100

Tecumseh 31480

"O" Ring

$

$

Currently unavailable

101

Tecumseh 650489

Screw

$

$

Not available

102

Tecumseh 31823

Link Governor

$1.99

$

In Stock, only 4 left!

0

103

Tecumseh 31361

Spring Governor

$1.99

$

In Stock, Qty 5

0

104

Tecumseh 30669

Rod. Governor (Incl. No. 105)

$7.49

$

In Stock, only 1 left!

0

105

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

106

Tecumseh 31357

Lever-Governor

$1.99

$

In Stock, only 1 left!

0

109

Tecumseh 31707

Spacer
(Superseded to 31707A)

$1.99

$

In Stock, only 2 left!

0

110

Tecumseh 30668

Shaft, Governor

$1.99

$

Usually ships in 3-12 days

0

111

Tecumseh 30591

Governor Gear ASM

$13.99

$

In Stock, only 1 left!

0

112

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

113

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

114

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

115

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

117

Tecumseh 30622

Emnsion, Blower Housing
(Superseded to 30622A)

$

$

Not available

119

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

120

Tecumseh 8303

Lockwasher
(Superseded to 27513)

$1.99

$

Usually ships in 3-12 days

0

121

Tecumseh 650306

Screw

$

$

Currently unavailable

122

Tecumseh 27275

51004 GIL ROTARY TI

$1.99

$

In Stock, Qty 7

0

123

Tecumseh 650490

Washer
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

124

Tecumseh 8116

Nut

$1.99

$

In Stock, only 4 left!

0

126

Tecumseh 31501

Housing, Blower
(Superseded to 31615A)

$

$

Currently unavailable

128

Tecumseh 31481

Washer

$

$

Currently unavailable

130

Tecumseh 31479

1565F GIL TILLER.AD

$

$

Currently unavailable

131

Tecumseh 29596

Screw
(Superseded to 29747B)

$1.99

$

In Stock, Qty 9

0

132

Tecumseh 8274

Lockwasher

$1.99

$

Usually ships in 3-12 days

0

134

Tecumseh 30962

Line-Fuel

$30.99

$

In Stock, Qty 6

0

135

Tecumseh 29709

Hub & Screen

$

$

Not available

137

Tecumseh 650547

Screw
(Superseded to 650601)

$

$

Currently unavailable

139

Tecumseh 31865

480B GIL SNWTHWR O/
(Superseded to 36261)

$

$

Not available

140

Tecumseh 28454

Screw

$

$

Currently unavailable

141

Tecumseh 650586

Nut-Jam (5/16-24)

$1.99

$

Usually ships in 3-12 days

0

143

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

147

Tecumseh 28319A

Starter, Rewind

$

$

Currently unavailable

148

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

150

Tecumseh 31362

Link, Governor spring

$

$

Not available

151

Tecumseh 28670

Stud

$

$

Currently unavailable

152

Tecumseh 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

153

Tecumseh 31669

Cover, Oil bath cleaner

$

$

Currently unavailable

154

Tecumseh 31670

Bowl, Oil Bath Cleaner

$

$

Currently unavailable

155

Tecumseh 30939

Cover, Cylinder head
(Superseded to 30939B)

$

$

Not available

156

Tecumseh 31778

Spring, Coil

$

$

Currently unavailable

159

Tecumseh 28468

Wire, Ground
(Superseded to 35349)

$

$

Not available

161

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

162

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

163

Tecumseh 31372A

Gasket Set
(Superseded to 33234B)

$26.99

$

Usually ships in 3-12 days

0
