23267 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) REWIND STARTER N0. 590420 Parts Diagram

Walk-Behind Mower

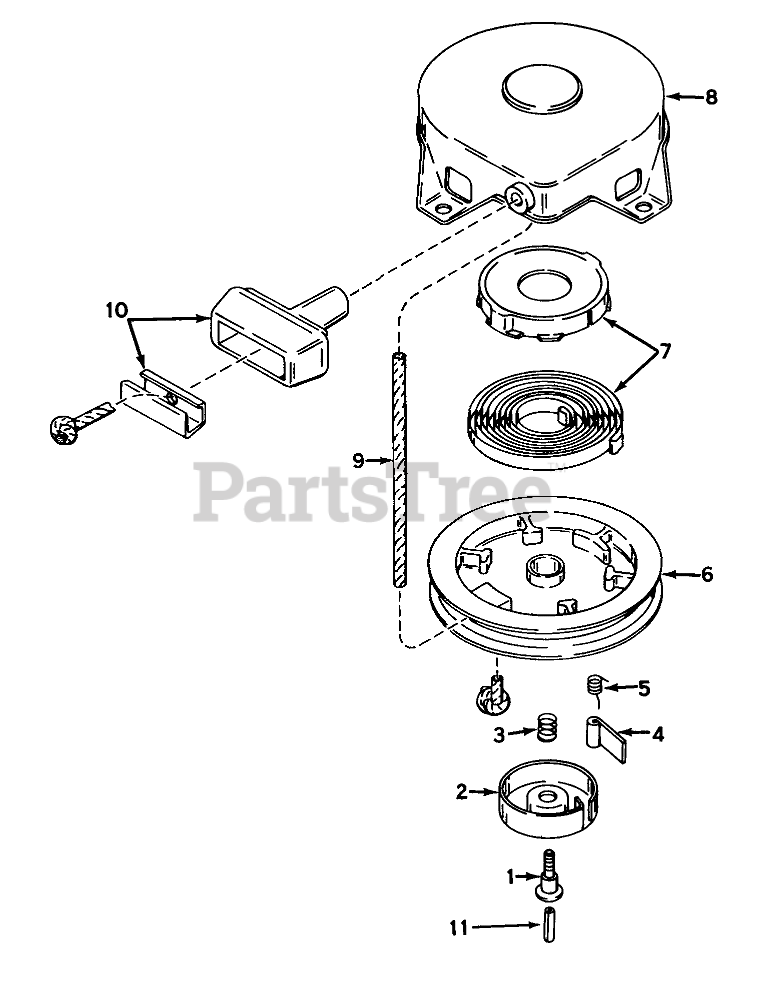

REWIND STARTER N0. 590420 Parts Diagram

$3.99

$

Usually ships in 3-12 days

0

2

Tecumseh 590410

Retainer

$7.99

$

In Stock, only 2 left!

0

3

Tecumseh 590411

Spring-Brake

$3.49

$

In Stock, only 2 left!

0

4

Tecumseh 590148

Dog-Starter

$3.49

$

In Stock, Qty 6

0

5

Tecumseh 590412

Spring-Dog

$8.49

$

In Stock, only 2 left!

0

6

$29.99

$

In Stock, only 2 left!

0

7

Tecumseh 590414

Spring & Keeper Assy

$14.99

$

Usually ships in 3-12 days

0

8

Tecumseh 590415

Housing Assy., Starter (Incl. Ref. #1)
(Superseded to 590536)

$

$

Not available

9

Tecumseh 590386

Rope Starter
(Superseded to 590535)

$9.49

$

In Stock, Qty 8

0

10

Tecumseh 590387

Assy., Starter

$3.99

$

Usually ships in 3-12 days

0

11

Tecumseh 590459

Centering

$

$

Not available
