23267 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) FRAME AND CUTTER HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

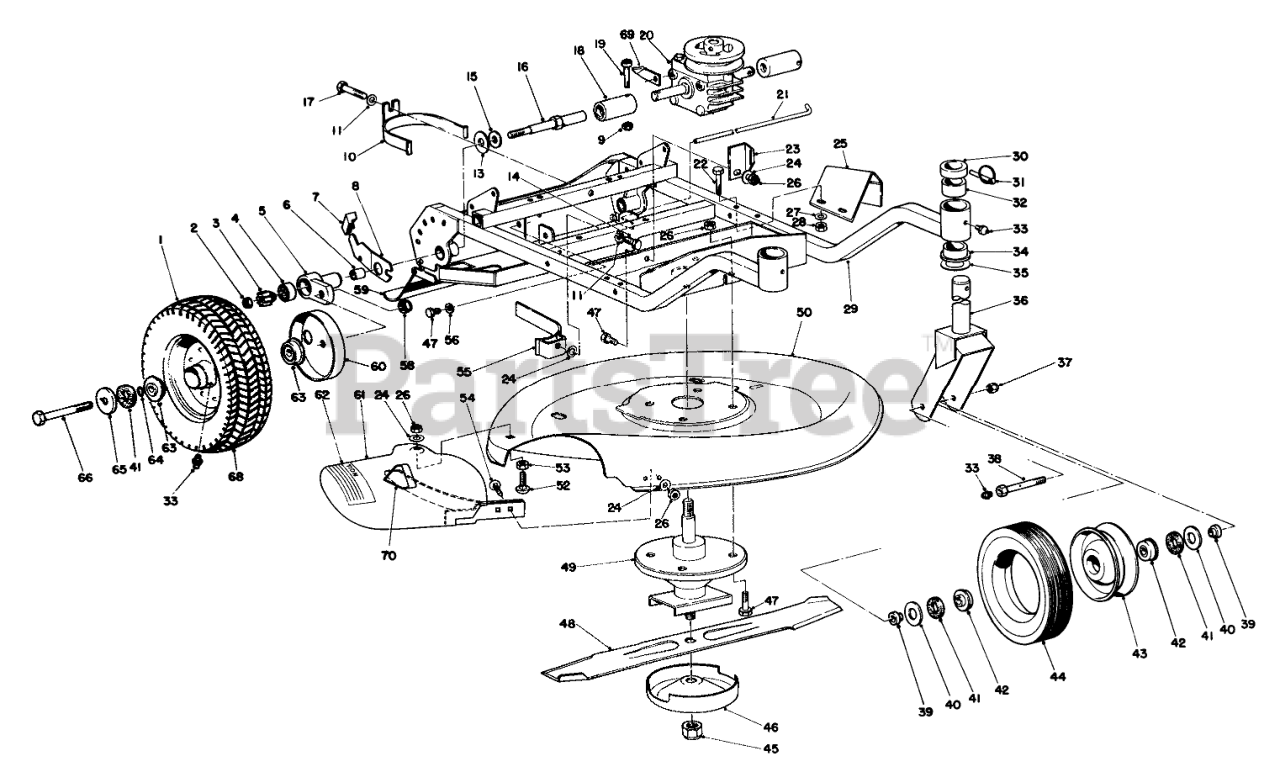

FRAME AND CUTTER HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 3-9219

Rear Wheel Assembly (Incl. Ref. #33, 63 & 68)

$

$

Not available

2

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

Toro 3220-16

NUT-JAM, LH

Note: Not illustrated

$1.99

$

In Stock, Qty 5

0

3

Toro 3-7829

Pinion Kit

$

$

Not available

4

Toro 251-183

.375 RPP BALL BEARING

$65.99

$

Usually ships in 3-6 days

0

5

Toro 3-8117

Pivot Arm Assembly, Right (Incl. Ref. #4 & 6)

$

$

Not available

Toro 3-8116

Pivot Arm Assy., Left (Incl. Ref. #4 & 6)

Note: Not illustrated

$

$

Not available

6

Toro 256-1

BUSHING

$29.99

$

In Stock, only 2 left!

0

7

$

$

Not available

Toro 5-0657

ARM KNOB

Note: Not illustrated

$

$

Not available

8

Toro 5-2118

RH SPRING ARM ASM

$

$

Not available

Toro 5-2117

LH SPRING ARM ASM

Note: Not illustrated

$

$

Not available

9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 5-2145

Belt Retainer W.A.

$

$

Not available

11

Toro 3253-23

WASHER-LOCK/SP

$5.49

$

In Stock, only 3 left!

0

13

Toro 3-8115

Washer

$

$

Not available

14

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 252-73

Washer
(Superseded to 60-8030)

$

$

Not available

16

Toro 5-2131

DRIVE SPINDLE

$

$

Not available

Toro 5-2132

DRIVE SPINDLE

Note: Not illustrated

$

$

Not available

17

Toro 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

18

Toro 6-7179

CLUTCH ASM

$

$

Not available

Toro 6-7189

CLUTCH ASM

Note: Not illustrated

$

$

Not available

19

Toro 5-1491

DRIVE SCREW

$

$

Not available

20

Toro 3-8699

Transmission Assembly

$

$

Not available

21

Toro 33-3207

SHIELD ROD

$

$

Not available

22

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

23

Toro 3-8308

Belt Retainer

$

$

Not available

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 25-7080

Step Plate

$

$

Not available

26

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

29

Toro 29-6680

Frame (Incl. Ref. #32 & 34)

$

$

Not available

30

Toro 10-9310

HT OF CUT SPACER

$21.99

$

Usually ships in 3-6 days

0

31

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$10.99

$

In Stock, only 1 left!

0

32

Toro 256-101

7/8 ID X 1.128 X 7/8 LG BSHG

$10.99

$

Usually ships in 3-6 days

0

33

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

34

Toro 256-148

FLANGE BUSHING

$

$

Currently unavailable

35

Toro 3-0737

WASHER

$9.49

$

In Stock, only 3 left!

0

36

Toro 10-9380

CASTOR FORK WA RO

$

$

Not available

37

Toro 32146-13

NUT-HEX

$4.49

$

In Stock, only 4 left!

0

38

Toro 10-9300

AXLE BOLT

$50.99

$

Usually ships in 3-6 days

0

39

Toro 10-9270

CASTOR SPACER

$

$

Not available

40

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

41

Toro 3-4417

Washer

$

$

Not available

42

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

43

Toro 3-2179

Wheel (Incl. Ref. #42 & 44)

$142.99

$

In Stock, only 1 left!

0

44

Toro 234-18

1.75-8 SEMIPNEU TIRE

$

$

Not available

45

$11.99

$

In Stock, only 4 left!

0

46

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

47

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

48

Toro 26-8060

Blade
(Superseded to 26-8060-03)

$56.99

$

Usually ships in 3-6 days

0

49

Toro 19-2140

Mower Spindle

$

$

Not available

50

Toro 124290

Housing

$

$

Currently unavailable

52

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

53

Toro 3290-147

PAL NUT

$

$

Not available

54

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

55

Toro 29-6710

Belt Retainer

$

$

Not available

56

Toro 32534

Lockwasher

$

$

Currently unavailable

58

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

59

Toro 38-4960

REAR SAFETY SHIELD

$

$

Not available

60

Toro 3-8127

Wheel Cover

$

$

Not available

61

Toro 29-6780

DefIector

$

$

Not available

62

Toro 40-4720

Decal

$

$

Not available

63

Toro 251-191

BEARING

$

$

Not available

64

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

65

Toro 3-4416

SLINGER

$

$

Not available

66

Toro 3213-12

SCREW-HH

$

$

Not available

68

Toro 234-22

3.50X10 SEMIPNEU TIRE

$

$

Not available

69

Toro 5-1592

Retainer

$

$

Not available

70

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0
