23267 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) ENGINE TECUMSEH MODEL NO. TVM140-70287L Parts Diagram

Walk-Behind Mower

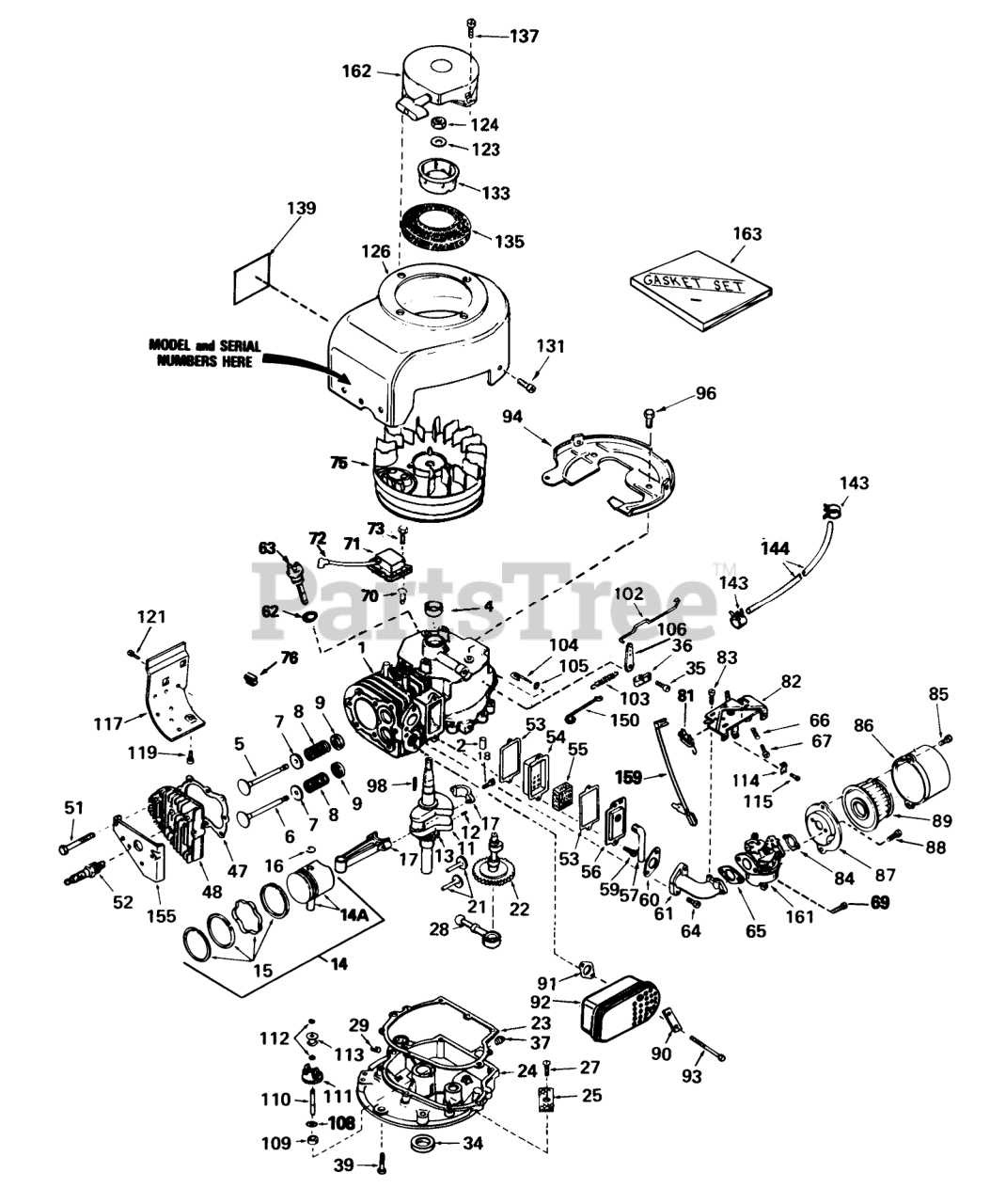

ENGINE TECUMSEH MODEL NO. TVM140-70287L Parts Diagram

  • Title

1

Tecumseh 34913A

Cylinder Assy. (Incl. Ref. #2 & 4)

$268.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

4

Tecumseh 32630

Oil Seal

$8.49

$

Usually ships in 3-12 days

0

5

Tecumseh 32783

Valve, Intake (Std.)(Incl. Ref. #9)

$16.99

$

In Stock, only 2 left!

0

5

Tecumseh 32784

Valve, Intake (1/32" Oversize)(Incl. Ref. #9)

$69.99

$

Usually ships in 3-12 days

0

6

Tecumseh 27878A

Valve, Exhaust (Std.)(Incl. Ref. #9)

$23.99

$

Usually ships in 3-12 days

0

6

Tecumseh 27880A

Valve, Exhaust (1/32" Oversize)(Incl. Ref. #9)

$

$

Not available

7

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, only 4 left!

0

8

Tecumseh 27881

Spring-Valve

$3.99

$

In Stock, only 2 left!

0

9

Tecumseh 32581

Keeper-Spring, Valve

$6.49

$

In Stock, Qty 10

0

11

Tecumseh 35209

Crankshaft Assy. (Incl. Ref. #12 & 13)

$140.99

$

Usually ships in 3-12 days

0

12

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27884

Gear-Crankshaft

$11.99

$

In Stock, only 1 left!

0

14

Tecumseh 34531

Piston, Pin & Ring Assy. (Std.)(Incl. Ref. #14A,15 & 16)

$

$

Not available

14

Tecumseh 34532

Piston, Pin & Ring Assy. (.010 Oversize)(Incl. Ref. #14A,15 & 16)

$

$

Not available

14

Tecumseh 34533

Piston, Pin & Ring Assy. (.020 Oversize)(Incl. Ref. #14A,15 & 16)

$

$

Not available

14A

Tecumseh 33312B

Piston & Pin Assy. (Std.)(Incl. Ref. #16)

$

$

Not available

14A

Tecumseh 33313B

Piston & Pin Assy. (.010 Oversize)(Incl. Ref. #16)

$55.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 33314B

Piston & Pin Assy. (.020 Oversize)(Incl. Ref. #16)

$61.99

$

Usually ships in 3-12 days

0

15

Tecumseh 34854

Ring Set (Std.)

$

$

Not available

15

Tecumseh 34855

Ring Set (.020" OS)

$

$

Not available

15

Tecumseh 34856

Ring Set (.010" OS)

$

$

Not available

16

Tecumseh 27888

Ring-Retaining, Piston Pin

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 31380C

Rod Assy., Connecting (Incl. Ref. #18)

$

$

Not available

18

Tecumseh 650662B

Bolt, Connecting Rod
(Superseded to 650662C)

$3.99

$

Usually ships in 3-12 days

0

21

Tecumseh 34034

Lifter-Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

22

Tecumseh 32144

Camshaft (Mechanical Compression Release)

$

$

Currently unavailable

23

Tecumseh 30684

Gasket-Cover, Cylinder

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$4.49

$

In Stock, Qty 6

0

24

Tecumseh 31552C

Flange Assy., Mounting (Incl. #25,27,34,37,108&110)

$

$

Not available

25

Tecumseh 31355

Screen-Oil Filter

$5.49

$

Usually ships in 3-12 days

0

27

Tecumseh 29117

Screw

$1.99

$

In Stock, only 1 left!

0

28

Tecumseh 31356

Pump, Oil

$12.99

$

Usually ships in 3-12 days

0

29

Tecumseh 28582

Plug-Pipe (Internal Hex, 1/4-18)

$1.99

$

In Stock, only 1 left!

0

34

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, Qty 17

0

35

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

36

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

39

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

47

Tecumseh 28938B

Gasket-Head, Cylinder
(Superseded to 28938C)

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$9.99

$

In Stock, Qty 5

0

48

Tecumseh 30938A

Head, Cylinder (Incl. 3 of No.51)
(Superseded to 36446)

$

$

Not available

51

Tecumseh 650697A

Screw (5/16-18 X 2-1/2)

$1.99

$

In Stock, only 3 left!

0

52

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 13

0

52

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.49

$

In Stock, Qty 13

0

53

Tecumseh 27896

Gasket-Breather
(Superseded to 27896A)

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$1.49

$

In Stock, Qty 10

0

54

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 1 left!

0

55

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, only 3 left!

0

56

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 1 left!

0

57

Tecumseh 27627

Tube-Breather
(Superseded to 35350)

$6.49

$

Usually ships in 3-12 days

0

59

Tecumseh 650128

Screw

$5.49

$

Usually ships in 3-12 days

0

60

Tecumseh 27915

Gasket-Intake
(Superseded to 27915A)

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$5.99

$

In Stock, Qty 20+

0

61

Tecumseh 32632

Pipe-Intake

$26.99

$

Usually ships in 3-12 days

0

62

Tecumseh 29673

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$1.99

$

In Stock, only 3 left!

0

63

Tecumseh 34165

Dipstick, Oil (Incl. Ref. #62)

$9.49

$

In Stock, only 2 left!

0

64

Tecumseh 650378

Screw (T-30, 5/16-18x1-3/32)

$1.99

$

In Stock, only 3 left!

0

65

Tecumseh 26756

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$2.99

$

In Stock, Qty 8

0

66

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

67

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

69

Tecumseh 650372

Screw-Hex Hd.
(Superseded to 650517)

$1.99

$

In Stock, only 1 left!

0

70

Tecumseh 650872

Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

71

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

Usually ships in 3-12 days

0

72

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

73

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

75

Tecumseh 611084

FIywheel
(Superseded to 611085)

$214.99

$

Usually ships in 3-12 days

0

76

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, Qty 5

0

81

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

82

Tecumseh 32181A

Control Assy ., Speed (Incl. Ref. #66, 67 & 81)

$

$

Not available

83

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

84

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$4.49

$

In Stock, Qty 20+

0

85

Tecumseh 650152

Screw

$2.49

$

In Stock, only 3 left!

0

86

Tecumseh 31715

Body-Air Cleaner

$21.99

$

In Stock, Qty 7

0

87

Tecumseh 31691

Bracket

$22.99

$

In Stock, only 1 left!

0

88

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

89

Tecumseh 30727

Element

$7.49

$

In Stock, only 2 left!

0

90

Tecumseh 31588

Plate-Locking

$4.99

$

In Stock, Qty 20+

0

91

Tecumseh 27930

Gasket Exhaust
(Superseded to 35865)

Note: Indicates parts included in Gasket Set, Ref. Num 163.

$2.49

$

In Stock, only 2 left!

0

92

Tecumseh 28269

Muffler

$

$

Not available

93

Tecumseh 650696

Screw Hex Hd.

$3.99

$

In Stock, only 2 left!

0

94

Tecumseh 29536

Baffle Blower Housing

$18.99

$

Usually ships in 3-12 days

0

96

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

98

Tecumseh 32589

Key-Flywheel

$1.49

$

In Stock, only 4 left!

0

102

Tecumseh 31823

Link Governor

$1.99

$

In Stock, only 4 left!

0

103

Tecumseh 31361

Spring Governor

$1.99

$

In Stock, Qty 5

0

104

Tecumseh 30669

Rod, Governor (Incl . Ref . #105)

$7.49

$

In Stock, only 1 left!

0

105

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

106

Tecumseh 31357

Lever-Governor

$1.99

$

In Stock, only 1 left!

0

108

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

109

Tecumseh 31707A

Spacer Assy., Governor (Incl. Ref. #108)

$1.99

$

In Stock, only 2 left!

0

110

Tecumseh 30668

Shaft, Governor

$1.99

$

Usually ships in 3-12 days

0

111

Tecumseh 30591

Gear Assy., Governor (Incl. Ref. #108)

$13.99

$

In Stock, only 1 left!

0

112

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

113

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

114

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

115

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

117

Tecumseh 30622A

Extension-Blower Hsng.

$

$

Not available

119

Tecumseh 650128

Screw

$5.49

$

Usually ships in 3-12 days

0

121

Tecumseh 30688

Screw
(Superseded to 30063)

$1.99

$

In Stock, Qty 20+

0

123

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

124

Tecumseh 8116

Nut

$1.99

$

In Stock, only 4 left!

0

126

Tecumseh 35210

Housing Blower
(Superseded to 35210A)

$

$

Not available

131

Tecumseh 29747B

Screw

$1.99

$

In Stock, Qty 9

0

133

Tecumseh 32125

Cup-Starter
(Superseded to 37966)

$10.99

$

Usually ships in 3-12 days

0

135

Tecumseh 35009

Screen-Starter

$3.99

$

In Stock, only 1 left!

0

137

Tecumseh 29716

Screw

$1.49

$

In Stock, Qty 6

0

139

Tecumseh 34346

Decal-Instruction
(Superseded to 36261)

$

$

Not available

143

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

144

Tecumseh 30962

Line-Fuel

$30.99

$

In Stock, Qty 6

0

150

Tecumseh 32582

Link Governor Spring

$1.99

$

In Stock, only 4 left!

0

155

Tecumseh 30939A

Cover-Head, Cylinder
(Superseded to 30939B)

$

$

Not available

159

Tecumseh 35182

Wire-Ground

$1.99

$

In Stock, only 4 left!

0

161

Tecumseh 632253

Carburetor (Incl. Ref. #65)

$138.99

$

In Stock, only 2 left!

0

162

Tecumseh 590420A

tarter-Rewind

$68.99

$

In Stock, only 1 left!

0

163

Tecumseh 33234A

Gasket Set (Incl. Items Marked)
(Superseded to 33234B)

$26.99

$

Usually ships in 3-12 days
