23267 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) ENGINE AND FRAME ASSEMBLY Parts Diagram

Walk-Behind Mower

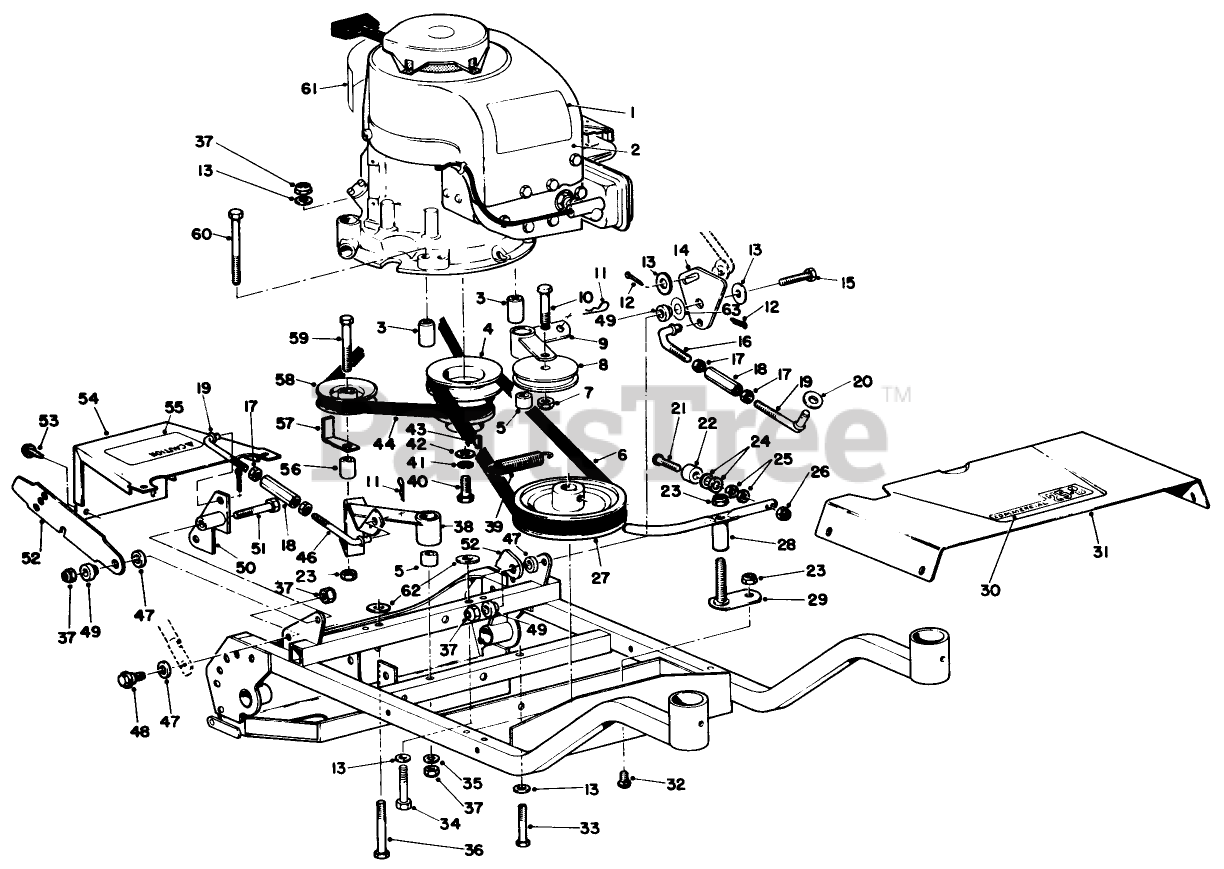

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 23-0810

Decal

$

$

Not available

2

Toro 221-579

Engine

$

$

Currently unavailable

3

Toro 3-8164

ENGINE PIVOT SPACER

$

$

Not available

4

Toro 23-7620

ENGINE PULLEY RO

$

$

Not available

5

Toro 256-77

BUSHING

$3.49

$

Usually ships in 3-6 days

0

6

Toro 7-0354

BELT

$

$

Not available

7

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

8

Toro 244-63

PULLEY B

$

$

Not available

9

Toro 5-2127

Arm and Bushing (Incl. Ref. #5)

$

$

Not available

10

Toro 3-7283

Screw

$

$

Not available

11

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

12

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 22-6020

CUTTR BELLCRANK WA R

$

$

Not available

15

Toro 32104-34

5/16-18 X 1-3/4 SCREW

$

$

Not available

16

Toro 5-2142

CUTTER LINK

$

$

Not available

17

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 9

0

18

Toro 3-6481

CONTROL ROD SLEEVE

$

$

Not available

19

Toro 29-4830

LINK CONTROL ROD

$

$

Not available

20

Toro 3-3846

WASHER

$

$

Not available

21

Toro 3251-7

10-24X1-1/2 RND HD MS

$

$

Not available

22

Toro 237-45

BUMPER

$

$

Not available

23

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

24

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

26

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

27

Toro 26-4020

DECK PULLEY R

$

$

Not available

28

Toro 5-2126

Brake Arm

$

$

Not available

29

Toro 3-8306

Base Pivot

$

$

Not available

30

Toro 40-6610

DECAL

$

$

Not available

31

Toro 5-2148

FRONT SHROUD R

$

$

Not available

32

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

33

Toro 322-23

SCREW-HH
(Superseded to 321-9)

$4.99

$

In Stock, only 2 left!

0

34

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 7

0

35

Toro 3253-23

WASHER-LOCK/SP

$4.99

$

In Stock, only 3 left!

0

36

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

37

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

38

Toro 5-2147

Arm and Bushing (Incl. Ref #5)

$

$

Not available

39

Toro 3-8135

EXTENSION SPRING

$

$

Currently unavailable

40

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

41

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

42

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

43

Toro 3257-17

KEY-WOODRUFF

$5.49

$

In Stock, only 1 left!

0

44

Toro 3-2733

V-BELT

$

$

Not available

Toro 8-7719

Loose Parts

Note: Not illustrated

$

$

Not available

46

Toro 29-6740

Control Rod

$

$

Not available

47

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

48

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

49

Toro 3-7811

PIVOT

$

$

Not available

50

Toro 29-6690

TRACT BELLCRANK WA R

$

$

Not available

51

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

52

Toro 43-1550

HANDLE LATCH

$

$

Not available

53

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

54

Toro 5-3482

Rear Shroud

$

$

Not available

55

Toro 29-4720

DECAL SAF INST

$

$

Not available

56

Toro 23-7610

SPACER

$

$

Not available

57

Toro 3-6471

Hook

$

$

Not available

58

Toro 3-4243

IDLER PULLEY R

$

$

Not available

59

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

60

Toro 322-22

SCREW-HH
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

61

Toro 29-5570

Decal

$

$

Not available

62

Toro 4-2320

WASHER

$

$

Not available

63

Toro 5-0744

WASHER

$

$

Not available

Toro 23-8960

Muffler

Note: Not illustrated

$

$

Not available

Toro 23-8960

Muffler

Note: Spark Arrestor Muffler (Optional Equipment)

$

$

Not available

Toro 3290-154

3/4-14 CONDUIT NUT

Note: Spark Arrestor Muffler (Optional Equipment)

$

$

Not available

Toro 3290-154

3/4-14 CONDUIT NUT

Note: Not illustrated

$

$

Not available

Toro 2811-6

45deg. Steel Elbow

Note: Not illustrated

$

$

Not available

Toro 2811-6

45deg. Steel Elbow

Note: Spark Arrestor Muffler (Optional Equipment)

$

$

Not available
