23267 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

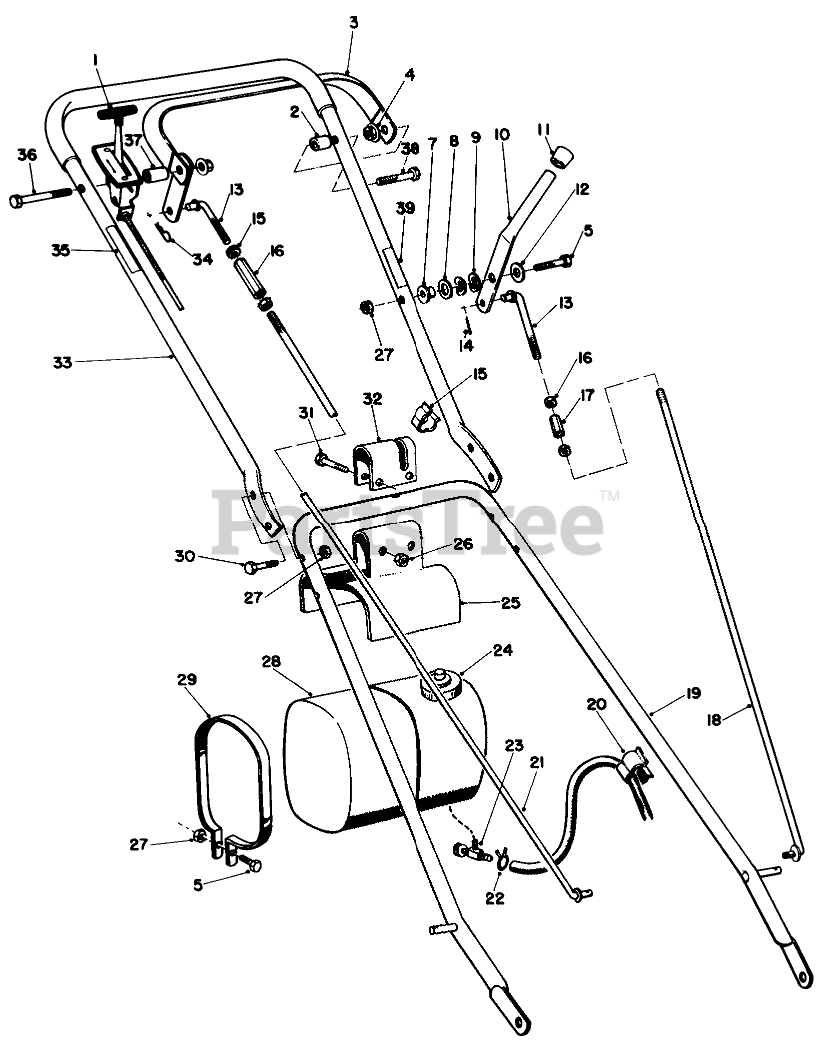

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 29-6720

Control, Throttle

$

$

Not available

2

Toro 25-2980

Spacer

$

$

Not available

3

Toro 29-4700

Control Bail

$

$

Not available

4

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

5

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 3-7811

PIVOT

$

$

Not available

8

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

9

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

10

Toro 5-2154

CUTTER HANDLE R

$

$

Not available

11

Toro 5-0747

Button Plug

$

$

Not available

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 29-4830

LINK CONTROL ROD

$

$

Not available

14

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

15

Toro 5-0748

Clamp

$

$

Not available

16

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

17

Toro 3-6481

CONTROL ROD SLEEVE

$

$

Not available

18

Toro 22-6030

CUTTER CONTROL ROD

$

$

Not available

19

Toro 26-7830

LOWER HANDLE WA

$227.99

$

Usually ships in 3-6 days

0

20

Toro 3-5181

CLAMP

$

$

Not available

21

Toro 29-4850

CONTROL ROD

$

$

Not available

22

Toro 2210-87

Clamp
(Superseded to 2412-36)

$2.49

$

Usually ships in 3-6 days

0

23

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

24

$

$

Not available

25

Toro 3-6345

FUEL TANK BRACKET

$

$

Not available

26

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

27

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

28

Toro 222-14

Tank
(Superseded to 52-2331)

$408.99

$

Usually ships in 3-6 days

0

29

Toro 3-6346

TANK STRAP

$

$

Not available

30

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

31

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 22-5060

Clamp

$

$

Not available

33

Toro 29-6820

Upper Handle

$

$

Not available

34

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

35

Toro 29-9880

Decal-Throttle

$

$

Not available

36

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 29-6750

SLEEVE-PIVOT ROLLED

$

$

Not available

38

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

39

Toro 38-3200

BLADE CONTROL DECAL

$

$

Not available
